Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

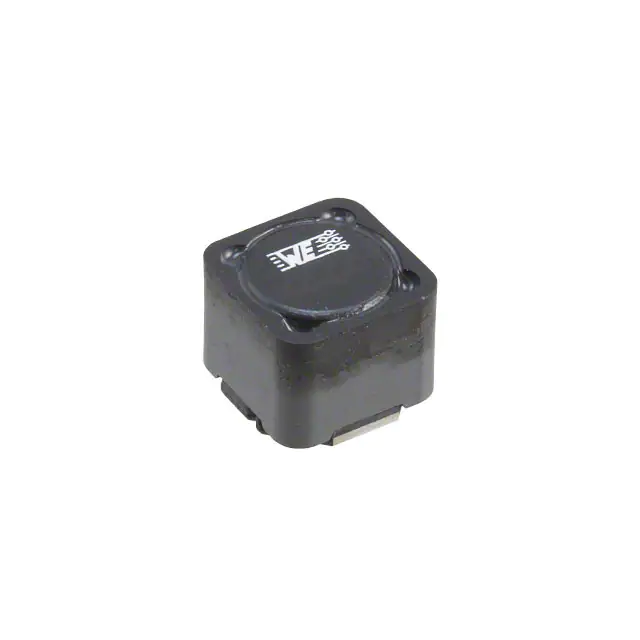

7687709102FIXED IND 1MH 720MA 1.4 OHM SMD Würth Elektronik |
3,965 |
|
Datasheet |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 720 mA | 900mA | - | Shielded | 1.4Ohm Max | 1 mH | - | 1.2MHz | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.413" (10.50mm) |
|
784325055WE-HCIA SMT FLAT WIRE HIGH CURRE Würth Elektronik |
4,694 |
|
Datasheet |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 10 A | 14.3A | - | Shielded | 9.45mOhm Max | 5.2 µH | - | 31MHz | Surface Mount | AEC-Q200 | 0.413" L x 0.394" W (10.50mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.182" (4.63mm) |
|
74439369150WE-XHMI SMT POWER INDUCTOR 15 UH Würth Elektronik |
2,926 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 8.3 A | 16.95A | - | Shielded | 14.8mOhm | 15 µH | - | 11MHz | Surface Mount | AEC-Q200 | 0.457" L x 0.413" W (11.60mm x 10.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.358" (9.10mm) |
|
|
7447019WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
3 |
|
Datasheet |
WE-FI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | Iron Powder | ±20% | 5.1 A | - | Vertical, No Base, 2 PC Pin | Unshielded | 120mOhm Max | 700 µH | - | - | Through Hole | - | 1.496" Dia x 0.677" W (38.00mm x 17.20mm) | - | -40°C ~ 105°C | 10 kHz | - |
|

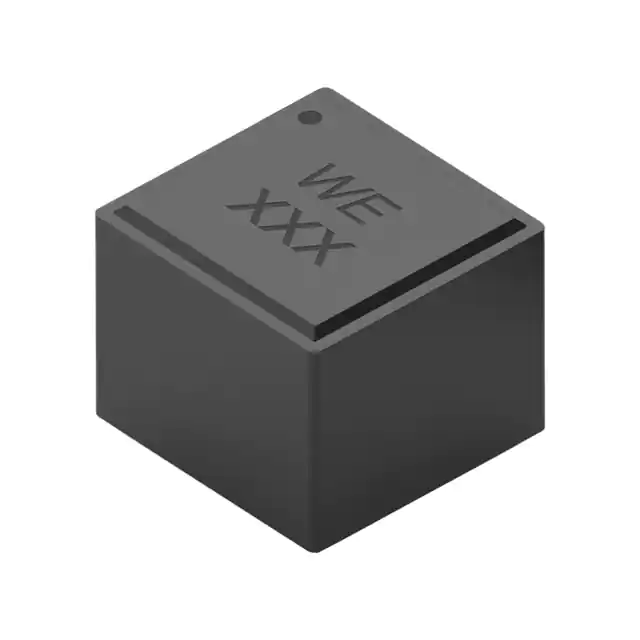

78439370068WE-XHMA SMT POWER INDUCTOR 1510; Würth Elektronik |
11 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 15 A | 40.05A | - | Shielded | 4.1mOhm | 6.8 µH | - | 14MHz | Surface Mount | AEC-Q200 | 0.646" L x 0.606" W (16.40mm x 15.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|

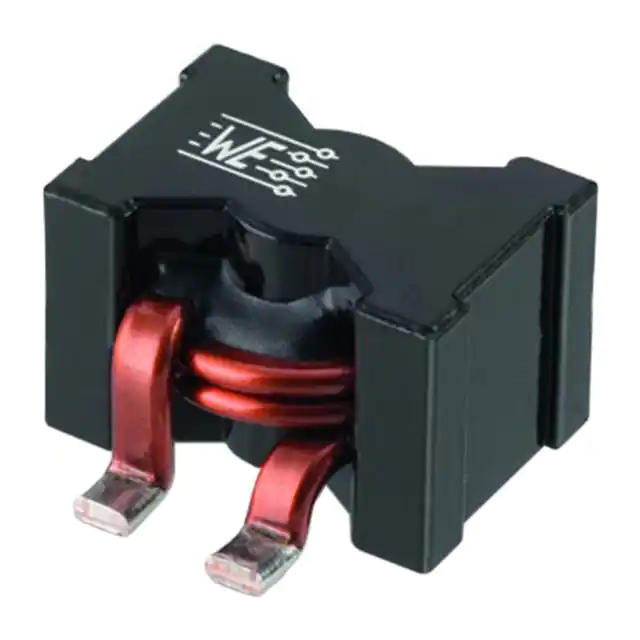

7443630700FIXED IND 7UH 21A 5.61 MOHM SMD Würth Elektronik |
4,029 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±15% | 21 A | 30A | - | Shielded | 5.61mOhm | 7 µH | - | 18MHz | Surface Mount | AEC-Q200 | 0.846" L x 0.827" W (21.50mm x 21.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
74437429203680FIXED IND 68UH 11.2A 22.2MOHM SM Würth Elektronik |
19 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 11.2 A | 10.7A | 2920 | Shielded | 22.2mOhm | 68 µH | - | 5.3MHz | Surface Mount | AEC-Q200 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.807" (20.50mm) |
|
|
74437529203151FIXED IND 150UH 9.2A 30.6MOHM SM Würth Elektronik |
4 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 9.2 A | 7.2A | 2920 | Shielded | 30.6mOhm | 150 µH | - | 3.2MHz | Surface Mount | AEC-Q200 | 1.102" L x 0.984" W (28.00mm x 25.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.807" (20.50mm) |
|
7443640100BFIXED IND 1UH 56A 0.484 MOHM SMD Würth Elektronik |
25 |
|
Datasheet |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 56 A | 125A | - | Shielded | 0.484mOhm Max | 1 µH | - | 53.6MHz | Surface Mount | AEC-Q200 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.728" (18.50mm) |
|

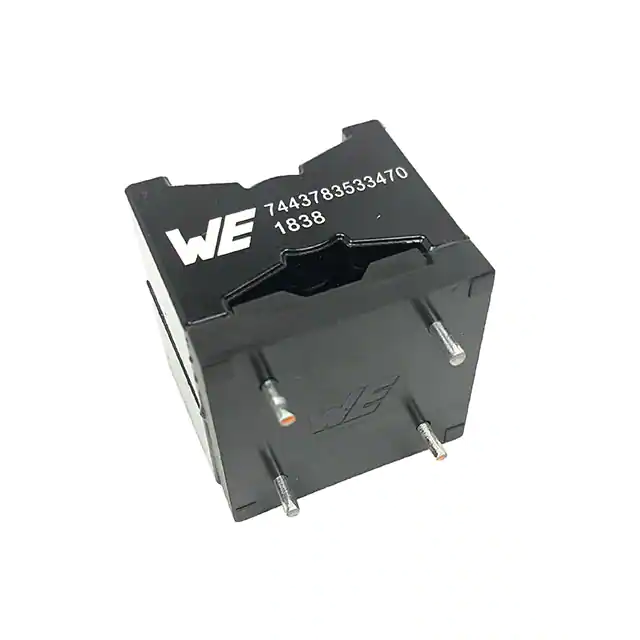

7443783533470FIXED IND 47UH 19.3A 12.98 MOHM Würth Elektronik |
2,799 |
|
Datasheet |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | ±20% | 19.3 A | 32.3A | - | Shielded | 12.98mOhm Max | 47 µH | - | 5.1MHz | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | - | -40°C ~ 125°C | 100 kHz | 1.378" (35.00mm) |
