Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404084102FIXED IND 1MH 360MA 2.87 OHM SMD Würth Elektronik |
21,066 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 360 mA | 450mA | 8040 | Shielded | 2.87Ohm | 1 mH | - | 2MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
|
74404084151FIXED IND 150UH 910MA 478MOHM SM Würth Elektronik |
6,618 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 910 mA | 1.25A | 8040 | Shielded | 478mOhm | 150 µH | - | 5.31MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
|
74404084331FIXED IND 330UH 660MA 865MOHM SM Würth Elektronik |
3,792 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 660 mA | 900mA | 8040 | Shielded | 865mOhm | 330 µH | - | 3.55MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
|
74404084121FIXED IND 120UH 1.15A 347MOHM SM Würth Elektronik |
1,397 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.15 A | 1.45A | 8040 | Shielded | 347mOhm | 120 µH | - | 6MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|

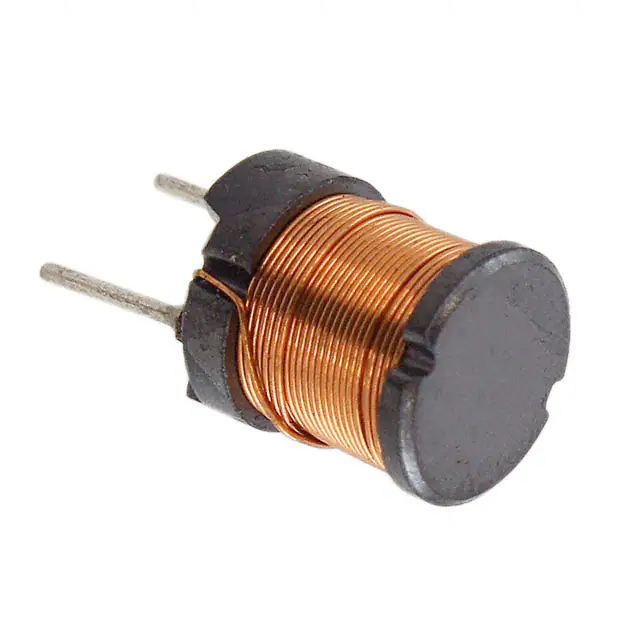

768772102FIXED IND 1MH 500MA 2.08 OHM TH Würth Elektronik |
1,674 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 500 mA | 550mA | - | Unshielded | 2.08Ohm Max | 1 mH | - | 1.8MHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
1.2mm.jpg)
|

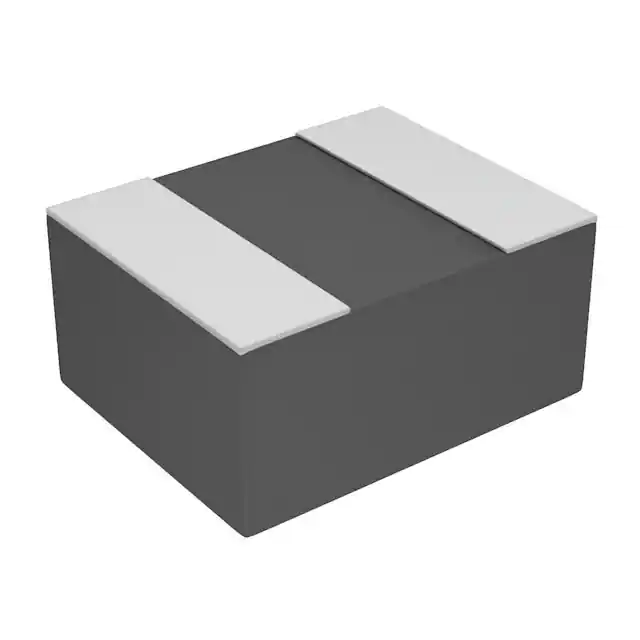

74438324010FIXED IND 1UH 2.8A 60 MOHM SMD Würth Elektronik |
19,261 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 2.8 A | 4.9A | 2512 | Shielded | 60mOhm Max | 1 µH | - | 85MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
74438324047FIXED IND 4.7UH 1A 345 MOHM SMD Würth Elektronik |
4,690 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 1 A | 2.1A | 2512 | Shielded | 345mOhm Max | 4.7 µH | - | 35MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
.jpg)
|
74438343010FIXED IND 1UH 1.8A 104 MOHM SMD Würth Elektronik |
4,398 |
|
Datasheet |
WE-MAPI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±30% | 1.8 A | 3.9A | 2010 | Shielded | 104mOhm Max | 1 µH | - | 99MHz | Surface Mount | AEC-Q200 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
|
74438324100FIXED IND 10UH 700MA 780MOHM SMD Würth Elektronik |
3,453 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 900 mA | 1.4A | 2512 | Shielded | 780mOhm Max | 10 µH | - | 23MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
74438324022FIXED IND 2.2UH 1.6A 141MOHM SMD Würth Elektronik |
3,219 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 1.6 A | 2.9A | 2512 | Shielded | 141mOhm Max | 2.2 µH | - | 57MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
