Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
701014330FIXED IND 3.3UH 35A 1.1 MOHM SMD Würth Elektronik |
3,577 |
|
Datasheet |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 35 A | 40A | - | Shielded | 1.1mOhm | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 1.083" L x 1.083" W (27.50mm x 27.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.669" (17.00mm) |
|
|
701014470FIXED IND 4.7UH 35A 1.1 MOHM SMD Würth Elektronik |
2,625 |
|
Datasheet |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 35 A | 30A | - | Shielded | 1.1mOhm | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 1.083" L x 1.083" W (27.50mm x 27.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.669" (17.00mm) |
|
|
701014680FIXED IND 6.8UH 35A 1.1 MOHM SMD Würth Elektronik |
3,397 |
|
Datasheet |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 35 A | 20A | - | Shielded | 1.1mOhm | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 1.083" L x 1.083" W (27.50mm x 27.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.669" (17.00mm) |
|
7444211415150FIXED IND 15UH 5.8A 14.6MOHM TH Würth Elektronik |
4,643 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | ±20% | 5.8 A | 9.5A | - | Unshielded | 14.6mOhm | 15 µH | - | 13MHz | Through Hole | - | 0.610" L x 0.551" W (15.50mm x 14.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.630" (16.00mm) |
|

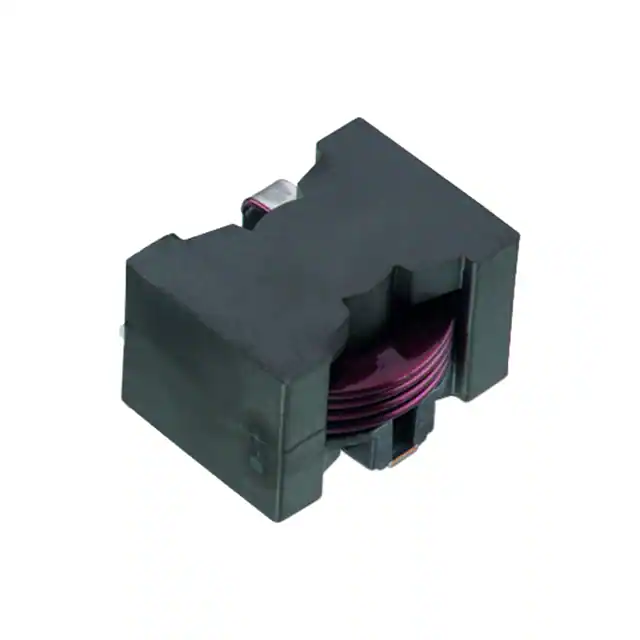

78436432100FIXED IND 10UH 38A 1.1 MOHM SMD Würth Elektronik |
12 |
|
Datasheet |
WE-HCFA | Nonstandard | Tray | Obsolete | Wirewound | - | ±15% | 38 A | 14A | - | Shielded | 1.1mOhm Max | 10 µH | - | 18MHz | Surface Mount | AEC-Q200 | 1.083" L x 1.083" W (27.50mm x 27.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.669" (17.00mm) |
|
S14100036FIXED IND 56UH 17A 8.5 MOHM TH Würth Elektronik |
3,189 |
|
Datasheet |
WE-LCB | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 17 A | - | - | Unshielded | 8.5mOhm Max | 56 µH | - | - | Through Hole | - | 1.417" L x 0.906" W (36.00mm x 23.00mm) | - | -40°C ~ 125°C | 100 kHz | 1.378" (35.00mm) |
|
S14100035FIXED IND 307UH 7A 65 MOHM TH Würth Elektronik |
3,013 |
|
Datasheet |
WE-LCB | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 7 A | - | - | Unshielded | 65mOhm Max | 307 µH | - | - | Through Hole | - | 1.772" L x 0.906" W (45.00mm x 23.00mm) | - | -40°C ~ 125°C | 100 kHz | 1.654" (42.00mm) |
|

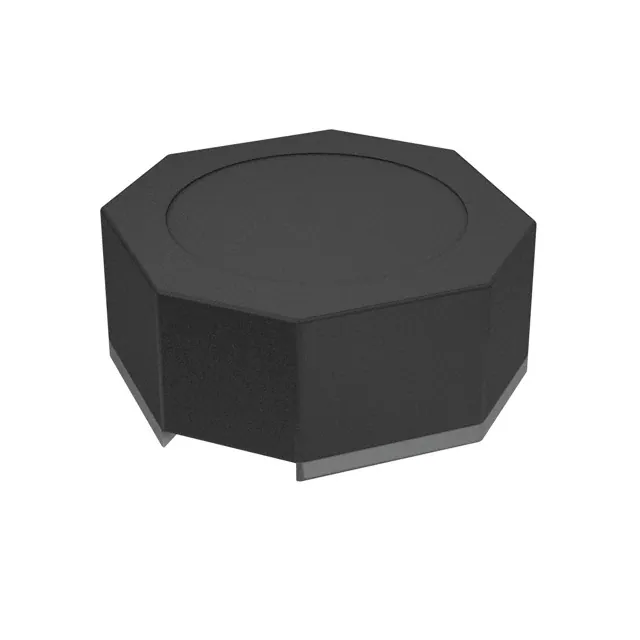

744028100FIXED IND 10UH 600MA 670MOHM SMD Würth Elektronik |
2,921 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 600 mA | 450mA | 2828 | Shielded | 670mOhm Max | 10 µH | - | 45MHz | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
744028150FIXED IND 15UH 450MA 830MOHM SMD Würth Elektronik |
3,150 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 450 mA | 350mA | 2828 | Shielded | 830mOhm Max | 15 µH | - | 37MHz | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
744028220FIXED IND 22UH 350MA 1.48OHM SMD Würth Elektronik |
3,095 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 350 mA | 270mA | 2828 | Shielded | 1.48Ohm Max | 22 µH | - | 25MHz | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
