Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

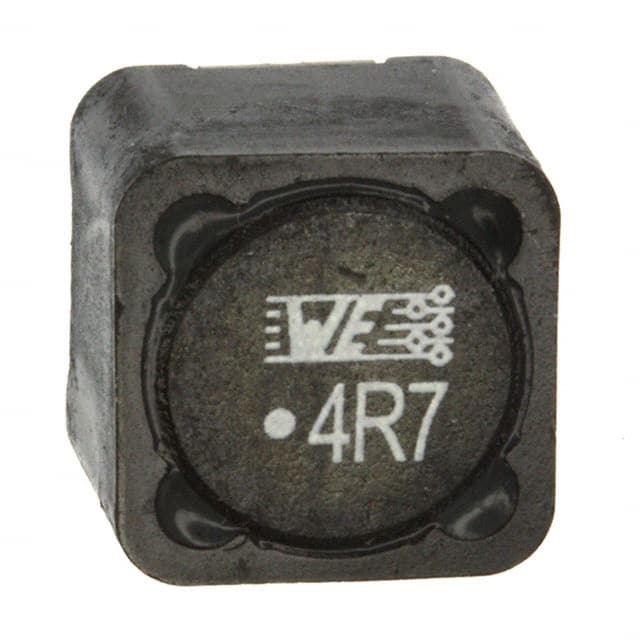

7447709004FIXED IND 4.7UH 9.3A 11 MOHM SMD Würth Elektronik |
3,261 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.3 A | 13A | Shielded | 11mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
74437368150FIXED IND 15UH 4.1A 0.045OHM SMD Würth Elektronik |
2,954 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 15 µH | ±20% | 4.1 A | 11.8A | Shielded | 45mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

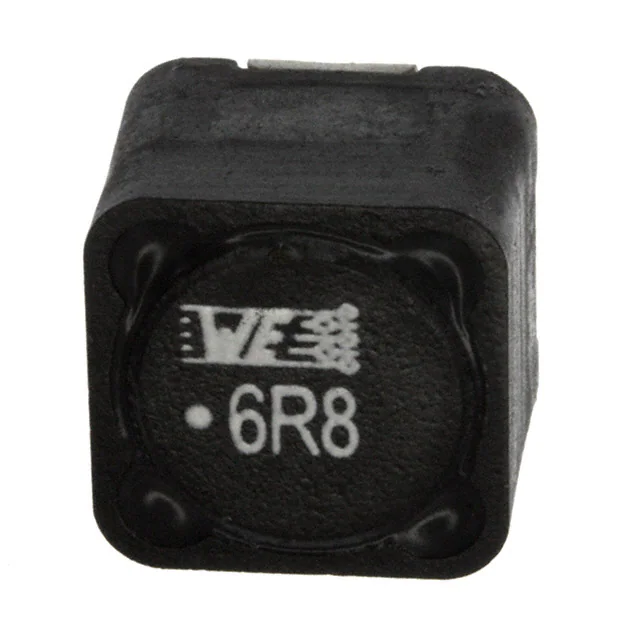

7447709006FIXED IND 6.8UH 8.4A 14 MOHM SMD Würth Elektronik |
1,959 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 8.4 A | 12.8A | Shielded | 14mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
|
74437368068FIXED IND 6.8UH 6A 0.0233OHM SMD Würth Elektronik |
1,943 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 6 A | 17.4A | Shielded | 23.3mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
74437368330FIXED IND 33UH 2.6A 0.112OHM SMD Würth Elektronik |
1,863 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 33 µH | ±20% | 2.6 A | 7.4A | Shielded | 112mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
74437368022FIXED IND 2.2UH 10A 0.007OHM SMD Würth Elektronik |
1,809 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 10 A | 38.7A | Shielded | 7mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
74437368220FIXED IND 22UH 3.5A 0.074OHM SMD Würth Elektronik |
1,273 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 22 µH | ±20% | 3.5 A | 10.8A | Shielded | 74mOhm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
74437368033FIXED IND 3.3UH 8A 0.0118OHM SMD Würth Elektronik |
1,144 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 8 A | 31.2A | Shielded | 11.8mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

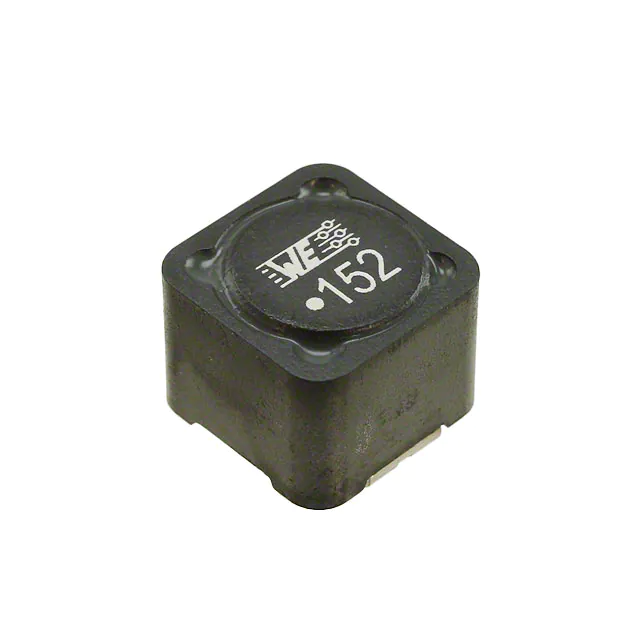

7447709152FIXED IND 1.5MH 650MA 2.3OHM SMD Würth Elektronik |
784 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±20% | 650 mA | 800mA | Shielded | 2.3Ohm Max | - | 900kHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|

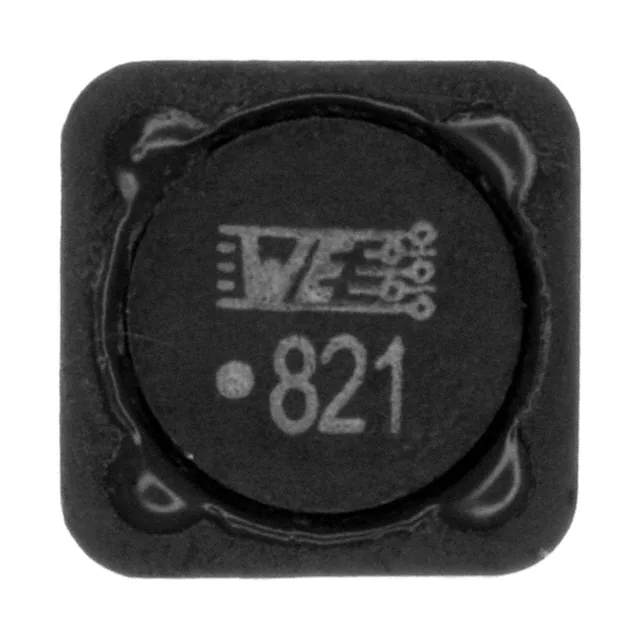

7447709821FIXED IND 820UH 950MA 1 OHM SMD Würth Elektronik |
758 |
|
Datasheet |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 950 mA | 1.1A | Shielded | 1Ohm Max | - | 1.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
