Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

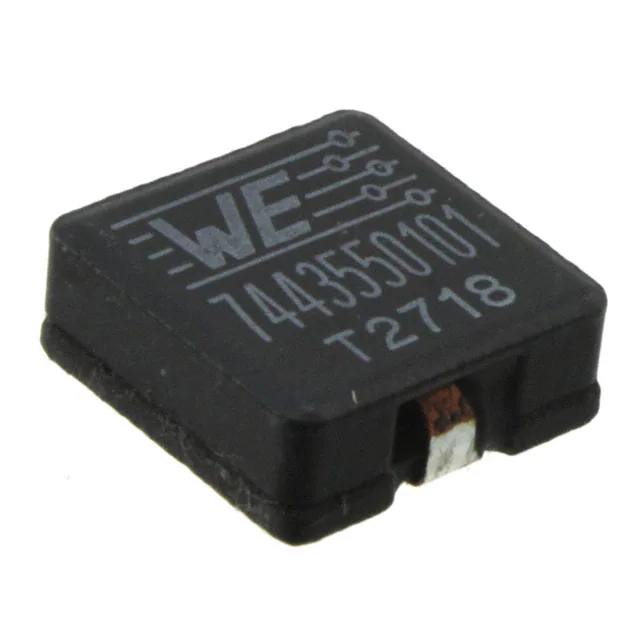

7443550101FIXED IND 10UH 8.5A 14.1MOHM SMD Würth Elektronik |
4,091 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 8.5 A | 10A | Shielded | 14.1mOhm | - | 18MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|

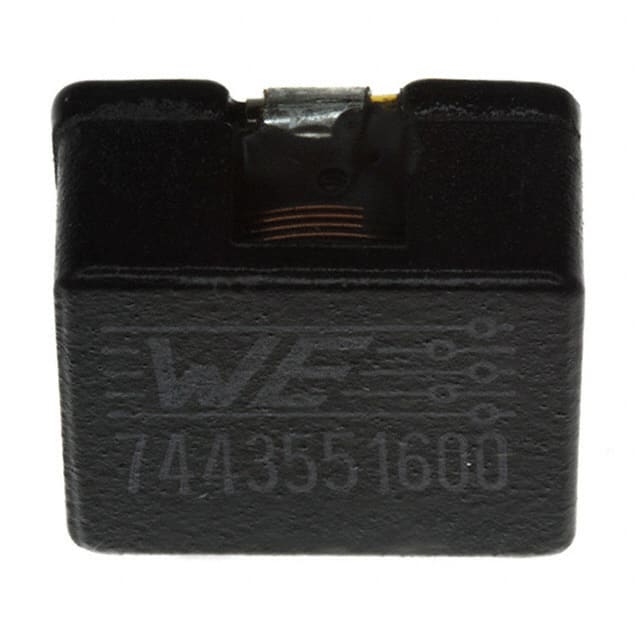

7443551600FIXED IND 6UH 12A 8.4 MOHM SMD Würth Elektronik |
2,712 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6 µH | ±20% | 12 A | 14A | Shielded | 8.4mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

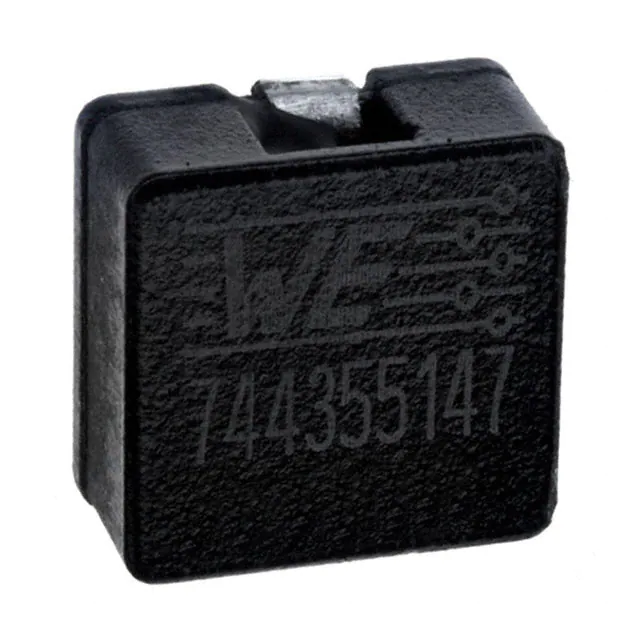

744355147FIXED IND 470NH 30A 0.67MOHM SMD Würth Elektronik |
2,387 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 30 A | 50A | Shielded | 0.67mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

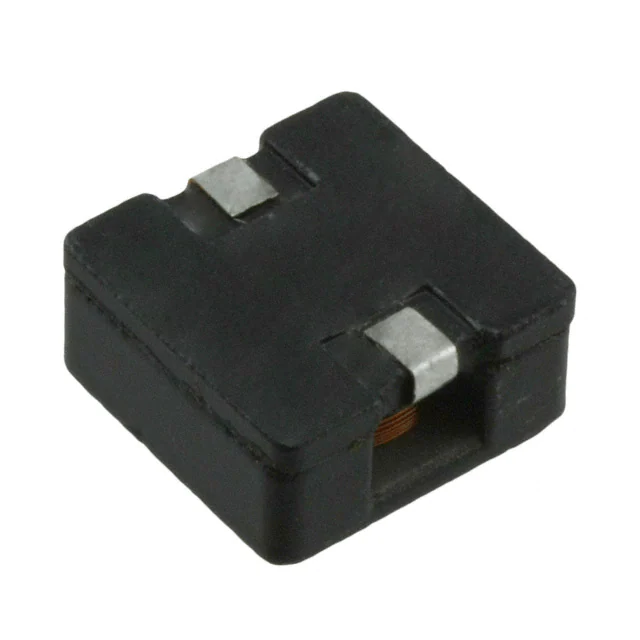

7443551221FIXED IND 22UH 6A 24.7 MOHM SMD Würth Elektronik |
2,230 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 6 A | 6.5A | Shielded | 24.7mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

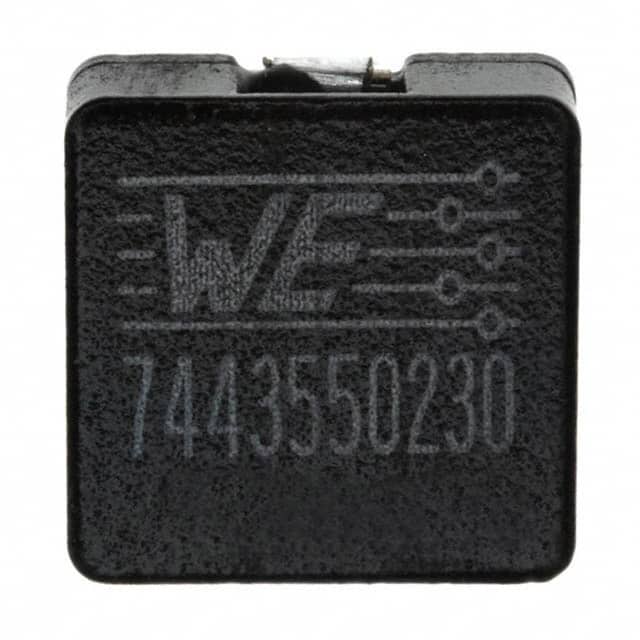

7443550230FIXED IND 2.3UH 17.5A 3.7MOHM SM Würth Elektronik |
1,998 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.3 µH | ±20% | 17.5 A | 17A | Shielded | 3.7mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|

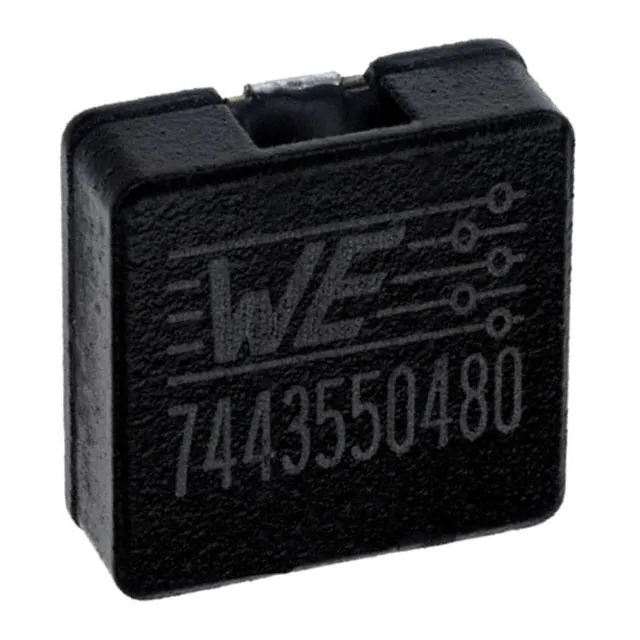

7443550480FIXED IND 4.8UH 11A 10.5MOHM SMD Würth Elektronik |
1,826 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.8 µH | ±20% | 11 A | 13A | Shielded | 10.5mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|

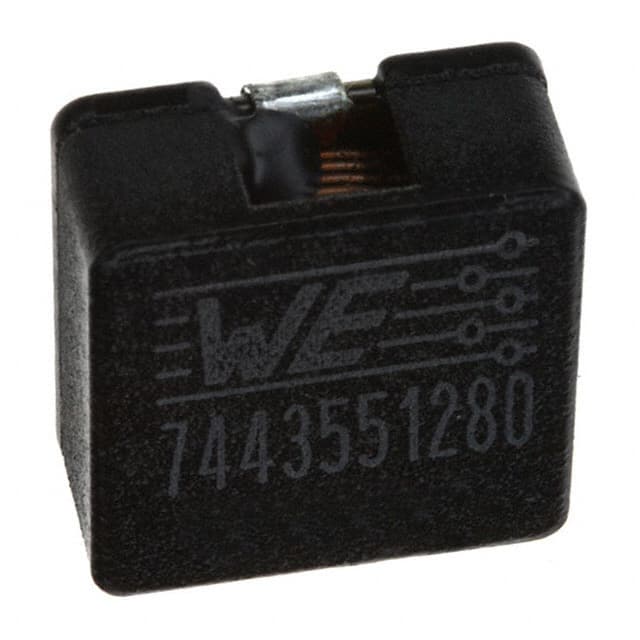

7443551280FIXED IND 2.8UH 20A 3.3 MOHM SMD Würth Elektronik |
1,750 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±20% | 20 A | 17.5A | Shielded | 3.3mOhm | - | 35MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

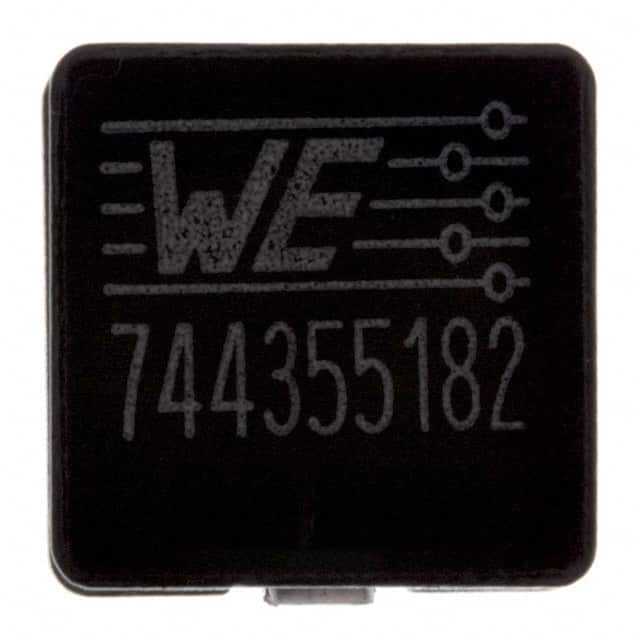

744355182FIXED IND 820NH 27A 0.9 MOHM SMD Würth Elektronik |
1,544 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±20% | 27 A | 35A | Shielded | 0.9mOhm | - | 72MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

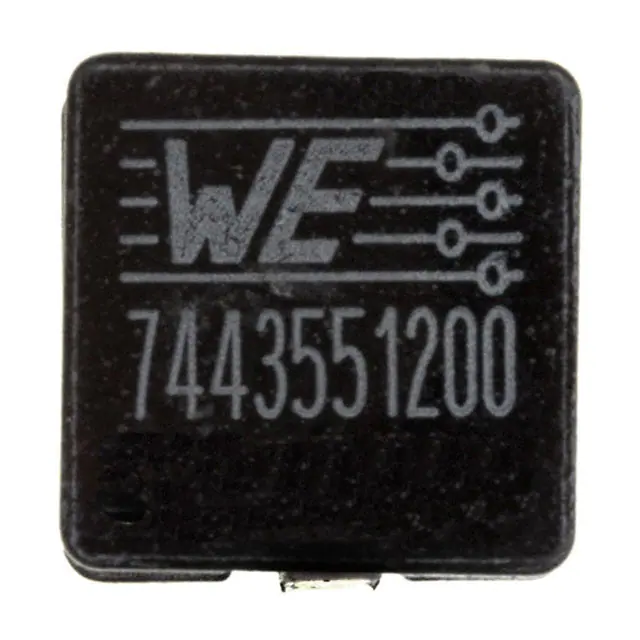

7443551200FIXED IND 2UH 23A 2.6 MOHM SMD Würth Elektronik |
1,302 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2 µH | ±20% | 23 A | 22A | Shielded | 2.6mOhm | - | 45MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|

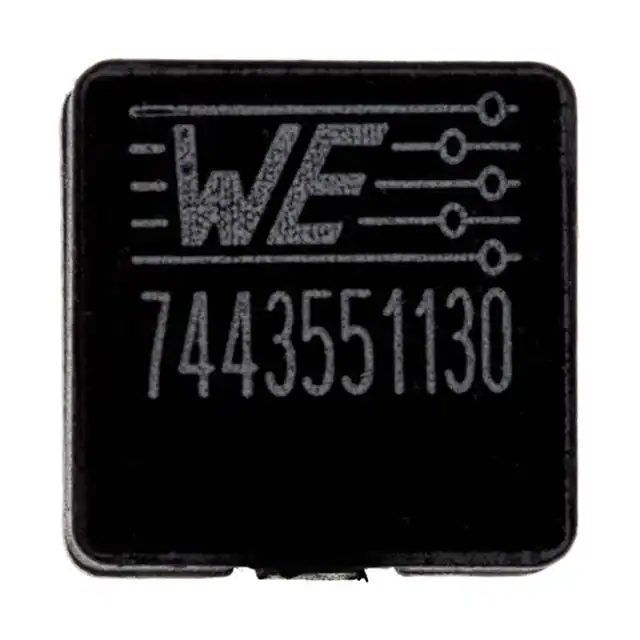

7443551130FIXED IND 1.3UH 25A 1.8 MOHM SMD Würth Elektronik |
1,183 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.3 µH | ±20% | 25 A | 25A | Shielded | 1.8mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
