Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH104RNP-101NCFIXED IND 100UH 1.25A 304MOHM SM |
2,550 |
|
Datasheet |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 1.25 A | 1.35A | - | Shielded | 304mOhm Max | 100 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
IHLM2525CZER1R0M01FIXED IND 1UH 11A 10 MOHM SMD |
1,933 |
|
Datasheet |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 11 A | 22A | - | Shielded | 10mOhm Max | 1 µH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SPM7054VC-470M-DFIXED IND 47UH 2.6A 0.186OHM SMD |
1,914 |
|
Datasheet |
SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.6 A | 5.3A | 7054 | Shielded | 186mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
ASPIAIG-F6050-4R7M-TFIXED IND 4.7UH 8.5A 18.4MOHM SM |
1,820 |
|
Datasheet |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 8.5 A | 8A | 6050 | Shielded | 18.4mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
P0250.104NLTFIXED IND 100UH 1.8A 190MOHM SMD |
1,520 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 1.8 A | 3A | - | Unshielded | 190mOhm Max | 100 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
|
DRA74-3R3-RFIXED IND 3.3UH 4.16A 16MOHM SMD |
13,868 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 4.16 A | 5.41A | - | Shielded | 16mOhm | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 165°C | 100 kHz | 0.171" (4.35mm) |
|
B82462G4102M000FIXED IND 1UH 3.4A 16 MOHM SMD |
5,622 |
|
Datasheet |
B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.4 A | 4.4A | - | Shielded | 16mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.248" L x 0.248" W (6.30mm x 6.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
FP1007R3-R12-RFIXED IND 115NH 61A 0.29MOHM SMD |
4,108 |
|
Datasheet |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 61 A | 94A | - | Unshielded | 0.29mOhm | 115 nH | - | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.295" (7.50mm) |
|
|
CDRH104RNP-2R5NCFIXED IND 2.5UH 6.1A 10.5MOHM SM |
2,417 |
|
Datasheet |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 6.1 A | 7.5A | - | Shielded | 10.5mOhm Max | 2.5 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
|
P0250.333NLTFIXED IND 33UH 3A 66 MOHM SMD |
2,228 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 3 A | 5.5A | - | Unshielded | 66mOhm Max | 33 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
|
SRP5050FA-150M1IND,6X5.7X4.8MM,15UH20%,4A,SHD |
1,285 |
|
Datasheet |
SRP5050FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4 A | 5.5A | - | Shielded | 66mOhm Max | 15 µH | - | 9MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
IHLE2525CDER220M5AIHLE-2525CD-5A 22 20% ER E3 |
1,215 |
|
Datasheet |
IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 2.8 A | 2.2A | Nonstandard, 4 Lead | Shielded | 174mOhm Max | 22 µH | - | 8.3MHz | Surface Mount | AEC-Q200 | 0.284" L x 0.280" W (7.21mm x 7.12mm) | - | -55°C ~ 155°C | 100 kHz | 0.132" (3.35mm) |
|

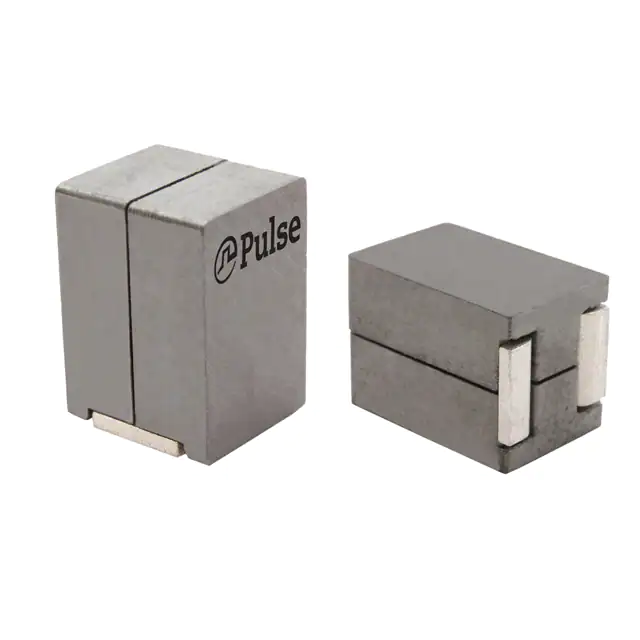

PA5300.121HLTIND PWR BEAD 120NH 115A SMD |
1,162 |
|
Datasheet |
PA5300.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 115 A | 144A | - | Shielded | 0.1mOhm Max | 120 nH | - | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.610" (15.50mm) |
|
SRP1265A-2R2MFIXED IND 2.2UH 22A 4.2 MOHM SMD |
51,259 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 22 A | 37A | - | Shielded | 4.2mOhm Max | 2.2 µH | 20 @ 100kHz | 23MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
SRP1270-100MFIXED IND 10UH 10A 16.8 MOHM SMD |
8,678 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 10 A | 16A | - | Shielded | 16.8mOhm Max | 10 µH | - | 10MHz | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
SRP1265A-6R8MFIXED IND 6.8UH 11.5A 11.5 MOHM |
8,314 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 11.5 A | 18A | - | Shielded | 11.5mOhm Max | 6.8 µH | 20 @ 100kHz | 13MHz | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.252" (6.40mm) |
|
SRP6540-150MFIXED IND 15UH 2.9A 121 MOHM SMD |
6,641 |
|
Datasheet |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 2.9 A | 2.9A | - | Shielded | 121mOhm Max | 15 µH | - | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1270-3R3MFIXED IND 3.3UH 18A 6.6 MOHM SMD |
6,321 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 18 A | 35A | - | Shielded | 6.6mOhm Max | 3.3 µH | - | 20MHz | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
SRP6540-270MFIXED IND 27UH 2A 290 MOHM SMD |
4,059 |
|
Datasheet |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 2 A | 2A | - | Shielded | 290mOhm Max | 27 µH | - | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
IHSR1616ABER33NM01FIXED IND 33NH 37A 1.15 MOHM SMD |
3,070 |
|
Datasheet |
IHSR-1616AB-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 37 A | 41A | - | Shielded | 1.15mOhm | 33 nH | - | 856MHz | Surface Mount | - | 0.180" L x 0.160" W (4.57mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
