Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV25T-R10J-PFFIXED IND 100NH 280MA 800MOHM SM |
3,077 |
|
Datasheet |
NLV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±5% | 280 mA | - | 1008 (2520 Metric) | Unshielded | 800mOhm Max | 100 nH | 20 @ 100MHz | 800MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 105°C | 100 MHz | 0.075" (1.90mm) |
|
LQW18ASR22G00DFIXED IND 220NH 200MA 2.1OHM SMD |
3,023 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 200 mA | - | 0603 | Unshielded | 2.1Ohm Max | 220 nH | 25 @ 100MHz | 900MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 100 MHz | 0.039" (1.00mm) |
|
MLZ2012N1R5LTD25FIXED IND 1.5UH 900MA 100MOHM SM |
2,650 |
|
Datasheet |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 900 mA | 190mA | 0805 (2012 Metric) | Shielded | 100mOhm | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 2 MHz | 0.041" (1.05mm) |
|
LSQCA201616T100KFIXED IND 10UH 245MA 0.82OHM SMD |
2,629 |
|
Datasheet |
LSQC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 245 mA | - | 0806 | Unshielded | 820mOhm | 10 µH | - | 32MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.071" (1.80mm) |
|
NLCV32T-680K-PFFIXED IND 68UH 140MA 3.64OHM SMD |
2,450 |
|
Datasheet |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±10% | 140 mA | - | 1210 | Unshielded | 3.64Ohm Max | 68 µH | 15 @ 2.52MHz | 12MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.094" (2.40mm) |
|
0805CT-680EGTSFIXED IND 68NH 500MA 400MOHM SMD |
2,406 |
|
Datasheet |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 500 mA | - | 0805 | Unshielded | 400mOhm | 68 nH | 50 @ 500MHz | 1.5GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 200 MHz | 0.041" (1.03mm) |
-1,80mm.jpg)
|
LBC2016T100MFIXED IND 10UH 245MA 820MOHM SMD |
2,246 |
|
Datasheet |
LB, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 245 mA | - | 0806 (2016 Metric) | Unshielded | 820mOhm | 10 µH | - | 32MHz | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -25°C ~ 105°C | 2.52 MHz | 0.071" (1.80mm) |
|
7447860243GWE-MK MULTILAYER CERAMIC SMT IND |
2,112 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±2% | 150 mA | - | 0603 | Unshielded | 2.4Ohm Max | 430 nH | 8 @ 50MHz | 300MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
NLCV25T-2R2M-PFFIXED IND 2.2UH 390MA 650MOHM SM |
2,024 |
|
Datasheet |
NLCV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 390 mA | - | 1008 (2520 Metric) | Unshielded | 650mOhm Max | 2.2 µH | 20 @ 7.96MHz | 95MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 105°C | 7.96 MHz | 0.075" (1.90mm) |
|
|
0805CT-151EGTSFIXED IND 150NH 300MA 800MOHM SM |
1,348 |
|
Datasheet |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 300 mA | - | 0805 | Unshielded | 800mOhm | 150 nH | 40 @ 250MHz | 1.05GHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 150 MHz | 0.041" (1.03mm) |
|
MLF2012DR68MT000FIXED IND 680NH 150MA 600MOHM SM |
1,335 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 150 mA | - | 0805 (2012 Metric) | Shielded | 600mOhm Max | 680 nH | 25 @ 25MHz | 140MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 25 MHz | 0.057" (1.45mm) |
.jpg)
|
LQG15WHR12J02DFIXED IND 120NH 140MA 2.7OHM SMD |
1,251 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±5% | 140 mA | - | 0402 | Unshielded | 2.7Ohm Max | 120 nH | 22 @ 250MHz | 800MHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|

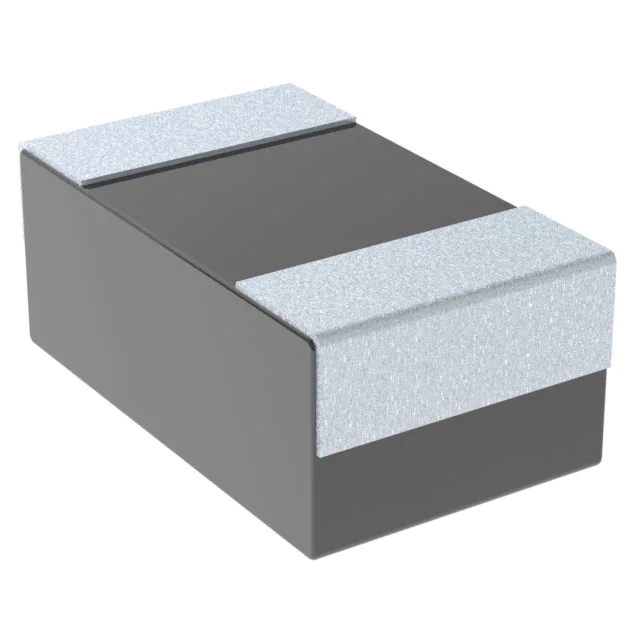

BDCCDG201208R47MFCFIXED IND 0.47UH 3.7A 0.027OHM |
6,000 |
|
Datasheet |
BDCC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.7 A | 4.3A | 0805 | Shielded | 27mOhm Max | 0.47 µH | - | - | Surface Mount | - | 0.079" L x 0.047" W (2.00mm x 1.20mm) | - | -40°C ~ 125°C | 2 MHz | 0.031" (0.80mm) |
.jpg)
|
MLF1608E5R6KTA00FIXED IND 5.6UH 15MA 1.1 OHM SMD |
67,084 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 15 mA | - | 0603 (1608 Metric) | Shielded | 1.1Ohm Max | 5.6 µH | 35 @ 4MHz | 45MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 4 MHz | 0.037" (0.95mm) |
|

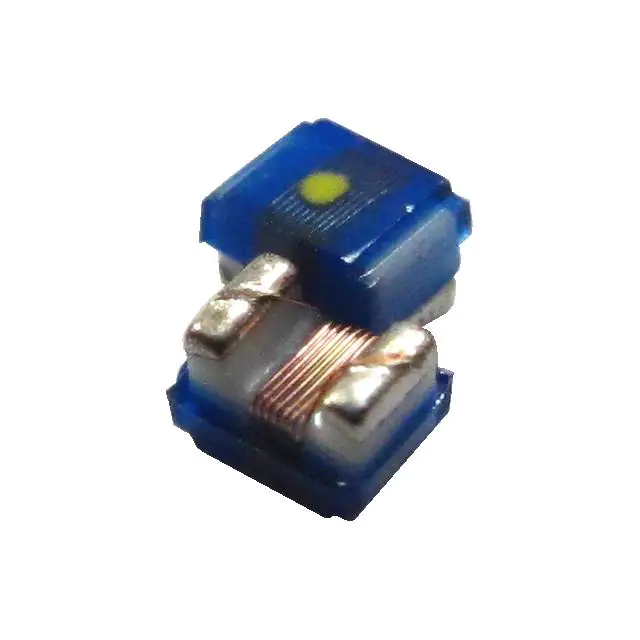

BWCS0012070718NJ00INDUCTOR RF |
39,947 |
|
Datasheet |
BWCS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 420 mA | - | 0402 | Unshielded | 230mOhm Max | 18 nH | 25 @ 250MHz | 3.1GHz | Surface Mount | - | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
BWCS001207071N9B00FIXED IND 1.9NH 1.04A 70MOHM SMD |
39,697 |
|
Datasheet |
BWCS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±0.1nH | 1.04 A | - | 0402 | Unshielded | 70mOhm Max | 1.9 nH | 16 @ 250MHz | 11.3GHz | Surface Mount | - | 0.047" L x 0.028" W (1.19mm x 0.70mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
BWCS001207078N2J00INDUCTOR RF |
39,500 |
|
Datasheet |
BWCS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 680 mA | - | 0402 | Unshielded | 100mOhm Max | 8.2 nH | 22 @ 250MHz | 4.4GHz | Surface Mount | - | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
BWCS001207073N3H00FIXED IND 3.3NH 840MA 66MOHM SMD |
38,877 |
|
Datasheet |
BWCS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±3% | 840 mA | - | 0402 | Unshielded | 66mOhm Max | 3.3 nH | 19 @ 250MHz | 7GHz | Surface Mount | - | 0.047" L x 0.028" W (1.19mm x 0.70mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
LQG15HH3N9C02DFIXED IND 3.9NH 750MA 0.14OHM SM |
29,744 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | ±0.2nH | 750 mA | - | 0402 (1005 Metric) | Unshielded | 140mOhm Max | 3.9 nH | 8 @ 100MHz | 6GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
MLG1005S39NHTD25FIXED IND 39NH 250MA 1 OHM SMD |
24,450 |
|
Datasheet |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±3% | 250 mA | - | 0402 (1005 Metric) | Unshielded | 1Ohm Max | 39 nH | - | 1.2GHz | Surface Mount | AEC-Q200 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
