Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS160808-R82KFIXED IND 820NH 100MA 1.4OHM SMD Bourns Inc. |
9,843 |
|
Datasheet |
CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±10% | 100 mA | - | Shielded | 1.4Ohm Max | 30 @ 25MHz | 75MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CS160808-R47KFIXED IND 470NH 150MA 700MOHM SM Bourns Inc. |
4,171 |
|
Datasheet |
CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±10% | 150 mA | - | Shielded | 700mOhm Max | 30 @ 25MHz | 105MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-,95.jpg)
|
CVH160808-R47MFIXED IND 470NH 1.2A 125MOHM SMD Bourns Inc. |
2,863 |
|
Datasheet |
CVH160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.2 A | - | Shielded | 125mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-,55.jpg)
|

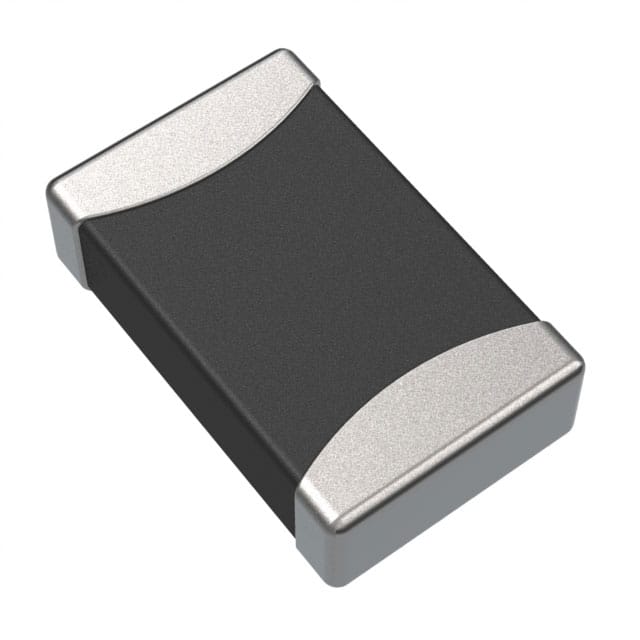

CVH201205-2R2MFIXED IND 2.2UH 600MA 412.5 MOHM Bourns Inc. |
10,528 |
|
Datasheet |
CVH201205 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 600 mA | - | Shielded | 412.5mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
.JPG)
|

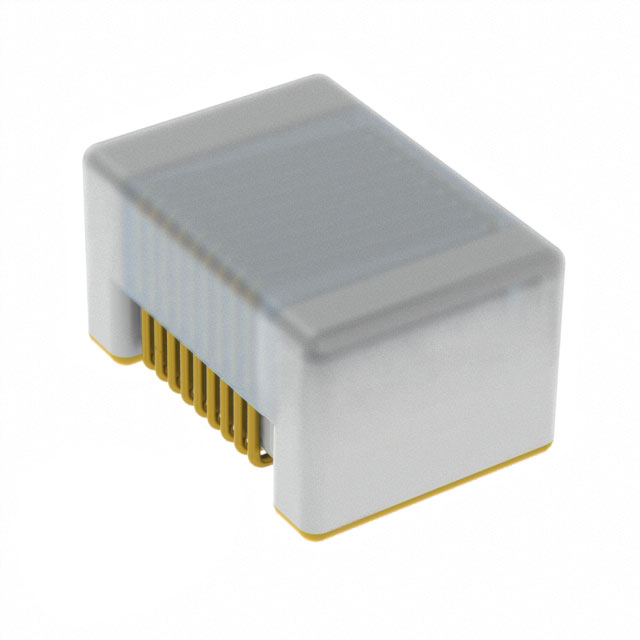

CW161009A-20NJFIXED IND 20NH 700MA 120MOHM SMD Bourns Inc. |
20,285 |
|
Datasheet |
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 20 nH | ±5% | 700 mA | - | Unshielded | 120mOhm Max | 35 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
.JPG)
|

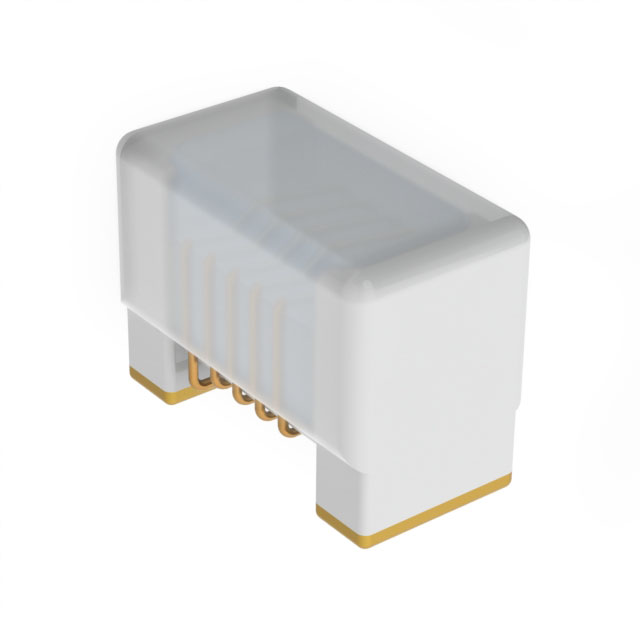

CW105550A-3N9JFIXED IND 3.9NH 840MA 66MOHM SMD Bourns Inc. |
11,917 |
|
Datasheet |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.9 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW105550A-10NJFIXED IND 10NH 480MA 195MOHM SMD Bourns Inc. |
8,888 |
|
Datasheet |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 10 nH | ±5% | 480 mA | - | Unshielded | 195mOhm Max | 23 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
CW105550A-R12JFIXED IND 120NH 110MA 2.66OHM SM Bourns Inc. |
8,000 |
|
Datasheet |
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 120 nH | ±5% | 110 mA | - | Unshielded | 2.66Ohm Max | 20 @ 150MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
SRN2012T-2R2KIND,2X1.2X1.2MM,2.2UH10%,1.04A,S Bourns Inc. |
38,991 |
|
Datasheet |
SRN2012T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 1.04 A | 740mA | Shielded | 180mOhm | 13 @ 7.9MHz | 100MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
|
|
SRN2012T-4R7KIND,2X1.2X1.2MM,4.7UH10%,0.84A,S Bourns Inc. |
8,931 |
|
Datasheet |
SRN2012T | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 840 mA | 520mA | Shielded | 360mOhm | 14 @ 7.9MHz | 65MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
