Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CW201212-4N7JFIXED IND 4.7NH 600MA 60MOHM SMD Bourns Inc. |
4,181 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±5% | 600 mA | - | Unshielded | 60mOhm | 60 @ 1GHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW201212-10NJFIXED IND 10NH 600MA 80 MOHM SMD Bourns Inc. |
3,990 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 600 mA | 1.02A | Unshielded | 80mOhm | 60 @ 500MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|

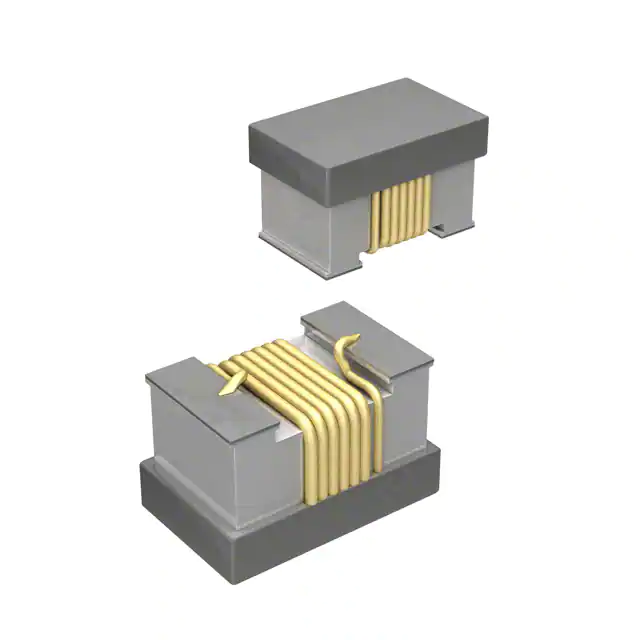

CW160808-22NJFIXED IND 22NH 700MA 190MOHM SMD Bourns Inc. |
3,948 |
|
Datasheet |
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 22 nH | ±5% | 700 mA | - | Unshielded | 190mOhm | 35 @ 250MHz | 3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
CW201212-15NJFIXED IND 15NH 600MA 80 MOHM SMD Bourns Inc. |
3,701 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 600 mA | - | Unshielded | 80mOhm | 60 @ 500MHz | 3.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW201212-22NJFIXED IND 22NH 600MA 100MOHM SMD Bourns Inc. |
3,473 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 600 mA | - | Unshielded | 100mOhm | 60 @ 500MHz | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW160808-12NJFIXED IND 12NH 700MA 130MOHM SMD Bourns Inc. |
3,260 |
|
Datasheet |
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 12 nH | ±5% | 700 mA | - | Unshielded | 130mOhm | 30 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
CW201212-R15JFIXED IND 150NH 400MA 670MOHM SM Bourns Inc. |
3,220 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 400 mA | - | Unshielded | 670mOhm | 50 @ 250MHz | 950MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
PM0603-82NJ-RCFIXED IND 82NH 400MA 540MOHM SMD Bourns Inc. |
3,063 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 82 nH | ±5% | 400 mA | - | Unshielded | 540mOhm | 34 @ 250MHz | 1.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
PM0603-10NJ-RCFIXED IND 10NH 700MA 130MOHM SMD Bourns Inc. |
2,869 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 10 nH | ±5% | 700 mA | - | Unshielded | 130mOhm | 30 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
CW201212-R10JFIXED IND 100NH 400MA 430MOHM SM Bourns Inc. |
2,263 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 400 mA | - | Unshielded | 430mOhm | 60 @ 500MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
