Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1038A-4R7MFIXED IND 4.7UH 10A 15.5MOHM SMD Bourns Inc. |
6,738 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 10 A | 17A | Shielded | 15.5mOhm Max | 20 @ 100kHz | 16MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038A-330MFIXED IND 33UH 3.5A 112 MOHM SMD Bourns Inc. |
1,565 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | 20 @ 100kHz | 6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038A-150MFIXED IND 15UH 6.25A 45 MOHM SMD Bourns Inc. |
372 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 15 µH | ±20% | 6.25 A | 10A | Shielded | 45mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|

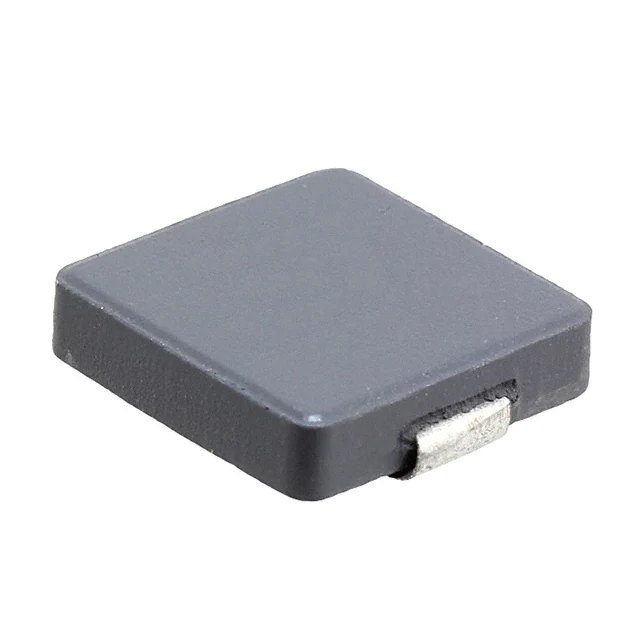

SRP1238A-2R2MFIXED IND 2.2UH 16A 8 MOHM SMD Bourns Inc. |
4,439 |
|
Datasheet |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 16 A | 29A | Shielded | 8mOhm Max | 20 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|

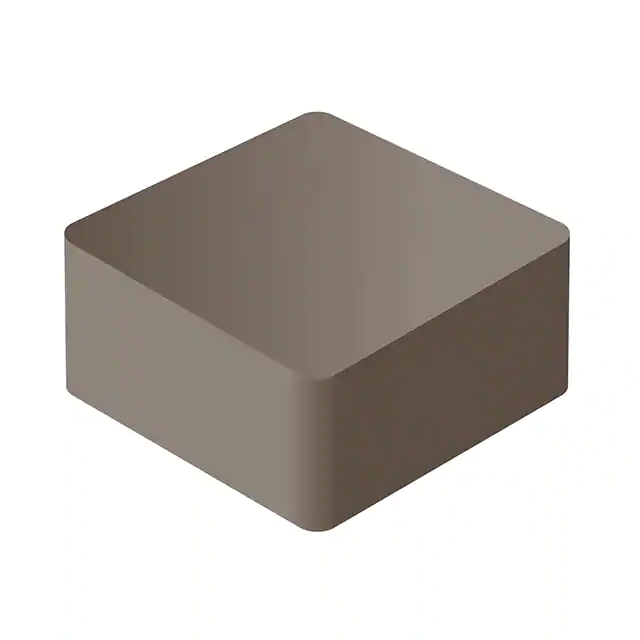

SRP4030FA-3R3MFIXED IND 3.3UH 6.6A 28.6MOHM SM Bourns Inc. |
2,673 |
|
Datasheet |
SRP4030FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6.6 A | 4.8A | Shielded | 28.6mOhm Max | 10 @ 100kHz | 28MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.118" (3.00mm) |
|
|
SRP4030FA-4R7MFIXED IND 4.7UH 5.1A 44.1MOHM SM Bourns Inc. |
4,157 |
|
Datasheet |
SRP4030FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 5.1 A | 4.2A | Shielded | 44.1mOhm Max | 10 @ 100kHz | 27MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.118" (3.00mm) |
|
SRP5030CA-3R3MFIXED IND 3.3UH 8.1A 23.1MOHM SM Bourns Inc. |
2,158 |
|
Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 8.1 A | 9.5A | Shielded | 23.1mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|

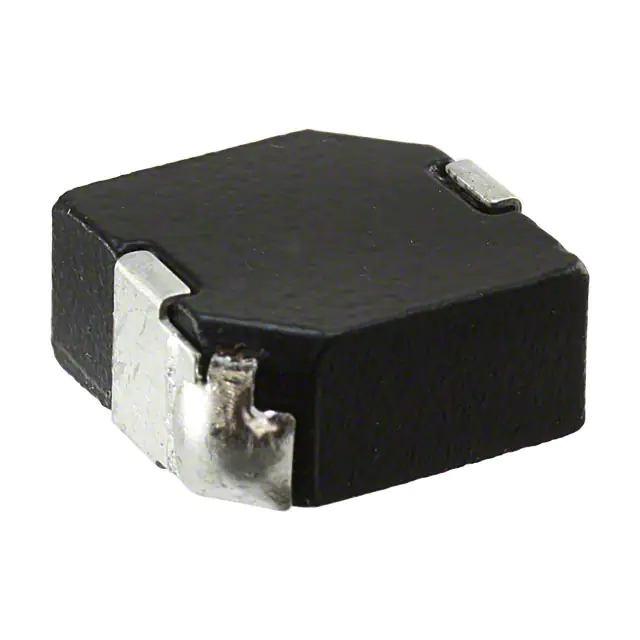

SRP1270-4R7MFIXED IND 4.7UH 15A 11.2MOHM SMD Bourns Inc. |
11,818 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±20% | 15 A | 30A | Shielded | 11.2mOhm Max | - | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|

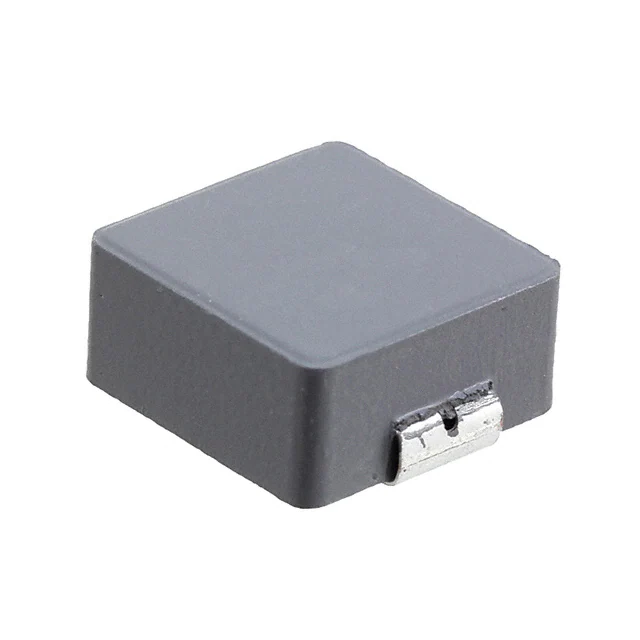

SRP1265A-100MFIXED IND 10UH 10A 16.5 MOHM SMD Bourns Inc. |
20,107 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 10 A | 15.5A | Shielded | 16.5mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1265A-4R7MFIXED IND 4.7UH 13.5A 8.4MOHM SM Bourns Inc. |
3,376 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 13.5 A | 28A | Shielded | 8.4mOhm Max | 20 @ 100kHz | 17MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
