Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CW100505-68NJFIXED IND 68NH 180MA 1.12OHM SMD Bourns Inc. |
23,675 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 180 mA | - | 0402 (1005 Metric) | Unshielded | 1.12Ohm | 68 nH | 22 @ 200MHz | 1.62GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -55°C ~ 125°C | 200 MHz | 0.024" (0.60mm) |
|
RLB0812-103KLFIXED IND 10MH 34MA 39 OHM TH Bourns Inc. |
23,064 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 34 mA | - | - | Unshielded | 39Ohm Max | 10 mH | 60 @ 79.6kHz | 360kHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 79.6 kHz | 0.433" (11.00mm) |
|
|
CW100505-3N9JFIXED IND 3.9NH 840MA 66MOHM SMD Bourns Inc. |
19,426 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 840 mA | - | 0402 (1005 Metric) | Unshielded | 66mOhm | 3.9 nH | 20 @ 250MHz | 5.8GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -55°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|

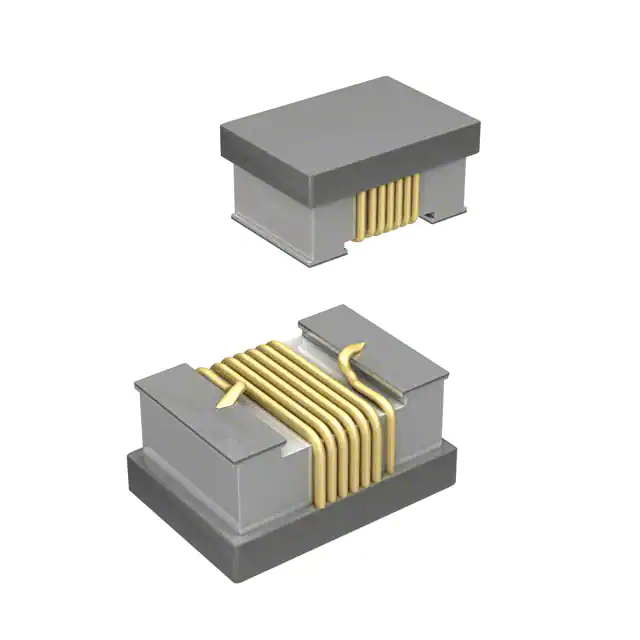

CW201212-R47JFIXED IND 470NH 250MA 1.72OHM SM Bourns Inc. |
55,635 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 250 mA | - | 0805 (2012 Metric) | Unshielded | 1.72Ohm | 470 nH | 33 @ 100MHz | 375MHz | Surface Mount | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | - | -40°C ~ 125°C | 250 MHz | 0.059" (1.50mm) |
|
|
CW201212-R33JFIXED IND 330NH 200MA 1.65OHM SM Bourns Inc. |
3,413 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 200 mA | - | 0805 (2012 Metric) | Unshielded | 1.65Ohm | 330 nH | 45 @ 250MHz | 800MHz | Surface Mount | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | - | -40°C ~ 125°C | 100 MHz | 0.059" (1.50mm) |
|

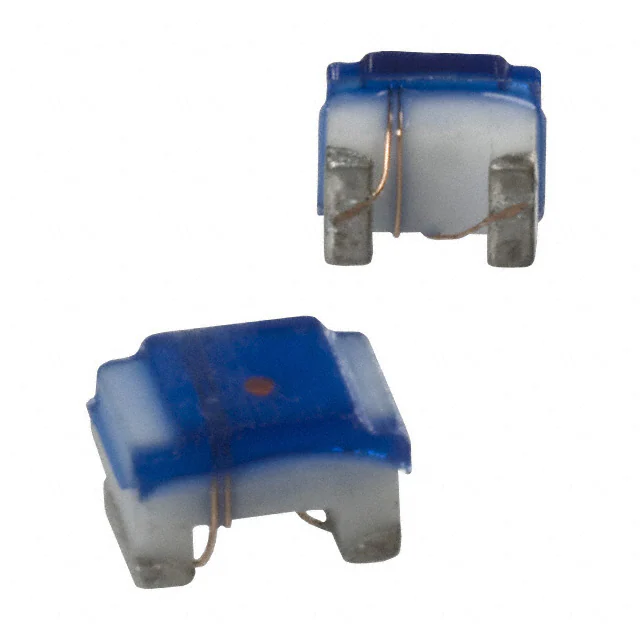

PM0805-22NM-RCFIXED IND 22NH 600MA 100MOHM SMD Bourns Inc. |
5,336 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | ±20% | 600 mA | - | 0805 (2012 Metric) | Unshielded | 100mOhm | 22 nH | 60 @ 500MHz | 3.3GHz | Surface Mount | - | 0.083" L x 0.059" W (2.10mm x 1.50mm) | - | -40°C ~ 125°C | 250 MHz | 0.059" (1.50mm) |
|
CM453232-221KLFIXED IND 220UH 100MA 10 OHM SMD Bourns Inc. |
266,511 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 100 mA | - | 1812 | Unshielded | 10Ohm Max | 220 µH | 40 @ 796kHz | 4MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 796 kHz | 0.134" (3.40mm) |
|
SRN2512-1R0MFIXED IND 1UH 3.5A 57 MOHM SMD Bourns Inc. |
35,490 |
|
Datasheet |
SRN2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.5 A | 3.9A | 1008 (2520 Metric) | Shielded | 57mOhm Max | 1 µH | 10 @ 1MHz | 120MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
CM453232-101KLFIXED IND 100UH 110MA 8 OHM SMD Bourns Inc. |
23,502 |
|
Datasheet |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 110 mA | - | 1812 | Unshielded | 8Ohm Max | 100 µH | 40 @ 796kHz | 8MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.134" (3.40mm) |
|
SRN4012T-100MFIXED IND 10UH 1.1A 180 MOHM SMD Bourns Inc. |
23,220 |
|
Datasheet |
SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 800mA | - | Shielded | 180mOhm | 10 µH | 10 @ 100kHz | 30MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
