Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

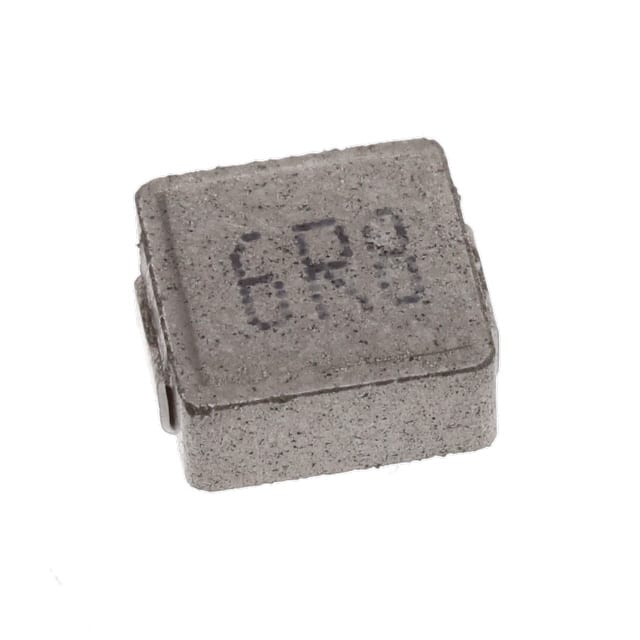

SRP6530A-6R8MIND,7.1X6.6X3MM,6.8UH20%,5.5A,SH Bourns Inc. |
186 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.5 A | 9A | Shielded | 60mOhm Max | 26 @ 2.52MHz | 17MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
PM125SH-330M-RCFIXED IND 33UH 3A 60 MOHM SMD Bourns Inc. |
997 |
|
Datasheet |
PM125SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3 A | 2.8A | Shielded | 60mOhm Max | 27 @ 2.52MHz | 9.97MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRU1048A-820YFIXED IND 82UH 1.3A 200 MOHM SMD Bourns Inc. |
2,308 |
|
Datasheet |
SRU1048A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 1.3 A | 1.1A | Shielded | 200mOhm Max | 24 @ 2.52MHz | 5.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SDR1806-8R2MLFIXED IND 8.2UH 7A 20 MOHM SMD Bourns Inc. |
668 |
|
Datasheet |
SDR1806 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 7 A | 9.4A | Unshielded | 20mOhm Max | 22 @ 7.96MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
|
SRP1038CC-150MIND SMD 15UH 6.3A Bourns Inc. |
430 |
|
Datasheet |
SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 15 µH | ±20% | 6.3 A | 10A | Shielded | 45mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP1038CC-470MIND SMD 47UH 3.2A Bourns Inc. |
144 |
|
Datasheet |
SRP1038CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 47 µH | ±20% | 3.2 A | 5A | Shielded | 167mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SDR1307A-220MFIXED IND 22UH 3.6A 47 MOHM SMD Bourns Inc. |
1,598 |
|
Datasheet |
SDR1307A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.6 A | 6.5A | Unshielded | 47mOhm Max | 40 @ 2.52MHz | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" Dia (13.00mm) | 0.287" (7.30mm) |
|
|
SPB0705-R10MIND POWER BEAD 105NH 43A SHLD Bourns Inc. |
937 |
|
Datasheet |
SPB0705 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 105 nH | ±20% | 43 A | 44A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.256" W (5.90mm x 6.50mm) | 0.197" (5.00mm) |
|
|
SPB0705-72NMIND POWER BEAD 72NH 43A SHLD Bourns Inc. |
885 |
|
Datasheet |
SPB0705 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 72 nH | ±20% | 43 A | 65A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.256" W (5.90mm x 6.50mm) | 0.197" (5.00mm) |
|
SRR1240-820MFIXED IND 82UH 1.35A 250MOHM SMD Bourns Inc. |
789 |
|
Datasheet |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.35 A | 1.35A | Shielded | 250mOhm Max | 16 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
