Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP8540A-8R2MIND 8.8X8.4X3.8MM 8.2UH20% 6A SH Bourns Inc. |
900 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 8.2 µH | ±20% | 6 A | 16A | Shielded | 51mOhm Max | 20 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
SRP8540A-R47MIND 8.8X8.4X3.8MM 0.47UH20% 28A Bourns Inc. |
799 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 470 nH | ±20% | 28 A | 40A | Shielded | 2.86mOhm Max | 10 @ 100kHz | 69MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
SRP8540A-R56MIND 8.8X8.4X3.8MM 0.56UH20% 25A Bourns Inc. |
798 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 560 nH | ±20% | 25 A | 38A | Shielded | 2.97mOhm Max | 15 @ 100kHz | 58MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
SRP8540A-1R0MIND 8.8X8.4X3.8MM 1UH20% 18A SHD Bourns Inc. |
745 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 1 µH | ±20% | 18 A | 29A | Shielded | 4.95mOhm Max | 20 @ 100kHz | 35MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
SPB1007-R27MIND POWER BEAD 270NH 61A SHLD Bourns Inc. |
685 |
|
Datasheet |
SPB1007 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±20% | 61 A | 40A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.295" (7.50mm) |
|
|
SRP8540A-6R8MIND 8.8X8.4X3.8MM 6.8UH20% 6.5A Bourns Inc. |
658 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 6.8 µH | ±20% | 6.5 A | 16.5A | Shielded | 46mOhm Max | 20 @ 100kHz | 14MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
SRP8540A-5R6MIND 8.8X8.4X3.8MM 5.6UH20% 7.5A Bourns Inc. |
645 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 5.6 µH | ±20% | 7.5 A | 17A | Shielded | 35mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|
|
SPB1007-R30MIND POWER BEAD 300NH 61A SHLD Bourns Inc. |
586 |
|
Datasheet |
SPB1007 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±20% | 61 A | 35A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.295" (7.50mm) |
|
|
SRP8540A-R82MIND 8.8X8.4X3.8MM 0.82UH20% 21A Bourns Inc. |
585 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 820 nH | ±20% | 21 A | 32A | Shielded | 4.1mOhm Max | 15 @ 100kHz | 46MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
|

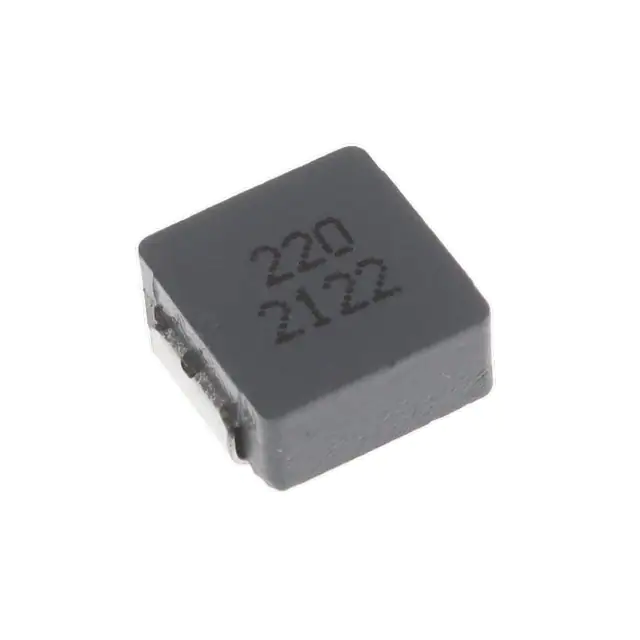

SRP8540A-220MIND 8.8X8.4X3.8MM 22UH20% 3.9A S Bourns Inc. |
493 |
|
Datasheet |
SRP8540A | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 22 µH | ±20% | 3.9 A | 8A | Shielded | 120mOhm Max | 20 @ 100kHz | 9MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.157" (4.00mm) |
