Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3015C-6R8MIND,3X3X1.3MM,6.8UH20%,1.7A,SHD Bourns Inc. |
5,488 |
|
Datasheet |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.7 A | 1.3A | 3015 | Shielded | 206mOhm Max | 6.8 µH | 10 @ 100MHz | 36MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
|
SRN3015C-180MIND,3X3X1.3MM,18UH20%,1.1A,SHD Bourns Inc. |
3,274 |
|
Datasheet |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.1 A | 730mA | 3015 | Shielded | 456mOhm Max | 18 µH | 15 @ 100MHz | 23MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
SRN4026-4R7MFIXED IND 4.7UH 1.4A 48 MOHM SMD Bourns Inc. |
3,116 |
|
Datasheet |
SRN4026 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.4A | - | Shielded | 48mOhm Max | 4.7 µH | 9 @ 7.96MHz | 40MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
|

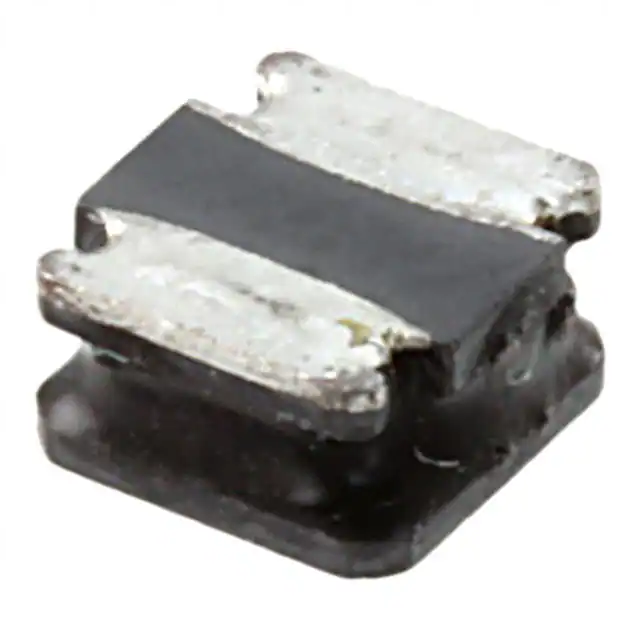

SRN4026-220MFIXED IND 22UH 670MA 234MOHM SMD Bourns Inc. |
1,532 |
|
Datasheet |
SRN4026 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 670 mA | 670mA | - | Shielded | 234mOhm Max | 22 µH | 11 @ 2.52MHz | 16MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
SRN4018-6R8MFIXED IND 6.8UH 1.5A 118MOHM SMD Bourns Inc. |
126,101 |
|
Datasheet |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.6A | - | Shielded | 118mOhm Max | 6.8 µH | 9 @ 7.96MHz | 30MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
SRN4018-470MFIXED IND 47UH 600MA 780MOHM SMD Bourns Inc. |
79,447 |
|
Datasheet |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 620mA | - | Shielded | 780mOhm Max | 47 µH | 11 @ 2.52MHz | 10MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
SRN4018-680MFIXED IND 68UH 500MA 1.128OHM SM Bourns Inc. |
72,443 |
|
Datasheet |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 500mA | - | Shielded | 1.128Ohm Max | 68 µH | 11 @ 2.52MHz | 8MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
RLB0914-101KLFIXED IND 100UH 1.1A 280 MOHM TH Bourns Inc. |
29,301 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | 2.1A | - | Unshielded | 280mOhm Max | 100 µH | 30 @ 796kHz | 3.5MHz | Through Hole | - | 0.343" Dia (8.70mm) | - | -40°C ~ 125°C | 796 kHz | 0.512" (13.00mm) |
|
|
SRN4018-220MFIXED IND 22UH 900MA 348MOHM SMD Bourns Inc. |
23,865 |
|
Datasheet |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 950mA | - | Shielded | 348mOhm Max | 22 µH | 11 @ 2.52MHz | 15MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
SRN4018-101MFIXED IND 100UH 420MA 1.596 OHM Bourns Inc. |
16,603 |
|
Datasheet |
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 420 mA | 450mA | - | Shielded | 1.596Ohm Max | 100 µH | 23 @ 796kHz | 6MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
