Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1005-391KFIXED IND 390UH 330MA 1.4OHM SMD Bourns Inc. |
600 |
|
- |
SRR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 330 mA | 450mA | Shielded | 1.4Ohm Max | 25 @ 796kHz | 4.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
SRR1208-2R5MLFIXED IND 2.5UH 7.5A 11 MOHM SMD Bourns Inc. |
90 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 7.5 A | 10A | Shielded | 11mOhm Max | 20 @ 7.96MHz | 37MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|

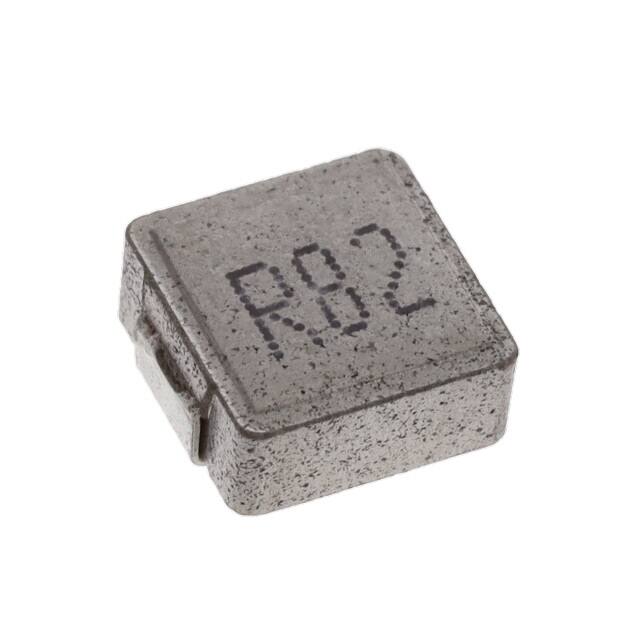

SRP6530A-R82MIND,7.1X6.6X3MM,0.82UH20%,14A,SH Bourns Inc. |
1,000 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 820 nH | ±20% | 14 A | 26A | Shielded | 7.8mOhm Max | 8 @ 25.2MHz | 68MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
PM125SH-150M-RCFIXED IND 15UH 5A 27 MOHM SMD Bourns Inc. |
1,000 |
|
Datasheet |
PM125SH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5 A | 4.6A | Shielded | 27mOhm Max | 25 @ 2.52MHz | 17.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRR1240-1R0YFIXED IND 1UH 9.3A 7 MOHM SMD Bourns Inc. |
800 |
|
Datasheet |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 9.3 A | 9.2A | Shielded | 7mOhm Max | 10 @ 7.96MHz | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
SRR1280-1R4YFIXED IND 1.4UH 9.8A 9.8MOHM SMD Bourns Inc. |
400 |
|
Datasheet |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±30% | 9.8 A | 12A | Shielded | 9.8mOhm Max | 24 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRR5828A-3R3YIND 3.3UH 4.4A SHLD Bourns Inc. |
400 |
|
Datasheet |
SRR5828A | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 µH | ±30% | 3.2 A | 2.8A | Shielded | 35mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.126" (3.20mm) |
|
|
SRR5828A-181MIND 180UH 0.64A SHLD Bourns Inc. |
400 |
|
Datasheet |
SRR5828A | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±20% | 480 mA | 420mA | Shielded | 1.1Ohm Max | - | 5.5MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.126" (3.20mm) |
|
|
SRR5828A-102MIND 1000UH 0.21A SHLD Bourns Inc. |
400 |
|
Datasheet |
SRR5828A | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±20% | 150 mA | 130mA | Shielded | 7.3Ohm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.126" (3.20mm) |
|
|
SPB1005-R12MIND POWER BEAD 120NH 53A SHLD Bourns Inc. |
1,004 |
|
Datasheet |
SPB1005 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±20% | 53 A | 60A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.197" (5.00mm) |
