Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

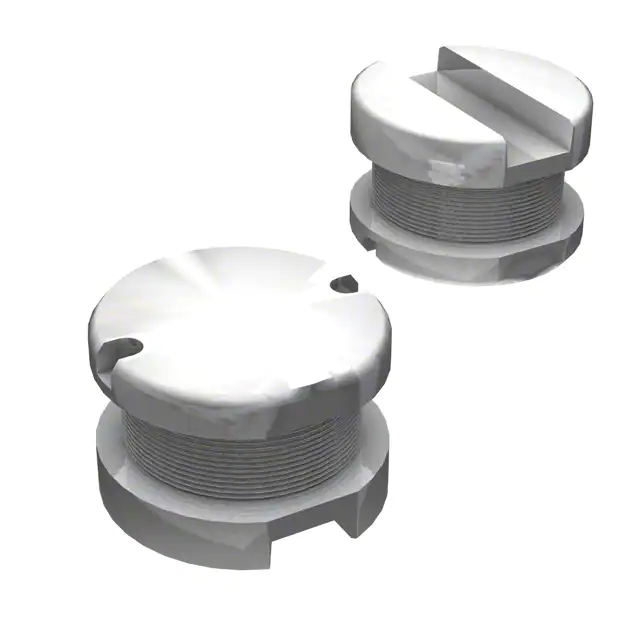

SDR0805-680KLFIXED IND 68UH 850MA 300MOHM SMD Bourns Inc. |
2,633 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 850 mA | 1.3A | Unshielded | 300mOhm Max | 15 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
|
SDR0805-470KLFIXED IND 47UH 1A 200 MOHM SMD Bourns Inc. |
1,313 |
|
Datasheet |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1 A | 1.6A | Unshielded | 200mOhm Max | 15 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.209" (5.30mm) |
|
RLB0913-100KFIXED IND 10UH 3.1A 45 MOHM TH Bourns Inc. |
7,011 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 3.1 A | 3A | Unshielded | 45mOhm | 50 @ 2.52MHz | 14MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-183KFIXED IND 18MH 90MA 40 OHM TH Bourns Inc. |
5,015 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 90 mA | 40mA | Unshielded | 40Ohm | 30 @ 79.6kHz | 200kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-104KFIXED IND 100MH 40MA 235 OHM TH Bourns Inc. |
2,787 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 40 mA | 20mA | Unshielded | 235Ohm | 20 @ 25.2kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-101KFIXED IND 100UH 1.2A 280 MOHM TH Bourns Inc. |
1,929 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.2 A | 910mA | Unshielded | 280mOhm | 20 @ 796kHz | 3.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-563KFIXED IND 56MH 50MA 135 OHM TH Bourns Inc. |
1,506 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 56 mH | ±10% | 50 mA | 20mA | Unshielded | 135Ohm | 20 @ 79.6kHz | 100kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-2R2KFIXED IND 2.2UH 5.6A 16 MOHM TH Bourns Inc. |
1,491 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 5.6 A | 6.5A | Unshielded | 16mOhm | 20 @ 7.96MHz | 100MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-122KFIXED IND 1.2MH 300MA 4 OHM TH Bourns Inc. |
1,197 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 300 mA | 130mA | Unshielded | 4Ohm | 50 @ 252kHz | 1.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-4R7KFIXED IND 4.7UH 4A 30 MOHM TH Bourns Inc. |
1,139 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 4 A | 4.3A | Unshielded | 30mOhm | 20 @ 7.96MHz | 51MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
