Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1208-270MLFIXED IND 27UH 3A 48 MOHM SMD Bourns Inc. |
1,887 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3 A | 4.3A | Shielded | 48mOhm Max | 23 @ 2.52MHz | 6.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-180MLFIXED IND 18UH 3.8A 40 MOHM SMD Bourns Inc. |
1,678 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.8 A | 4A | Shielded | 40mOhm Max | 21 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-122KLFIXED IND 1.2MH 400MA 2 OHM SMD Bourns Inc. |
1,135 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 400 mA | 570mA | Shielded | 2Ohm Max | 10 @ 252kHz | 800kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-681KLFIXED IND 680UH 600MA 1 OHM SMD Bourns Inc. |
794 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 600 mA | 820mA | Shielded | 1Ohm Max | 13 @ 796kHz | 1.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
SRR1208-472KLFIXED IND 4.7MH 280MA 9.6OHM SMD Bourns Inc. |
485 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 280 mA | 300mA | Shielded | 9.6Ohm Max | 20 @ 252kHz | 420kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
SRP3020TA-R47MFIXED IND 470NH 7A 23 MOHM SMD Bourns Inc. |
257 |
|
Datasheet |
SRP3020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 7 A | 9A | Shielded | 23mOhm Max | 5 @ 100kHz | 105MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
SRR6040A-330MFIXED IND 33UH 1.1A 120 MOHM SMD Bourns Inc. |
2,861 |
|
Datasheet |
SRR6040A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.1 A | 1.02A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
SRR1208-390YLFIXED IND 39UH 2.5A 76 MOHM SMD Bourns Inc. |
1,172 |
|
Datasheet |
SRR1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±15% | 2.5 A | 3.4A | Shielded | 76mOhm Max | 25 @ 2.52MHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|

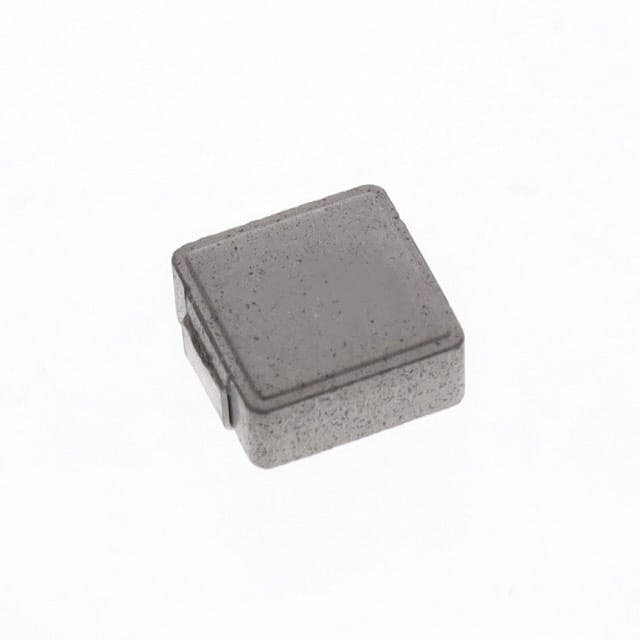

SRP6530A-3R3MIND,7.1X6.6X3MM,3.3UH20%,8A,SHD Bourns Inc. |
2,076 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 8 A | 13.5A | Shielded | 30mOhm Max | 24 @ 7.96MHz | 25MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

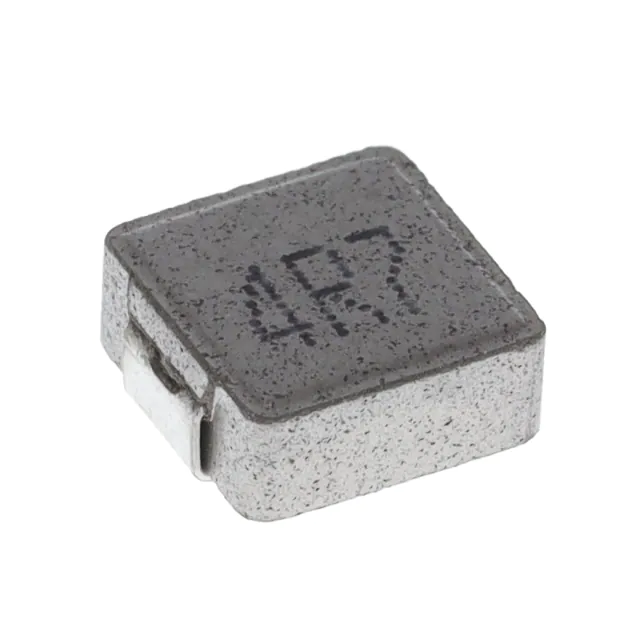

SRP6530A-4R7MIND,7.1X6.6X3MM,4.7UH20%,6A,SHD Bourns Inc. |
128 |
|
Datasheet |
SRP6530A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 6 A | 11A | Shielded | 40mOhm Max | 21 @ 7.96MHz | 22MHz | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
