Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDR0906-220MLFIXED IND 22UH 1.6A 130 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.6 A | 2.4A | Unshielded | 130mOhm Max | 35 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-120MLFIXED IND 12UH 2A 100 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2 A | 3.1A | Unshielded | 100mOhm Max | 35 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-221KLFIXED IND 220UH 600MA 850MOHM SM Bourns Inc. |
0 |
|
Datasheet |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 600 mA | 800mA | Unshielded | 850mOhm Max | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-2R7MLFIXED IND 2.7UH 3.5A 40 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 3.5 A | 6.5A | Unshielded | 40mOhm Max | 30 @ 7.96MHz | 84MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-330KLFIXED IND 33UH 1.25A 180MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.25 A | 2A | Unshielded | 180mOhm Max | 35 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|

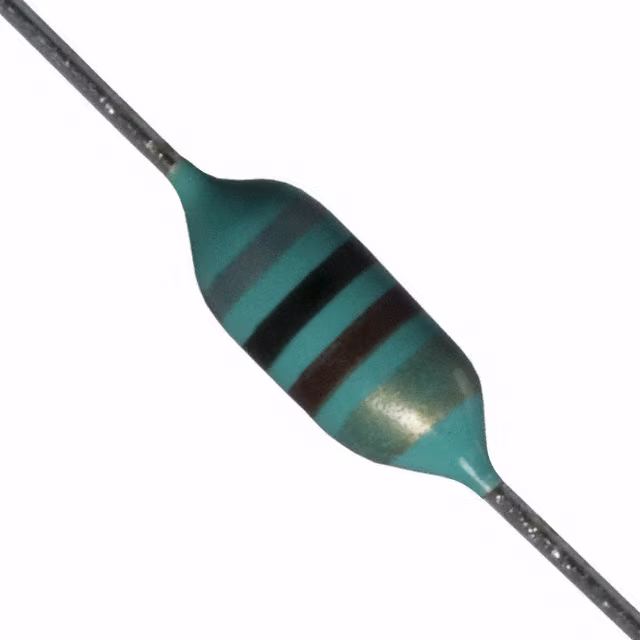

8230-94-RCFIXED IND 100NH 1.1A 70 MOHM TH Bourns Inc. |
0 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 100 nH | ±10% | 1.1 A | - | Unshielded | 70mOhm Max | 40 @ 25MHz | 690MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

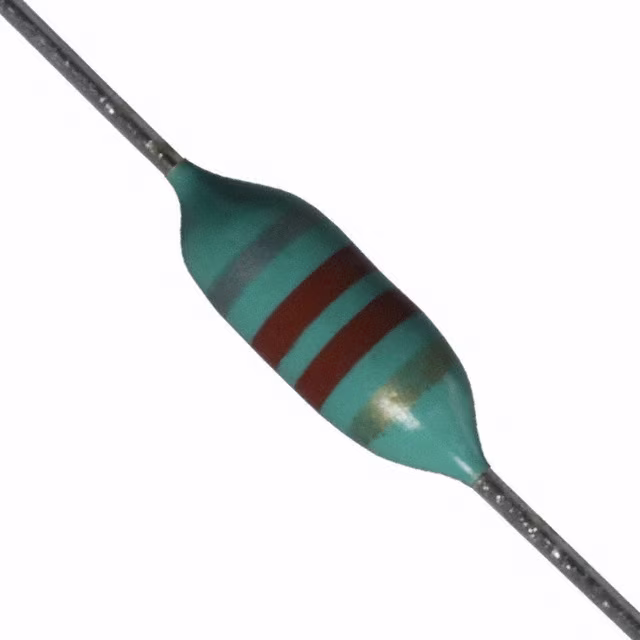

8230-04-RCFIXED IND 220NH 935MA 140MOHM TH Bourns Inc. |
0 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 220 nH | ±10% | 935 mA | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-18-RCFIXED IND 820NH 380MA 850MOHM TH Bourns Inc. |
0 |
|
Datasheet |
8230 | Axial | Bulk | Active | Wirewound | Phenolic | 820 nH | ±10% | 380 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

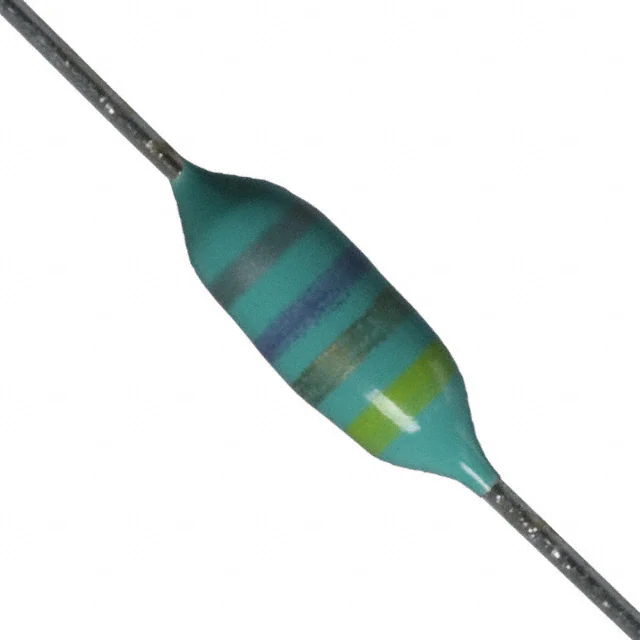

8230-36-RCFIXED IND 4.7UH 320MA 1.2 OHM TH Bourns Inc. |
0 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 320 mA | - | Unshielded | 1.2Ohm Max | 45 @ 7.9MHz | 75MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

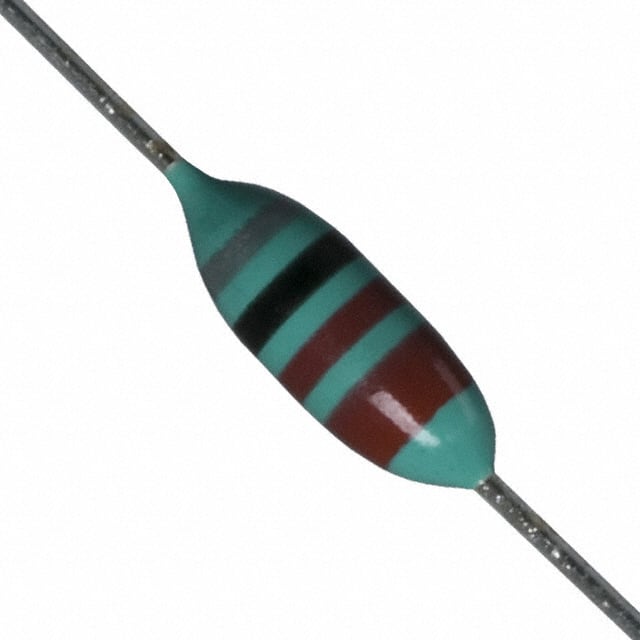

8230-52-RCFIXED IND 22UH 190MA 3.3 OHM TH Bourns Inc. |
0 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 190 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
