Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

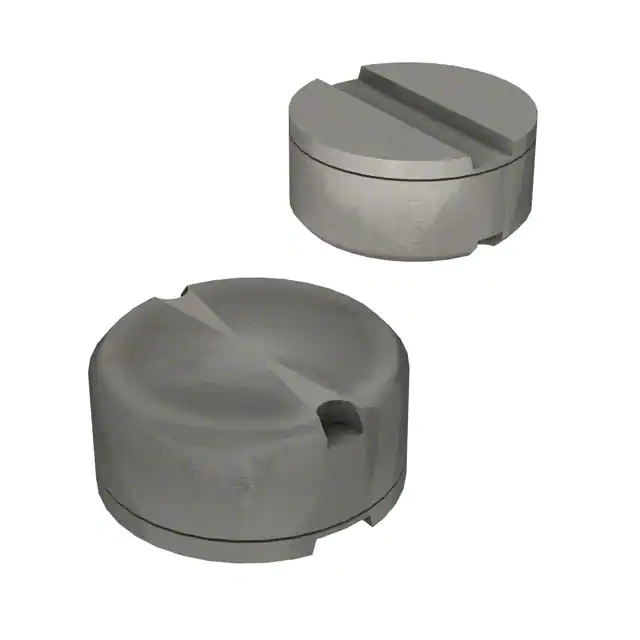

SRR0905-391KFIXED IND 390UH 350MA 1.34OHM SM Bourns Inc. |
0 |
|
Datasheet |
SRR0905 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 350 mA | - | Shielded | 1.34Ohm Max | 26 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.390" Dia (9.90mm) | 0.189" (4.80mm) |
|
SRP0515-1R5KFIXED IND 1.5UH 6.3A 24.2MOHM SM Bourns Inc. |
11 |
|
Datasheet |
SRP0515 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1.5 µH | ±10% | 6.3 A | 9.4A | Shielded | 24.2mOhm Max | 49 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
SRU8028A-3R3YFIXED IND 3.3UH 3.6A 23 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.6 A | 3.5A | Shielded | 23mOhm Max | 12 @ 7.96MHz | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRU8028A-4R7YFIXED IND 4.7UH 3.7A 26 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.7 A | 3.2A | Shielded | 26mOhm Max | 15 @ 7.96MHz | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRU8028A-330YFIXED IND 33UH 1.3A 185 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 1.3 A | 1.1A | Shielded | 185mOhm Max | 20 @ 2.52MHz | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRU8028A-470YFIXED IND 47UH 1.2A 230 MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.2 A | 1A | Shielded | 230mOhm Max | 14 @ 2.52MHz | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRU8028A-680YFIXED IND 68UH 850MA 390MOHM SMD Bourns Inc. |
0 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 850 mA | 800mA | Shielded | 390mOhm Max | 23 @ 2.52MHz | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRU8028A-101YFIXED IND 100UH 750MA 500MOHM SM Bourns Inc. |
0 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 750 mA | 700mA | Shielded | 500mOhm Max | 20 @ 796kHz | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|

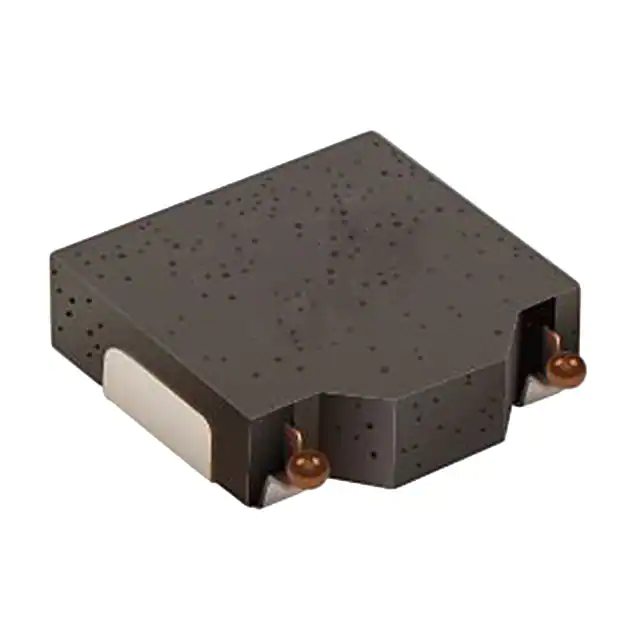

SRP0520-2R2KFIXED IND 2.2UH 6.2A 26.2MOHM SM Bourns Inc. |
0 |
|
Datasheet |
SRP0520 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 2.2 µH | ±10% | 6.2 A | 10.8A | Shielded | 26.2mOhm Max | 46 @ 7.96MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.079" (2.00mm) |
|
|
SRP0520-R47KFIXED IND 470NH 12.5A 7.2MOHM SM Bourns Inc. |
0 |
|
Datasheet |
SRP0520 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±10% | 12.5 A | 20A | Shielded | 7.2mOhm Max | 19 @ 25.2MHz | 67MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.079" (2.00mm) |
