Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM105-221KFIXED IND 220UH 660MA 730MOHM SM Bourns Inc. |
3,619 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 660 mA | - | - | Unshielded | 730mOhm | 220 µH | - | 5MHz | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | - | -30°C ~ 100°C | 1 kHz | 0.228" (5.80mm) |
|
|
PM105-471KFIXED IND 470UH 420MA 1.48OHM SM Bourns Inc. |
2,351 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 420 mA | - | - | Unshielded | 1.48Ohm | 470 µH | - | 3MHz | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | - | -30°C ~ 100°C | 1 kHz | 0.228" (5.80mm) |
|
|
PM105-561KFIXED IND 560UH 330MA 1.9OHM SMD Bourns Inc. |
4,903 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 330 mA | - | - | Unshielded | 1.9Ohm | 560 µH | - | 3MHz | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | - | -30°C ~ 100°C | 1 kHz | 0.228" (5.80mm) |
|
|
PM105-821KFIXED IND 820UH 240MA 2.55OHM SM Bourns Inc. |
3,455 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 240 mA | - | - | Unshielded | 2.55Ohm | 820 µH | - | 2MHz | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | - | -30°C ~ 100°C | 1 kHz | 0.228" (5.80mm) |
|

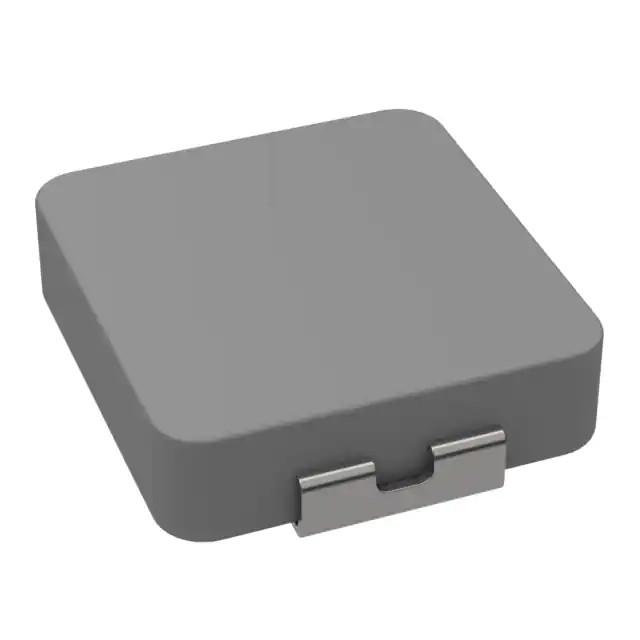

SRP7020TA-R33MIND 7X6.6X1.8MM 0.33UH20% 14A SH Bourns Inc. |
3,375 |
|
Datasheet |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | ±20% | 14 A | 25A | - | Shielded | 5mOhm Max | 330 nH | 15 @ 100kHz | 100MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP7020TA-R20YIND 7X6.6X1.8MM 0.22UH30% 18A SH Bourns Inc. |
4,329 |
|
Datasheet |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | ±30% | 18 A | 35A | - | Shielded | 3mOhm Max | 200 nH | 15 @ 100kHz | 165MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP7020TA-100MIND 7X6.6X1.8MM 10UH20% 2.8A SHD Bourns Inc. |
3,518 |
|
Datasheet |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | ±20% | 2.8 A | 4A | - | Shielded | 154mOhm Max | 10 µH | 15 @ 100kHz | 13MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP7020TA-8R2MIND 7X6.6X1.8MM 8.2UH20% 3.2A SH Bourns Inc. |
2,605 |
|
Datasheet |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | ±20% | 3.2 A | 5A | - | Shielded | 116mOhm Max | 8.2 µH | 15 @ 100kHz | 17MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
SRP7020TA-1R5MIND 7X6.6X1.8MM 1.5UH20% 7A SHD Bourns Inc. |
3,472 |
|
Datasheet |
SRP7020TA | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | ±20% | 7 A | 12A | - | Shielded | 27mOhm Max | 1.5 µH | 15 @ 100kHz | 46MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
|
PM105-470KFIXED IND 47UH 1.28A 170MOHM SMD Bourns Inc. |
3,635 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.28 A | - | - | Unshielded | 170mOhm | 47 µH | - | 10MHz | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | - | -30°C ~ 100°C | 2.52 MHz | 0.228" (5.80mm) |
