Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2120-102KFIXED IND 1MH 2.5A 215 MOHM SMD Bourns Inc. |
2,546 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | ±10% | 2.5 A | - | - | Unshielded | 215mOhm Max | 1 mH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.820" (20.83mm) |
|
5524FIXED IND 50UH 15A 13 MOHM TH Bourns Inc. |
3,421 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 15 A | - | - | Unshielded | 13mOhm Max | 50 µH | - | - | Through Hole | - | 1.000" Dia x 1.620" L (25.40mm x 41.15mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5511FIXED IND 50UH 8A 28 MOHM TH Bourns Inc. |
2,420 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 8 A | - | - | Unshielded | 28mOhm Max | 50 µH | - | - | Through Hole | - | 0.880" Dia x 1.120" L (22.35mm x 28.45mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5521FIXED IND 5UH 23A 4 MOHM TH Bourns Inc. |
2,837 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 23 A | - | - | Unshielded | 4mOhm Max | 5 µH | - | - | Through Hole | - | 0.720" Dia x 1.380" L (18.29mm x 35.05mm) | - | -55°C ~ 105°C | 1 kHz | - |
|

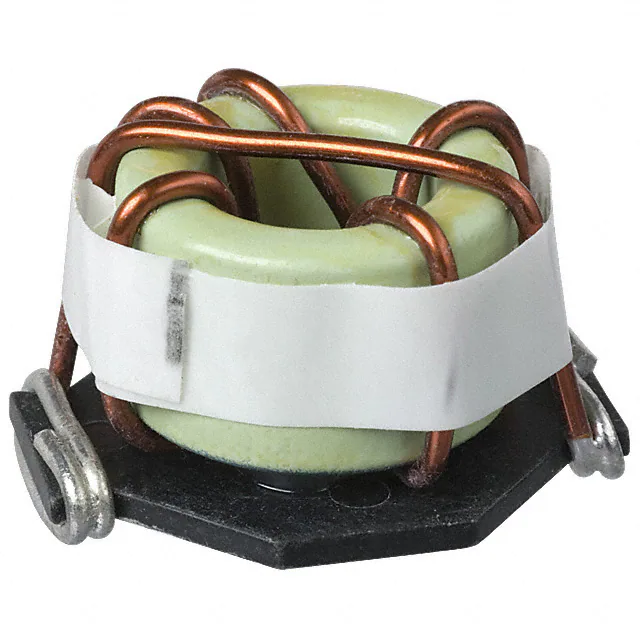

PM2120-2R2M-RCFIXED IND 2.2UH 19.7A 3 MOHM SMD Bourns Inc. |
4,763 |
|
Datasheet |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | ±20% | 19.7 A | - | - | Unshielded | 3mOhm Max | 2.2 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.820" (20.83mm) |
|
|
PM2120-4R7M-RCFIXED IND 4.7UH 16.6A 5 MOHM SMD Bourns Inc. |
2,762 |
|
Datasheet |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | ±20% | 16.6 A | - | - | Unshielded | 5mOhm Max | 4.7 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.820" (20.83mm) |
|
|
PM2120-5R6M-RCFIXED IND 5.6UH 15.6A 5 MOHM SMD Bourns Inc. |
3,526 |
|
Datasheet |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | ±20% | 15.6 A | - | - | Unshielded | 5mOhm Max | 5.6 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.820" (20.83mm) |
|
|
PM2120-120K-RCFIXED IND 12UH 12.7A 8 MOHM SMD Bourns Inc. |
4,344 |
|
Datasheet |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | ±10% | 12.7 A | - | - | Unshielded | 8mOhm Max | 12 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.820" (20.83mm) |
|
|
PM2120-8R2M-RCFIXED IND 8.2UH 14.7A 6 MOHM SMD Bourns Inc. |
3,141 |
|
Datasheet |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | ±20% | 14.7 A | - | - | Unshielded | 6mOhm Max | 8.2 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.820" (20.83mm) |
|
|
PM2120-1R0M-RCFIXED IND 1UH 25.4A 2 MOHM SMD Bourns Inc. |
3,675 |
|
Datasheet |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | ±20% | 25.4 A | - | - | Unshielded | 2mOhm Max | 1 µH | - | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | - | -55°C ~ 105°C | 1 kHz | 0.820" (20.83mm) |
