Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM0603-56NJFIXED IND 56NH 600MA 310MOHM SMD Bourns Inc. |
4,002 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 0603 (1608 Metric) | Unshielded | 310mOhm | 56 nH | 40 @ 200MHz | 1.9GHz | Surface Mount | - | 0.065" L x 0.041" W (1.65mm x 1.05mm) | - | -40°C ~ 125°C | 200 MHz | 0.047" (1.20mm) |
|
|
PM0603-68NJFIXED IND 68NH 600MA 1.7 OHM SMD Bourns Inc. |
4,675 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 0603 (1608 Metric) | Unshielded | 1.7Ohm | 68 nH | 40 @ 200MHz | 1.7GHz | Surface Mount | - | 0.065" L x 0.041" W (1.65mm x 1.05mm) | - | -40°C ~ 125°C | 200 MHz | 0.047" (1.20mm) |
|
|
PM0603-82NJFIXED IND 82NH 400MA 540MOHM SMD Bourns Inc. |
3,364 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 0603 (1608 Metric) | Unshielded | 540mOhm | 82 nH | 35 @ 150MHz | 1.7GHz | Surface Mount | - | 0.065" L x 0.041" W (1.65mm x 1.05mm) | - | -40°C ~ 125°C | 150 MHz | 0.047" (1.20mm) |
|
|
PM0603-R12JFIXED IND 120NH 300MA 650MOHM SM Bourns Inc. |
3,798 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 650mOhm | 120 nH | 35 @ 150MHz | 1.3GHz | Surface Mount | - | 0.065" L x 0.041" W (1.65mm x 1.05mm) | - | -40°C ~ 125°C | 150 MHz | 0.047" (1.20mm) |
|

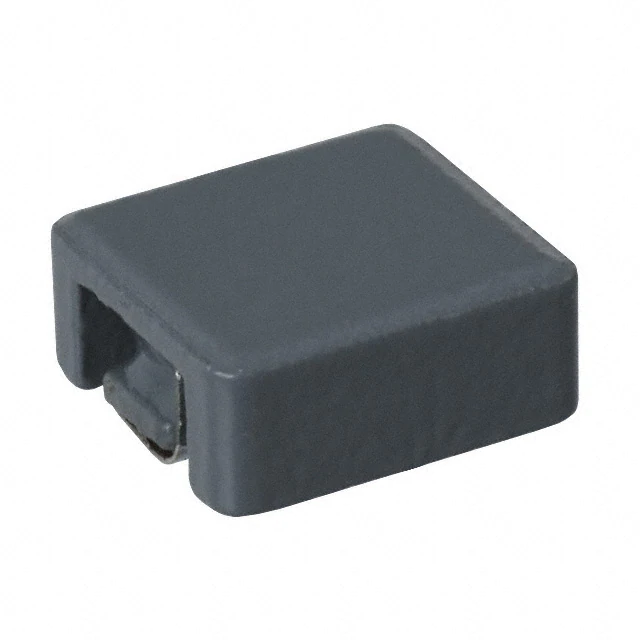

PM7232S-R22MFIXED IND 220NH 17A 1.7 MOHM SMD Bourns Inc. |
4,202 |
|
Datasheet |
PM7232S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 17 A | - | - | Shielded | 1.7mOhm Max | 220 nH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.126" (3.20mm) |
|
100217FIXED IND 6.8UH 1.3A 170 MOHM TH Bourns Inc. |
3,323 |
|
Datasheet |
M | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 1.3 A | - | - | Unshielded | 170mOhm Max | 6.8 µH | 70 @ 7.9MHz | 65MHz | Through Hole | - | 0.250" Dia x 0.600" L (6.35mm x 15.24mm) | - | - | 7.9 MHz | - |
|
PM1038S-R75MFIXED IND 750NH 20A 3.5 MOHM SMD Bourns Inc. |
4,840 |
|
Datasheet |
PM1038S | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 20 A | - | - | Shielded | 3.5mOhm Max | 750 nH | - | - | Surface Mount | - | 0.465" L x 0.413" W (11.80mm x 10.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.165" (4.20mm) |
|
2100HT-150-HFIXED IND 15UH 9.1A 14 MOHM TH Bourns Inc. |
2,779 |
|
Datasheet |
2100HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | - | ±15% | 9.1 A | - | - | Shielded | 14mOhm Max | 15 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 200°C | 1 kHz | 0.450" (11.43mm) |
|
|
2200HT-101-HFIXED IND 100UH 5.3A 61 MOHM TH Bourns Inc. |
3,377 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 5.3 A | - | - | Shielded | 61mOhm Max | 100 µH | - | - | Through Hole | - | 0.950" Dia (24.13mm) | - | -55°C ~ 200°C | 1 kHz | 0.550" (13.97mm) |
|
|
2200HT-220-HFIXED IND 22UH 9.3A 20 MOHM TH Bourns Inc. |
3,549 |
|
Datasheet |
2200HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±15% | 9.3 A | - | - | Shielded | 20mOhm Max | 22 µH | - | - | Through Hole | - | 0.950" Dia (24.13mm) | - | -55°C ~ 200°C | 1 kHz | 0.550" (13.97mm) |
