Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMMA00131364R56MV1INDUCTOR POWER |
2,294 |
|
Datasheet |
AMMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 37 A | 62A | - | Shielded | 1.4mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
|
AMMA001313641R0MV1INDUCTOR POWER |
2,883 |
|
- |
AMMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 32 A | 49A | - | Shielded | 2mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
|
AMMA00131364R68MV1INDUCTOR POWER |
2,530 |
|
Datasheet |
AMMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 35 A | 60A | - | Shielded | 1.6mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
|
AMMA00131364R33MV1INDUCTOR POWER |
2,004 |
|
Datasheet |
AMMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 46 A | 65A | - | Shielded | 0.9mOhm Max | 330 nH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
|
AMMA00131364R82MV1INDUCTOR POWER |
3,432 |
|
Datasheet |
AMMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 33 A | 50A | - | Shielded | 1.9mOhm Max | 820 nH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
|
AMMA001313641R8MV1INDUCTOR POWER |
3,147 |
|
Datasheet |
AMMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 24 A | 41A | - | Shielded | 3.2mOhm Max | 1.8 µH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
|
AMMA001313648R2MV1INDUCTOR POWER |
3,440 |
|
Datasheet |
AMMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 10.5 A | 16A | - | Shielded | 15.5mOhm Max | 8.2 µH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
|
AMMA001313646R8MV1INDUCTOR POWER |
2,758 |
|
Datasheet |
AMMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 11.5 A | 16.5A | - | Shielded | 14mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
|
AMMA00131364100MV1INDUCTOR POWER |
4,471 |
|
Datasheet |
AMMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 10 A | 15.5A | - | Shielded | 17.2mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.252" (6.40mm) |
|
MGDQ6-00034-PFIXED INDUCTOR SMD |
3,081 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

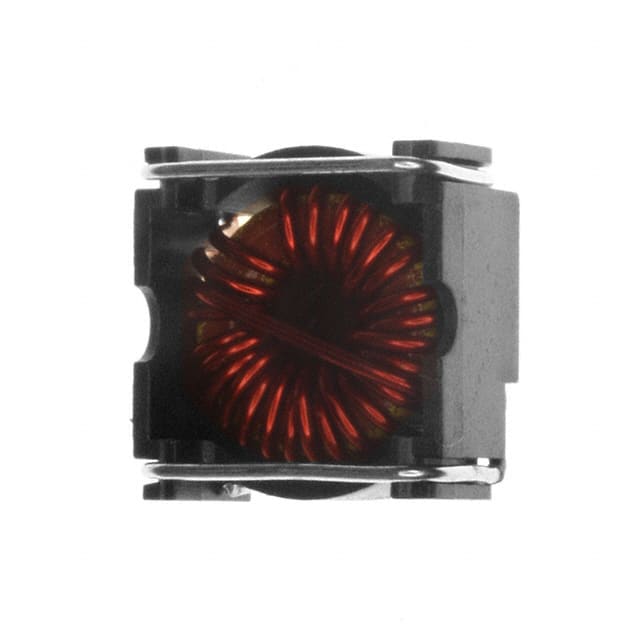

P0845SNLTFIXED IND 10UH 4.3A 50 MOHM SMD |
2,990 |
|
Datasheet |
LCI-44 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | ±20% | 4.3 A | - | - | Shielded | 50mOhm | 10 µH | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | - | -40°C ~ 130°C | - | 0.390" (9.91mm) |
|
SCEP134S-R40FIXED IND 400NH 19A 2.5 MOHM SMD |
3,711 |
|
Datasheet |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±30% | 19 A | 32A | - | Shielded | 2.5mOhm Max | 400 nH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-R90FIXED IND 900NH 17A 3.2 MOHM SMD |
4,582 |
|
Datasheet |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 17 A | 21.6A | - | Shielded | 3.2mOhm Max | 900 nH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-1R6FIXED IND 1.6UH 16A 4 MOHM SMD |
3,776 |
|
Datasheet |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 16 A | 16A | - | Shielded | 4mOhm Max | 1.6 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-2R5FIXED IND 2.5UH 12.5A 6.6MOHM SM |
3,134 |
|
Datasheet |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 12.5 A | 12.8A | - | Shielded | 6.6mOhm Max | 2.5 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-3R6FIXED IND 3.6UH 10.8A 10.8 MOHM |
2,344 |
|
Datasheet |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 10.8 A | 10.9A | - | Shielded | 10.8mOhm Max | 3.6 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-4R8FIXED IND 4.8UH 9.8A 12 MOHM SMD |
3,321 |
|
Datasheet |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9.8 A | 9.3A | - | Shielded | 12mOhm Max | 4.8 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-6R4FIXED IND 6.4UH 8.5A 16.3MOHM SM |
4,570 |
|
Datasheet |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 8.5 A | 8A | - | Shielded | 16.3mOhm Max | 6.4 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
|
SCEP134S-8R0FIXED IND 8UH 7A 18.4 MOHM SMD |
4,888 |
|
Datasheet |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 7 A | 7.2A | - | Shielded | 18.4mOhm Max | 8 µH | - | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
CTCDRH129F-102M1000UH SMD SHIELDED PWR INDUCTOR |
3 |
|
Datasheet |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 760 mA | 760mA | - | Shielded | 1.27Ohm Max | 1 mH | - | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 1 kHz | 0.394" (10.00mm) |
