Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

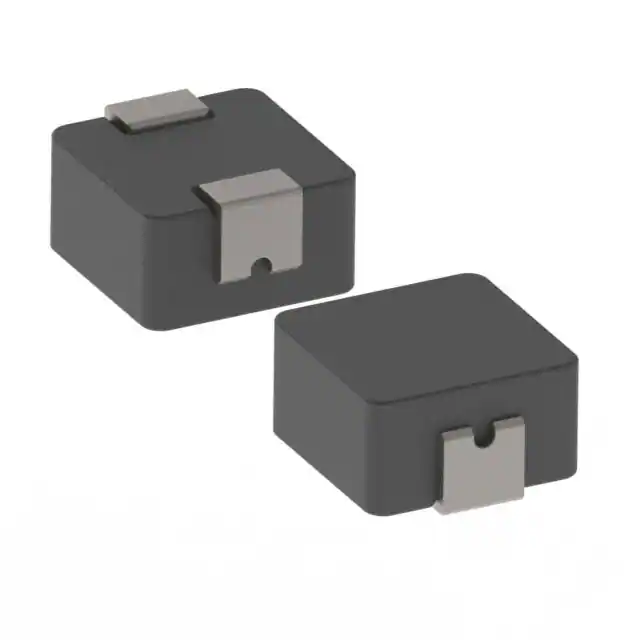

PM4340.333NLTFIXED IND 33UH 1.6A 440 MOHM SMD |
18,253 |
|
Datasheet |
PM4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 1.6 A | 1.6A | - | Shielded | 440mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.236" L x 0.213" W (6.00mm x 5.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
PM4340.102NLTFIXED IND 1UH 7A 14 MOHM SMD |
7,063 |
|
Datasheet |
PM4340.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 7 A | 11A | - | Shielded | 14mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.236" L x 0.213" W (6.00mm x 5.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
B82144B2274J000FIXED IND 270UH 800MA 1.2 OHM TH |
6,644 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 800 mA | 580mA | - | Unshielded | 1.2Ohm Max | 270 µH | 40 @ 79.6kHz | 3.2MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
3613C221KFIXED IND 220UH 100MA 10 OHM SMD |
3,183 |
|
Datasheet |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 100 mA | - | 1812 | Unshielded | 10Ohm Max | 220 µH | 40 @ 796kHz | 4MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -30°C ~ 100°C | 796 kHz | 0.134" (3.40mm) |
|
B82144B2334J000FIXED IND 330UH 700MA 1.53OHM TH |
3,136 |
|
Datasheet |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 700 mA | 520mA | - | Unshielded | 1.53Ohm Max | 330 µH | 40 @ 79.6kHz | 2.8MHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.551" (14.00mm) |
|
VLS4012HBX-1R0MFIXED IND 1UH 5.86A 53 MOHM SMD |
2,878 |
|
Datasheet |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5.86 A | 7.55A | - | Shielded | 53mOhm Max | 1 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
VLS4012HBX-2R2M-NINDUCTORS FOR POWER CIRCUITS, WO |
2,490 |
|
Datasheet |
VLS-HBX | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 3.35 A | 3.8A | 1616 | Shielded | 94mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
|
3613C220KFIXED IND 22UH 180MA 3.2 OHM SMD |
2,038 |
|
Datasheet |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 180 mA | - | 1812 | Unshielded | 3.2Ohm Max | 22 µH | 50 @ 2.52MHz | 13MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -30°C ~ 100°C | 2.52 MHz | 0.134" (3.40mm) |
|
VLCF5020T-1R8N2R0FIXED IND 1.8UH 2.07A 59MOHM SMD |
1,844 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.07 A | 2.07A | - | Shielded | 59mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
SBC3-4R7-422FIXED IND 4.7UH 4.2A 20 MOHM TH |
1,512 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.2 A | 4.6A | - | Unshielded | 20mOhm Max | 4.7 µH | - | - | Through Hole | - | 0.354" Dia (9.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.354" (9.00mm) |
|
SDE0805A-271KFIXED IND 270UH 700MA 1.11OHM SM |
9,506 |
|
Datasheet |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 700 mA | 550mA | - | Unshielded | 1.11Ohm Max | 270 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|
|
SDE0805A-470KFIXED IND 47UH 1.7A 180 MOHM SMD |
6,881 |
|
Datasheet |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | 1.4A | - | Unshielded | 180mOhm Max | 47 µH | - | 12.1MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.217" (5.50mm) |
|
RCH875NP-331KFIXED IND 330UH 300MA 1.05OHM TH |
6,790 |
|
Datasheet |
RCH-875 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 300 mA | 460mA | - | Unshielded | 1.05Ohm Max | 330 µH | - | - | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 100°C | 1 kHz | 0.295" (7.50mm) |
|
B82145A1684J000FIXED IND 680UH 440MA 2.5 OHM TH |
6,490 |
|
Datasheet |
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 440 mA | - | - | Unshielded | 2.5Ohm Max | 680 µH | 20 @ 796kHz | 1.5MHz | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
L06031R8CGSTRFIXED IND 1.8NH 1A 70 MOHM SMD |
6,140 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.2nH | 1 A | - | 0603 (1608 Metric) | Unshielded | 70mOhm Max | 1.8 nH | 20 @ 450MHz | 10GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|
CDRH4D18NP-330NCFIXED IND 33UH 320MA 694MOHM SMD |
3,973 |
|
Datasheet |
CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 320 mA | - | - | Shielded | 694mOhm Max | 33 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.079" (2.00mm) |
|
|
SBC2-6R8-242FIXED IND 6.8UH 2.4A 50 MOHM TH |
3,706 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 2.7A | - | Unshielded | 50mOhm Max | 6.8 µH | - | - | Through Hole | - | 0.276" Dia (7.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.315" (8.00mm) |
|
|
SDE0805A-181KFIXED IND 180UH 850MA 710MOHM SM |
3,395 |
|
Datasheet |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 850 mA | 650mA | - | Unshielded | 710mOhm Max | 180 µH | - | 6.2MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
|
|
SDE0805A-150MFIXED IND 15UH 2.5A 90 MOHM SMD |
3,000 |
|
Datasheet |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 2.2A | - | Unshielded | 90mOhm Max | 15 µH | - | 22.5MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.217" (5.50mm) |
|
|
SDE0805A-330MFIXED IND 33UH 2A 130 MOHM SMD |
3,000 |
|
Datasheet |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 1.6A | - | Unshielded | 130mOhm Max | 33 µH | - | 13.2MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.217" (5.50mm) |
