Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020ABER2R2M01FIXED IND 2.2UH 3.4A 77.3MOHM SM |
29,460 |
|
Datasheet |
IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.4 A | 6A | - | Shielded | 77.3mOhm Max | 2.2 µH | - | 47MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
744772332FIXED IND 3.3MH 280MA 6.2 OHM TH |
18,188 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | ±5% | 280 mA | 300mA | - | Unshielded | 6.2Ohm Max | 3.3 mH | - | 900kHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.394" (10.00mm) |
|

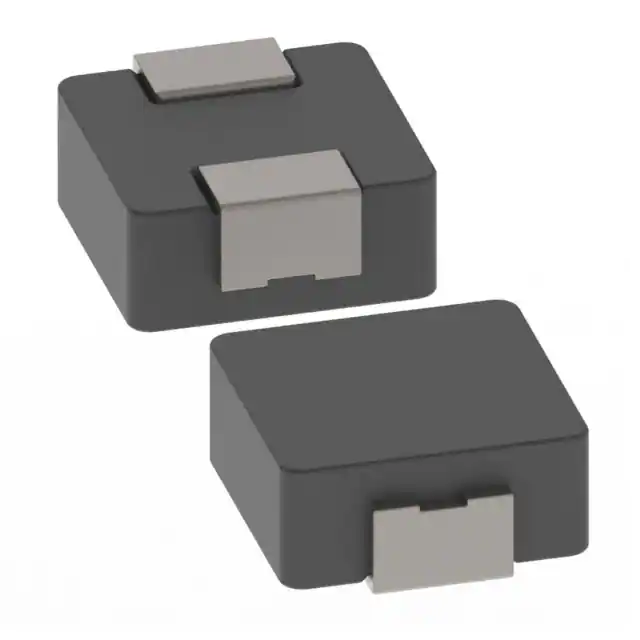

PM4341.473NLTFIXED IND 47UH 1.75A 363MOHM SMD |
9,099 |
|
Datasheet |
PM4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 1.75 A | 2A | - | Shielded | 363mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.299" L x 0.272" W (7.60mm x 6.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
IFLR4027EZERR22M01FIXED IND 220NH 50A 0.42MOHM SMD |
5,224 |
|
Datasheet |
IFLR-4027EZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | ±20% | 50 A | 33A | - | Shielded | 0.42mOhm Max | 220 nH | - | - | Surface Mount | - | 0.276" L x 0.402" W (7.00mm x 10.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
PA4302.103NLTFIXED IND 10UH 3A 55 MOHM SMD |
5,215 |
|
Datasheet |
PA4302.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3 A | - | - | Shielded | 55mOhm Max | 10 µH | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.220" (5.60mm) |
|
CDRH80D65BT150NP-101MCFIXED IND 100UH 1.37A 168MOHM SM |
4,512 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 1.37 A | 1.41A | - | Shielded | 168mOhm | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.339" L x 0.323" W (8.60mm x 8.20mm) | - | -55°C ~ 150°C | 100 kHz | 0.268" (6.80mm) |
|
CDRH6D38T125NP-100PCFIXED IND 10UH 3A 43.5 MOHM SMD |
4,055 |
|
Datasheet |
CDRH6D38/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 3 A | 2.2A | - | Shielded | 43.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

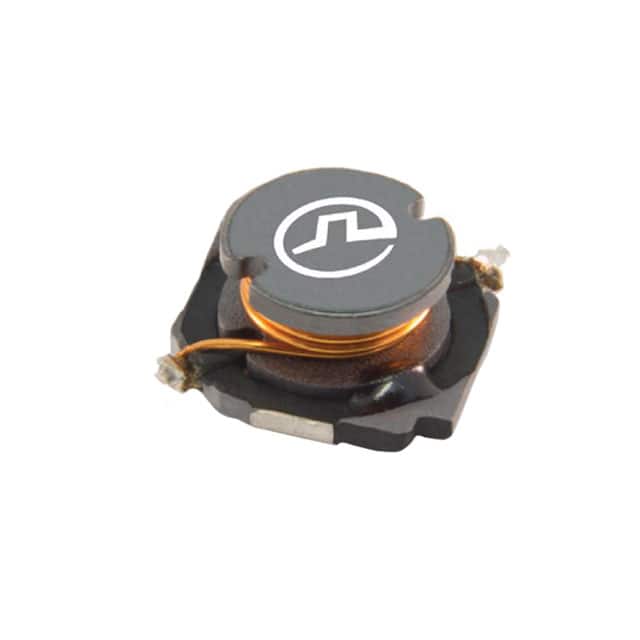

PA4307.105NLTFIXED IND 1MH 300MA 12.295OHM SM |
3,914 |
|
Datasheet |
PA4307.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 300 mA | - | - | Unshielded | 12.295Ohm Max | 1 mH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
SRP3012TA-5R6MFIXED IND 5.6UH 1.5A 360MOHM SMD |
3,672 |
|
Datasheet |
SRP3012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 1.5 A | 2.2A | 2-SMD | Shielded | 360mOhm Max | 5.6 µH | - | 32MHz | Surface Mount | AEC-Q200 | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 150°C | 100 kHz | 0.047" (1.20mm) |
|
SPM6530T-2R2M-HZFIXED IND 2.2UH 8.4A 19.03 MOHM |
3,337 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 8.4 A | 6.3A | - | Shielded | 19.03mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
EXL1V0705-4R7-RFIXED IND 4.7UH 11A 15.4MOHM SMD |
2,150 |
|
Datasheet |
EXL1V0705 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 11 A | 13A | - | Shielded | 15.4mOhm Max | 4.7 µH | - | 17MHz | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
CLF7045T-101M-HFIXED IND 100UH 900MA 330MOHM SM |
1,994 |
|
Datasheet |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 750mA | - | Shielded | 330mOhm | 100 µH | - | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
IHLP3232DZER3R3M5AFIXED IND 3.3UH 11.3A 16.48 MOHM |
1,237 |
|
Datasheet |
IHLP-3232DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 11.3 A | 11.8A | - | Shielded | 16.48mOhm Max | 3.3 µH | - | 23MHz | Surface Mount | AEC-Q200 | 0.322" L x 0.322" W (8.18mm x 8.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
DR125-180-RFIXED IND 18UH 3.81A 37.7MOHM SM |
1,084 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.81 A | 5.32A | - | Shielded | 37.7mOhm | 18 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
B82442T1332K000FIXED IND 3.3UH 2.46A 46MOHM SMD |
902 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.46 A | 5.2A | - | Unshielded | 46mOhm Max | 3.3 µH | 15 @ 7.96MHz | 36MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 7.96 MHz | 0.209" (5.30mm) |
|
DR125-472-RFIXED IND 4.72MH 268MA 7.53 OHM |
892 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 268 mA | 320mA | - | Shielded | 7.53Ohm | 4.72 mH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
AIUR-06-680KFIXED IND 68UH 2.4A 78 MOHM TH |
4,880 |
|
Datasheet |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.4 A | 3.5A | - | Unshielded | 78mOhm Max | 68 µH | - | - | Through Hole | - | 0.500" Dia (12.70mm) | - | -25°C ~ 85°C | 1 kHz | 0.710" (18.03mm) |
|
CDRH6D12NP-2R2NCFIXED IND 2.2UH 2.3A 50 MOHM SMD |
3,853 |
|
Datasheet |
CDRH6D12 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2.3 A | 2.5A | - | Shielded | 50mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 100°C | 100 kHz | 0.059" (1.50mm) |
|
PA5448.471NLTFIXED IND 470NH 25A 3.1MOHM SMD |
3,479 |
|
Datasheet |
PA5448.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 25 A | 24A | - | Shielded | 3.1mOhm Max | 470 nH | - | - | Surface Mount | - | 0.346" L x 0.323" W (8.80mm x 8.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SRU8028A-100YFIXED IND 10UH 2.6A 57 MOHM SMD |
2,876 |
|
Datasheet |
SRU8028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.6 A | 2.2A | - | Shielded | 57mOhm Max | 10 µH | 22 @ 2.52MHz | 35MHz | Surface Mount | AEC-Q200 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
