Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX1670-5R6MFLAT WIRE HIGH CURRENT INDUCTOR CODACA |
2,563 |
|
Datasheet |
CSBX1670 | 2-SMD | Active | Wirewound | Metal Composite | ±20% | 18 A | 26A | - | Shielded | 5.2mOhm Max | 5.6 µH | - | - | Surface Mount | AEC-Q200 | 0.661" L x 0.630" W (16.80mm x 16.00mm) | High Current, Low Loss | -55°C ~ 150°C | - | 0.264" (6.70mm) | |
|

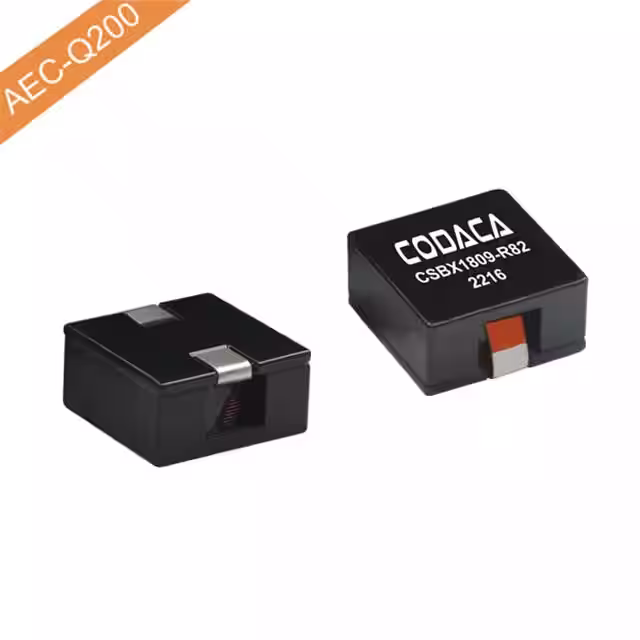

CSBX1809-6R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
3,528 |
|
Datasheet |
CSBX1809 | Nonstandard | Active | Wirewound | Metal Composite | ±20% | 18.5 A | 31A | - | Shielded | 4.7mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.760" L x 0.717" W (19.30mm x 18.20mm) | High Saturation | -55°C ~ 150°C | 100 kHz | 0.362" (9.20mm) | |
|
|
CSCF2014-R70MCSUPER HIGH CURRENT POWER INDUCTO CODACA |
4,000 |
|
Datasheet |
CSCF2014 | 3-SMD | Active | Wirewound | Ferrite | ±20% | 32 A | 75A | - | Shielded | 0.79mOhm Max | 0.7 µH | - | - | Surface Mount | AEC-Q200 | 0.886" L x 0.858" W (22.50mm x 21.80mm) | Low DCR, Low Loss | -40°C ~ 125°C | - | 0.571" (14.50mm) | |
|
|
CPCF2016A-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
4,739 |
|
Datasheet |
CPCF2016A | Nonstandard | Active | Wirewound | Ferrite | ±20% | 17.5 A | 24A | - | Shielded | 5.2mOhm Max | 10 µH | - | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) | |
|
|
CPCF2016A-470MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Datasheet |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 12 A | 7.5A | - | Shielded | 12.4mOhm Max | 47 µH | - | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
CPCF2016A-4R7MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Datasheet |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 22.5 A | 42A | - | Shielded | 3.2mOhm Max | 4.7 µH | - | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
CPCF2016A-220MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Datasheet |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 17.5 A | 11A | - | Shielded | 5.2mOhm Max | 22 µH | - | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
CPCF2016A-330MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Datasheet |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 12 A | 10A | - | Shielded | 12.4mOhm Max | 33 µH | - | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
CPCF2016A-8R2MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
18 |
|
Datasheet |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 22 A | 25A | - | Shielded | 3.5mOhm Max | 8.2 µH | - | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
|
|
CPCF2016A-6R8MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
16 |
|
Datasheet |
CPCF2016A | Nonstandard | Tray | Active | Wirewound | Ferrite | ±20% | 22 A | 30A | - | Shielded | 3.5mOhm Max | 6.8 µH | - | - | Through Hole | - | 0.858" L x 0.650" W (21.80mm x 16.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.571" (14.50mm) |
