Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSD0910B-220MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
185 |
|
Datasheet |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 22 µH | ±20% | 2.5 A | 3.2A | Shielded | 51.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.394" (10.00mm) |
|
CSD1013B-100MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
268 |
|
Datasheet |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 4.2 A | 7.1A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.413" (10.50mm) |
|
|

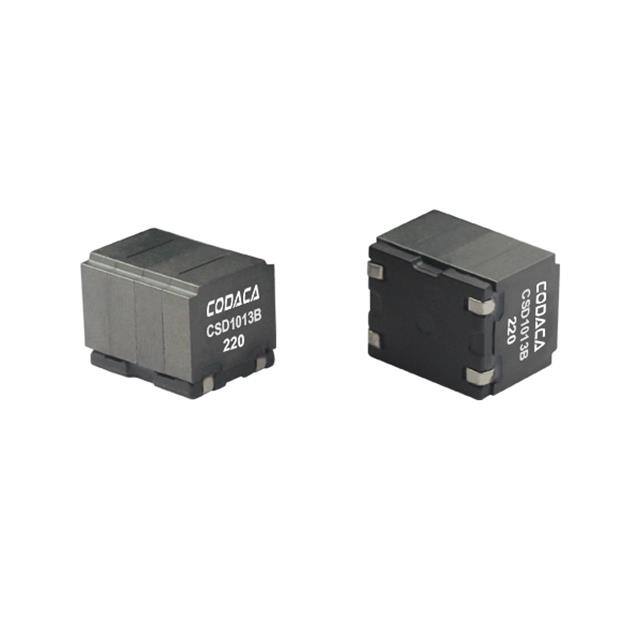

CSD1013B-220MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
268 |
|
Datasheet |
CSD | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 22 µH | ±20% | 3 A | 4.3A | Shielded | 38mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 4-SMD | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.413" (10.50mm) |
|
CPD1495-220MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
592 |
|
Datasheet |
CPD1495 | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 7 A | 9.2A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | - | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.630" (16.00mm) |
|
CPD1415B-220MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
478 |
|
Datasheet |
CPD1415B | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 6.8 A | 6.9A | Shielded | 17.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|
CSBX1670-220MSMD HIGH CURRENT POWER INDUCTOR CODACA |
200 |
|
Datasheet |
CSBX1670 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 22 µH | ±20% | 8.5 A | 14A | Shielded | 23.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|
CSBX1670-8R2MSMD HIGH CURRENT POWER INDUCTOR CODACA |
190 |
|
Datasheet |
CSBX1670 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 8.2 µH | ±20% | 15 A | 21A | Shielded | 8.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|
CSBX1670-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
180 |
|
Datasheet |
CSBX1670 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 13 A | 18A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|
CSBL1670-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
158 |
|
Datasheet |
CSBL1670 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 10 µH | ±20% | 13 A | 16A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.661" L x 0.630" W (16.80mm x 16.00mm) | 0.264" (6.70mm) |
|
|
CPD1415B-100MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
707 |
|
Datasheet |
CPD1415B | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 8 A | 12.3A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
