Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSCF2915H-2R2MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
160 |
|
Datasheet |
CSCF2915H | Nonstandard | Tray | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 32 A | 100A | Shielded | 1.65mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.098" L x 0.776" W (27.90mm x 19.70mm) | 0.606" (15.40mm) |
|
|
CSCF2915L-6R8MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
160 |
|
Datasheet |
CSCF2915L | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 34 A | 27.8A | Shielded | 1.36mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 1.098" L x 0.776" W (27.90mm x 19.70mm) | 0.606" (15.40mm) |
|
|
CSCF2918H-220MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
134 |
|
Datasheet |
CSCF2918H | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 30 A | 15A | Shielded | 2.58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.102" L x 0.776" W (28.00mm x 19.70mm) | 0.728" (18.50mm) |
|
|
CSCF2918H-6R8MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
113 |
|
Datasheet |
CSCF2918H | Nonstandard | Tray | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 30 A | 48A | Shielded | 2.58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.102" L x 0.776" W (28.00mm x 19.70mm) | 0.728" (18.50mm) |
|
CSCF2918H-100MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
378 |
|
Datasheet |
CSCF2918H | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 30 A | 33A | Shielded | 2.58mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | - | 1.102" L x 1.063" W (28.00mm x 27.00mm) | 0.728" (18.50mm) |
|
CPD2315-100MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
371 |
|
Datasheet |
CPD2315 | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 14 A | 39A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 3 PC Pin | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) |
|

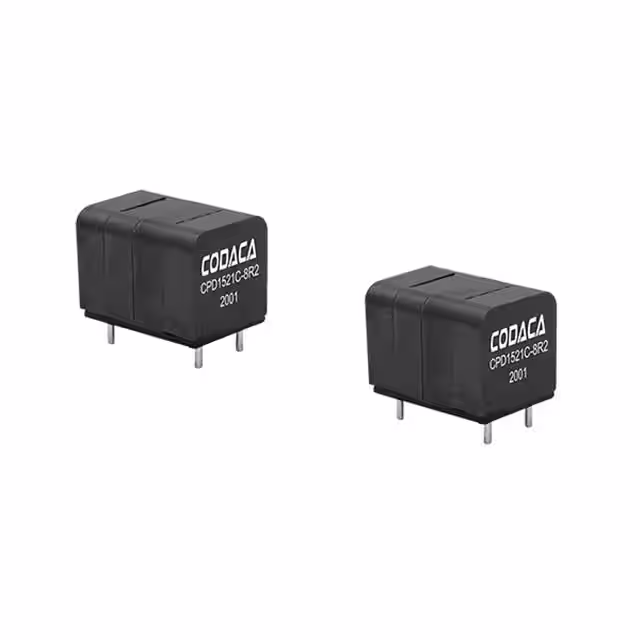

CPD1521C-220MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
231 |
|
Datasheet |
CPD1521C | Nonstandard | Tray | Active | Wirewound | Ferrite | 22 µH | ±20% | 8 A | 10A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.846" L x 0.591" W (21.50mm x 15.00mm) | 0.618" (15.70mm) |
|
|
CPD1521C-100MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
144 |
|
Datasheet |
CPD1521C | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 11 A | 15A | Shielded | 8.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Radial - 4 Leads | 0.846" L x 0.591" W (21.50mm x 15.00mm) | 0.618" (15.70mm) |
|
CSBL2212-150MSMD HIGH CURRENT POWER INDUCTOR CODACA |
108 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 15 µH | ±20% | 18 A | 26A | Shielded | 5.45mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
CSBL2212-3R3MSMD HIGH CURRENT POWER INDUCTOR CODACA |
103 |
|
Datasheet |
CSBL2212 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 3.3 µH | ±20% | 32 A | 50A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | Flat Wire, High Q Value | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
