Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPRH74-101MSMD POWER INDUCTOR CODACA |
34 |
|
Datasheet |
SPRH74 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.08 A | 850mA | Shielded | 388mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.165" (4.20mm) |
|
|
SPQ105-100MSMD POWER INDUCTOR CODACA |
100 |
|
Datasheet |
SPQ105 | 2-SMD | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.25 A | 4.5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Drum Core, Power Inductor | Surface Mount | 2-SMD | 0.490" L x 0.401" W (10.40mm x 10.20mm) | 0.189" (4.80mm) |
|

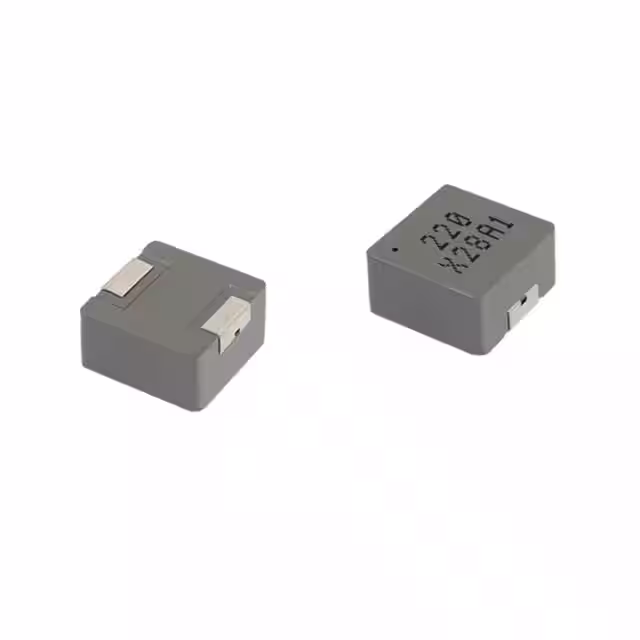

CSAC0530-6R8MSMD MOLDING POWER CHOKE CODACA |
1,000 |
|
Datasheet |
CSAC0530 | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 3.2 A | 4.3A | Shielded | 102mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.207" W (5.45mm x 5.25mm) | 0.122" (3.10mm) |
|
|
CSAB1040A-100MSMD MOLDING POWER CHOKE CODACA |
790 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 10 µH | ±20% | 6.9 A | 9.3A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-470MSMD MOLDING POWER CHOKE CODACA |
775 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 47 µH | ±20% | 3.1 A | 4.5A | Shielded | 145mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Molded Inductors, Molding Power Choke | Surface Mount | 2-SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-2R2MSMD MOLDING POWER CHOKE CODACA |
772 |
|
Datasheet |
CSAB1040A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 13.2 A | 25A | Shielded | 8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-1R0MSMD MOLDING POWER CHOKE CODACA |
770 |
|
Datasheet |
CSAB1040A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 1 µH | ±20% | 21.5 A | 28A | Shielded | 3.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-1R5MSMD MOLDING POWER CHOKE CODACA |
757 |
|
Datasheet |
CSAB1040A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 18 A | 26A | Shielded | 4.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|
|
CSAB1040A-R68MSMD MOLDING POWER CHOKE CODACA |
745 |
|
Datasheet |
CSAB1040A | 2-SMD | Cut Tape (CT) | Active | Molded | Alloy Powder | 680 nH | ±20% | 25 A | 33A | Shielded | 2.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.394" L x 0.453" W (10.00mm x 11.50mm) | 0.157" (4.00mm) |
|
VSAB0530-6R8MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
730 |
|
Datasheet |
VSAB0530 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 3.3 A | 3.1A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.215" L x 0.205" W (5.45mm x 5.20mm) | 0.118" (3.00mm) |
