Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

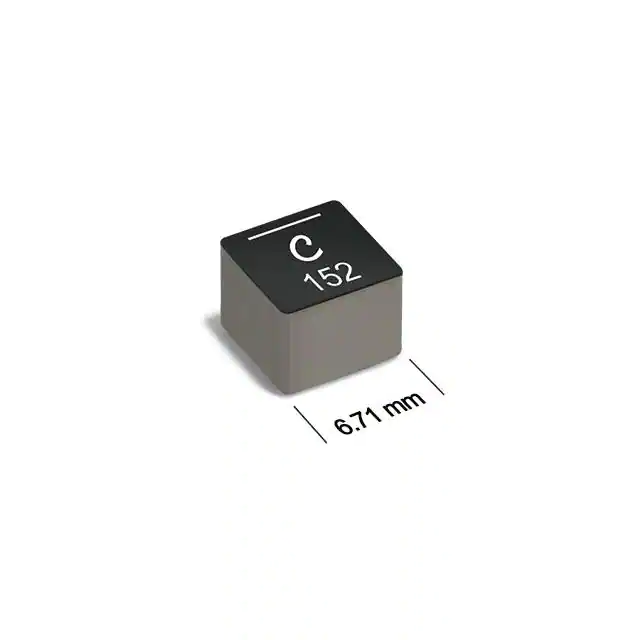

XGL6060-471MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
427 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 470 nH | ±20% | 26 A | 29.5A | Shielded | 1.8mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
XEL6060-561MECFIXED IND 560NH 27.7A 2.9MOHM SM Coilcraft |
317 |
|
Datasheet |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 27.7 A | 23A | Shielded | 2.9mOhm Max | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XGL6060-103MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
110 |
|
Datasheet |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 10 µH | ±20% | 9.1 A | 7.3A | Shielded | 20.4mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
SER2013-472MLDFIXED IND 4.7UH 30A 1.82MOHM SM Coilcraft |
6,970 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 30 A | 18A | Shielded | 1.82mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.510" (12.95mm) |
|
|
SER2013-402MLDFIXED IND 4UH 30A 1.82MOHM SM Coilcraft |
2,266 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4 µH | ±20% | 30 A | 20A | Shielded | 1.82mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2013 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.510" (12.95mm) |
|
|
SER2013-362MLDFIXED IND 3.6UH 30A 1.82MOHM SM Coilcraft |
997 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.6 µH | ±20% | 30 A | 25A | Shielded | 1.82mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2013 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.510" (12.95mm) |
|
|
SER2013-202MLDFIXED IND 2UH 30A 1.82MOHM SM Coilcraft |
172 |
|
Datasheet |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±20% | 30 A | 40A | Shielded | 1.82mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2013 | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.510" (12.95mm) |
|
|
MSS1210-473MEDFIXED IND 47UH 3A 56MOHM SM Coilcraft |
7,514 |
|
Datasheet |
MSS1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 47 µH | ±20% | 3 A | 4.5A | Shielded | 56mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
MSS1210-474KEDFIXED IND 470UH 980MA 510MOHM SM Coilcraft |
4,438 |
|
Datasheet |
MSS1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 470 µH | ±10% | 980 mA | 1.4A | Shielded | 510mOhm Max | - | 1.6MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
MSS1210-333MEDFIXED IND 33UH 3.8A 39MOHM SM Coilcraft |
4,407 |
|
Datasheet |
MSS1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 33 µH | ±20% | 3.8 A | 5.4A | Shielded | 39mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
