Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0805LS-392XGRCRF INDUCTOR, FERRITE CORE, 2% TO Coilcraft |
4,592 |
|
Datasheet |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 3.9 µH | ±2% | 300 mA | - | Unshielded | 1.7Ohm Max | 20 @ 7.9MHz | 52MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|

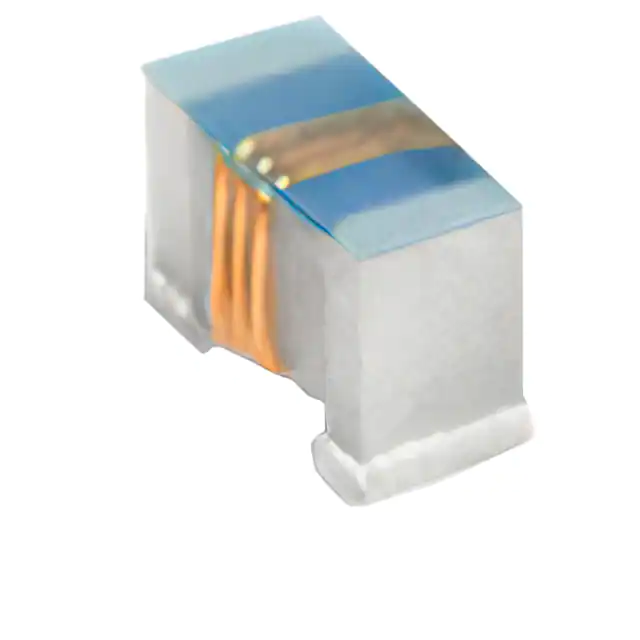

016008C-1N1XKRWFIXED INDUCTOR 0.0011UH SMD Coilcraft |
4,460 |
|
Datasheet |
016008C | 01005 (0402 Metric) | Strip | Active | Wirewound | Ceramic | 1.1 nH | ±10% | 415 mA | - | Unshielded | 95mOhm Max | 38 @ 900MHz | 21GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 1005 | 0.019" L x 0.011" W (0.47mm x 0.28mm) | 0.014" (0.35mm) |
|
0603LS-562XGRCRF INDUCTOR, FERRITE CORE, 2% TO Coilcraft |
1,570 |
|
Datasheet |
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 5.6 µH | ±2% | 240 mA | - | Unshielded | 2.6Ohm Max | 15 @ 7.9MHz | 32MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.050" W (1.80mm x 1.27mm) | 0.044" (1.11mm) |
|
|
0805LS-122XGRCRF INDUCTOR, FERRITE CORE, 2% TO Coilcraft |
442 |
|
Datasheet |
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 1.2 µH | ±2% | 400 mA | - | Unshielded | 1.2Ohm Max | 15 @ 7.9MHz | 280MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|
1812PS-272KRCFIXED IND 2.7UH 2.3A 80MOHM SM Coilcraft |
128,475 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 2.7 µH | ±10% | 2.3 A | 1.4A | Shielded | 80mOhm Max | 40 @ 1MHz | 265MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-104KRCFIXED IND 100UH 650MA 1.32OHM SM Coilcraft |
2,104 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 100 µH | ±10% | 650 mA | 270mA | Shielded | 1.32Ohm Max | 60 @ 1MHz | 14MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-224KRCFIXED IND 220UH 470MA 2.65OHM SM Coilcraft |
1,165 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 220 µH | ±10% | 470 mA | 170mA | Shielded | 2.65Ohm Max | 60 @ 1MHz | 7MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-392KRCFIXED IND 3.9UH 2.2A 110MOHM SM Coilcraft |
461 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 3.9 µH | ±10% | 2.2 A | 1.2A | Shielded | 110mOhm Max | 40 @ 1MHz | 170MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-154KRCFIXED IND 150UH 510MA 2.2OHM SM Coilcraft |
262 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 150 µH | ±10% | 510 mA | 200mA | Shielded | 2.2Ohm Max | 60 @ 1MHz | 11MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
1812PS-564KRCFIXED IND 560UH 280MA 6.1OHM SM Coilcraft |
262 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 560 µH | ±10% | 280 mA | 110mA | Shielded | 6.1Ohm Max | 40 @ 1MHz | 2.6MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
