Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM10065VT-220M-DFIXED IND 22UH 5.4A 0.0433OHM SM |
447 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 5.4 A | 7.8A | 1006 | Shielded | 43.3mOhm | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.413" L x 0.394" W (10.50mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
DFE32CAHR68MR0LFIXED IND 0.68UH 7A |
410 |
|
Datasheet |
DFE32CAH_R0 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 5 A | 7A | 1210 | Shielded | 17mOhm Max | 680 nH | - | - | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 150°C | 1 MHz | 0.079" (2.00mm) |
|
IHLP2525CZER3R3M5AFIXED IND 3.3UH 6.8A 28.4MOHM SM |
355 |
|
Datasheet |
IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 6.8 A | 8.3A | - | Shielded | 28.4mOhm Max | 3.3 µH | - | 28.6MHz | Surface Mount | AEC-Q200 | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SRR1240-5R6MFIXED IND 5.6UH 5.4A 20 MOHM SMD |
298 |
|
Datasheet |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.4 A | 5.1A | - | Shielded | 20mOhm Max | 5.6 µH | 14 @ 7.96MHz | 35MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
DR124-330-RFIXED IND 33UH 2.6A 97 MOHM SMD |
143 |
|
Datasheet |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.6 A | 3.12A | - | Shielded | 97mOhm Max | 33 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
B82472G6473M000FIXED IND 47UH 1A 200 MOHM SMD |
15,089 |
|
Datasheet |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1 A | 900mA | - | Shielded | 200mOhm Max | 47 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|

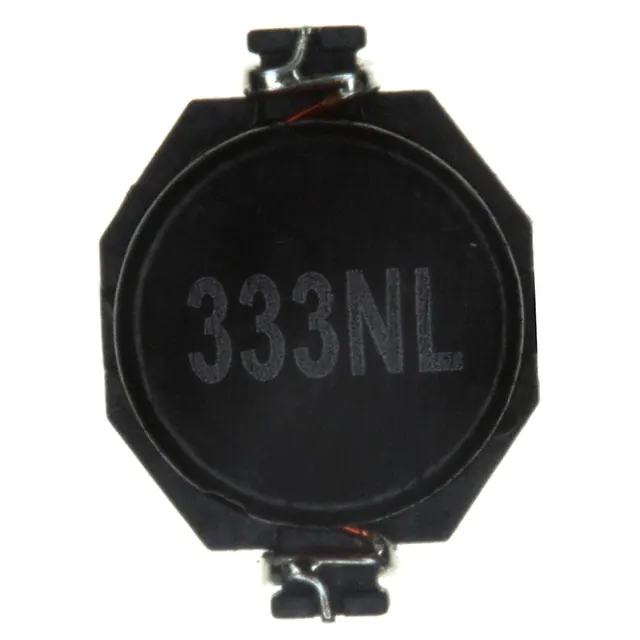

P0751.333NLTFIXED IND 33UH 2A 120 MOHM SMD |
5,754 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2 A | 2A | - | Unshielded | 120mOhm Max | 33 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|
P0751.683NLTFIXED IND 68UH 1.4A 240 MOHM SMD |
4,269 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.4 A | 1.4A | - | Unshielded | 240mOhm Max | 68 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|
PA4342.333NLTFIXED IND 33UH 3.5A 112 MOHM SMD |
3,693 |
|
Datasheet |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.5 A | 5A | - | Shielded | 112mOhm Max | 33 µH | - | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
SPM3010T-3R3M-LRFIXED IND 3.3UH 1.9A 218.5 MOHM |
3,247 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.9 A | 2.2A | - | Shielded | 218.5mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.039" (1.00mm) |
|
SPM6530T-100M-HZFIXED IND 10UH 4.2A 86.35MOHM SM |
3,195 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4.2 A | 2.9A | - | Shielded | 86.35mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
IHLP2020BZERR10M01FIXED IND 100NH 17A 3.9 MOHM SMD |
2,962 |
|
Datasheet |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 17 A | 45A | - | Shielded | 3.9mOhm Max | 100 nH | - | 239MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
P0751.103NLTFIXED IND 10UH 3.8A 50 MOHM SMD |
2,165 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.8 A | 3.8A | - | Unshielded | 50mOhm Max | 10 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|

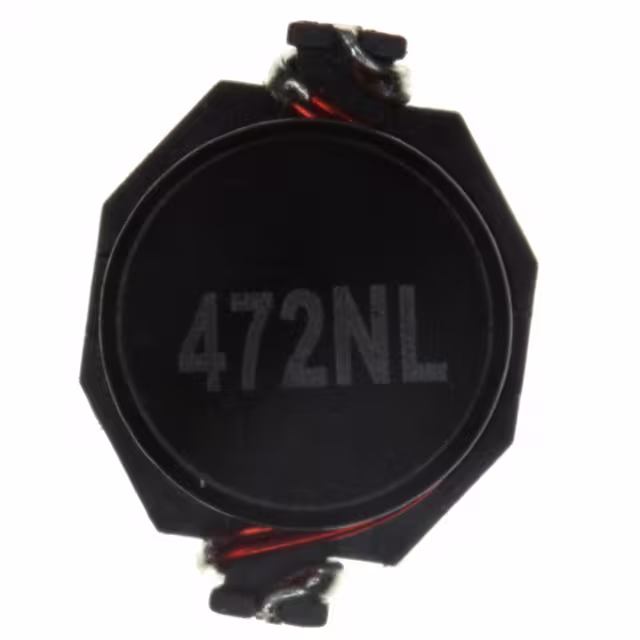

P0751.472NLTFIXED IND 4.7UH 4.8A 33 MOHM SMD |
1,607 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 4.8 A | 5.4A | - | Unshielded | 33mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
|
UP1B-101-RFIXED IND 100UH 470MA 1.11OHM SM |
1,198 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 470 mA | 530mA | - | Unshielded | 1.11Ohm Max | 100 µH | - | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | - | -40°C ~ 85°C | 100 kHz | 0.197" (5.00mm) |
|
|
IHLP2525AHERR68M01FIXED IND 680NH 9A 13.9 MOHM SMD |
976 |
|
Datasheet |
IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9 A | 17A | - | Shielded | 13.9mOhm Max | 680 nH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
WTX322512TAR47MTFIXED IND 0.4720%UH 0.020OHM 900 |
640 |
|
Datasheet |
WT | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 6.1 A | 9A | 1210 | Unshielded | 24mOhm Max | 470 nH | - | 80MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 155°C | 1 MHz | 0.047" (1.20mm) |
|
SPM10040T-3R3MFIXED IND 3.3UH 9.8A 11 MOHM SMD |
557 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 9.8 A | 11A | - | Shielded | 11mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
B82472G6332M000FIXED IND 3.3UH 2.85A 23MOHM SMD |
450 |
|
Datasheet |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.85 A | 2.5A | - | Shielded | 23mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
CDR6D28MNNP-470NCFIXED IND 47UH 720MA 458.8 MOHM |
57,416 |
|
Datasheet |
CDR6D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 720 mA | 1.05A | - | Shielded | 458.8mOhm Max | 47 µH | - | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
