Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LRC0603CS1N8GV001TFIXED IND 1.8NH 300MA 150MOHM SM |
50,702 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 150mOhm Max | 12 @ 100MHz | 23GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQP03TN2N1B02DFIXED IND 2.1NH 600MA 150MOHM SM |
49,947 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 2.1 nH | ±0.1nH | 600 mA | - | Unshielded | 150mOhm Max | 14 @ 500MHz | 11GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LRC0402CS5N6GV001TFIXED IND 5.6NH 300MA 270MOHM SM |
49,684 |
|
Datasheet |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 300 mA | - | Unshielded | 270mOhm Max | 8 @ 100MHz | 5.4GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LQP03TN33NH02DFIXED IND 33NH 120MA 2.95OHM SMD |
49,504 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 33 nH | ±3% | 120 mA | - | Unshielded | 2.95Ohm Max | 9 @ 300MHz | 1.7GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQP03TN3N7B02DFIXED IND 3.7NH 400MA 300MOHM SM |
48,720 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.7 nH | ±0.1nH | 400 mA | - | Unshielded | 300mOhm Max | 14 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LRC0603CJR18GV001TFIXED IND 180NH 300MA 2.7OHM SMD |
48,349 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 180 nH | ±5% | 300 mA | - | Unshielded | 2.7Ohm Max | 8 @ 50MHz | 550MHz | - | -55°C ~ 100°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQG15HS1N2S02DFIXED IND 1.2NH 1A 0.09OHM SMD |
47,939 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.2 nH | ±0.3nH | 1 A | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQP03TN3N1B02DFIXED IND 3.1NH 450MA 250MOHM SM |
47,823 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.1 nH | ±0.1nH | 450 mA | - | Unshielded | 250mOhm Max | 14 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQG15HN6N8J02DFIXED IND 6.8NH 600MA 0.21OHM SM |
47,569 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 6.8 nH | ±5% | 600 mA | - | Unshielded | 210mOhm Max | 8 @ 100MHz | 4.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LRC0201BS2N2GV001TFIXED IND 2.2NH 300MA 260MOHM SM |
47,535 |
|
Datasheet |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 260mOhm Max | 4 @ 100MHz | 9.5GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
AIML-0603-4R7K-TFIXED IND 4.7UH 15MA 2.1 OHM SMD |
47,378 |
|
Datasheet |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 15 mA | - | Shielded | 2.1Ohm Max | 35 @ 10MHz | 50MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQP03TN2N3B02DFIXED IND 2.3NH 500MA 200MOHM SM |
47,153 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 2.3 nH | ±0.1nH | 500 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
-2,00mm.jpg)
|

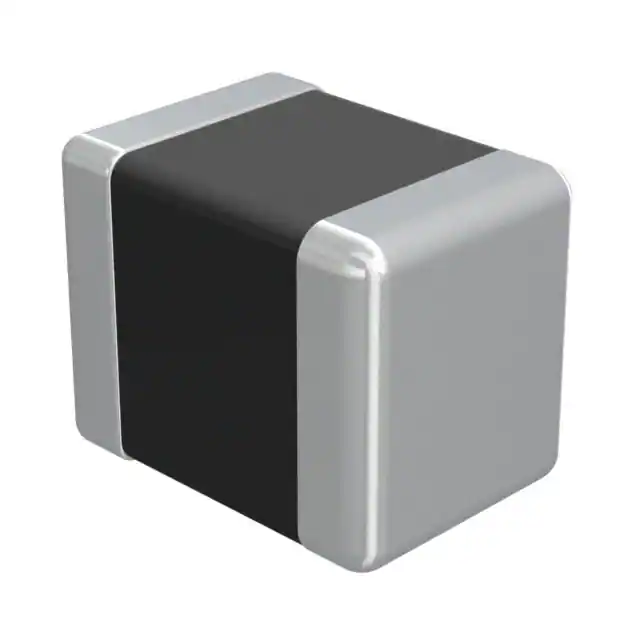

CB2518T100KFIXED IND 10UH 820MA 325MOHM SMD |
46,988 |
|
Datasheet |
CB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 820 mA | 250mA | Unshielded | 325mOhm Max | - | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
LQG15HZ27NJ02DFIXED IND 27NH 350MA 0.46OHM SMD |
46,801 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 27 nH | ±5% | 350 mA | - | Unshielded | 460mOhm Max | 8 @ 100MHz | 1.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQP03TN0N8B02DFIXED IND 0.8NH 800MA 80MOHM SMD |
46,294 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 0.8 nH | ±0.1nH | 800 mA | - | Unshielded | 80mOhm Max | 14 @ 500MHz | 18GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
MLZ2012DR10DT000FIXED IND 100NH 1.15A 70MOHM SMD |
46,165 |
|
Datasheet |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±20% | 1.15 A | 1A | Shielded | 70mOhm | - | 500MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LQP03TN30NH02DFIXED IND 30NH 120MA 2.95OHM SMD |
46,105 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 30 nH | ±3% | 120 mA | - | Unshielded | 2.95Ohm Max | 9 @ 500MHz | 1.7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
AIMC-0603-15NJ-TFIXED IND 15NH 300MA 320MOHM SMD |
45,010 |
|
Datasheet |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 300 mA | - | Unshielded | 320mOhm Max | 12 @ 100MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQP03TN47NH02DFIXED IND 47NH 100MA 3.6 OHM SMD |
44,789 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 47 nH | ±3% | 100 mA | - | Unshielded | 3.6Ohm Max | 9 @ 300MHz | 1.3GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQP03TN47NJ02DFIXED IND 47NH 100MA 3.6 OHM SMD |
44,626 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 47 nH | ±5% | 100 mA | - | Unshielded | 3.6Ohm Max | 9 @ 300MHz | 1.3GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
