Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
894AT7502RMLFHORIZONTAL TOROIDAL INDUCTOR |
2,942 |
|
Datasheet |
ATRM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 75 µH | ±10% | 8 A | 12A | Shielded | 23mOhm Max | - | 2MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.339" Dia (34.00mm) | 0.800" (20.32mm) |
|
|
121AT2502HMHORIZ STANDOFF TOROIDAL CHOKE |
2,638 |
|
Datasheet |
ATHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 25 µH | ±10% | 6.34 A | 10.5A | Shielded | 17mOhm Max | - | 5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.900" Dia (22.86mm) | 0.500" (12.70mm) |
|
|
121AT7502HMHORIZ STANDOFF TOROIDAL CHOKE |
2,364 |
|
Datasheet |
ATHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 75 µH | ±10% | 3.9 A | 5.8A | Shielded | 45mOhm Max | - | 2MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.900" Dia (22.86mm) | 0.500" (12.70mm) |
|
|
894AT5002RMHORIZONTAL TOROIDAL INDUCTOR |
4,910 |
|
Datasheet |
ATRM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 9.9 A | 15.2A | Shielded | 16mOhm Max | - | 2.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.339" Dia (34.00mm) | 0.800" (20.32mm) |
|
|
894AT5002RMLFHORIZONTAL TOROIDAL INDUCTOR |
3,452 |
|
Datasheet |
ATRM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 9.9 A | 15.2A | Shielded | 16mOhm Max | - | 2.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.339" Dia (34.00mm) | 0.800" (20.32mm) |
|
|
121AT1002HMHORIZ STANDOFF TOROIDAL CHOKE |
3,531 |
|
Datasheet |
ATHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 10 µH | ±10% | 8.27 A | 14A | Shielded | 10mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.900" Dia (22.86mm) | 0.500" (12.70mm) |
|
CTDR6F-103KRADIAL LEADED DRUM CORE INDUCTOR |
3 |
|
Datasheet |
CTDR6F | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 10 mH | ±10% | 4 A | 2.6A | Unshielded | 1.16Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
|
|
050T5006HIGH INDUCTANCE TOROID INDUCTOR |
2,298 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 500 mH | ±2% | 23 mA | - | Unshielded | 300Ohm | - | 25kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.700" Dia (17.78mm) | 0.400" (10.16mm) |
|
|
894KM1003HCHORIZONTAL TOROIDAL CHOKE |
4,900 |
|
Datasheet |
KMHC | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 100 µH | ±10% | 8 A | 6A | Shielded | 23mOhm Max | - | 1.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.450" Dia (36.83mm) | 0.850" (21.59mm) |
|
|
DB4-105LFRADIAL POWER LINE CHOKE |
3,602 |
|
Datasheet |
DB4 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | Ferrite | 10 mH | ±10% | 1.3 A | 1.8A | Unshielded | 1.754Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.162" (29.51mm) |
|
|
203T1007HIGH INDUCTANCE TOROID INDUCTOR |
4,314 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 1 H | ±2% | 48 mA | - | Unshielded | 135Ohm Max | - | 18MHz | AEC-Q200 | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.500" (12.70mm) |
|

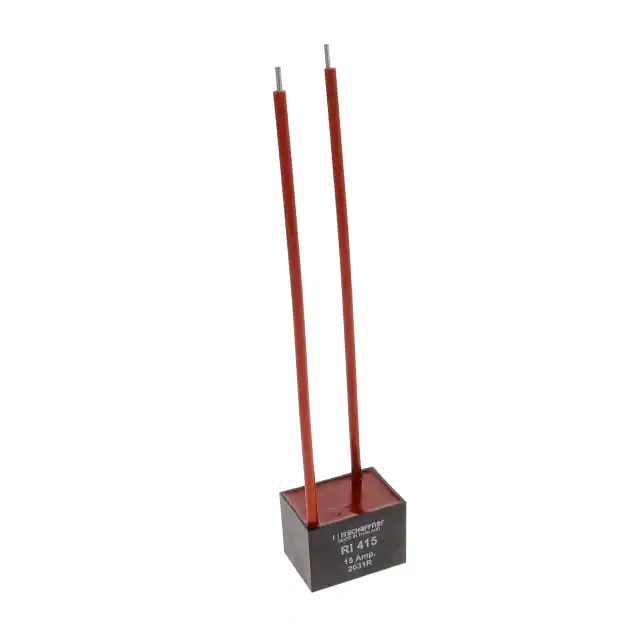

RI415FIXED IND 300UH 15A 8 MOHM TH |
2,759 |
|
Datasheet |
RI | Radial, Vertical | Tray | Obsolete | - | - | 300 µH | - | 15 A | - | Unshielded | 8mOhm | - | - | - | -25°C ~ 110°C | 1 kHz | - | Through Hole | - | 1.929" L x 1.378" W (49.00mm x 35.00mm) | 1.339" (34.00mm) |
|
|
894KM1503HCHORIZONTAL TOROIDAL CHOKE |
4,858 |
|
Datasheet |
KMHC | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 150 µH | ±10% | 6.5 A | 4.3A | Shielded | 35mOhm Max | - | 1MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.450" Dia (36.83mm) | 0.850" (21.59mm) |
|
|
206T1007LFHIGH INDUCTANCE TOROID INDUCTOR |
2,010 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 1 H | ±2% | 29 mA | - | Unshielded | 18Ohm Max | - | 220kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.500" (12.70mm) |
|
|
047T1007HIGH INDUCTANCE TOROID INDUCTOR |
2,480 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 1 H | ±2% | 18 mA | - | Unshielded | 290Ohm Max | - | 20kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.700" Dia (17.78mm) | 0.400" (10.16mm) |
|
|
38HF5003HHORIZONTAL TOROIDAL INDUCTOR |
4,368 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 500 µH | ±10% | 685 mA | 620mA | Unshielded | 700mOhm Max | - | 1MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.460" Dia (11.68mm) | 0.180" (4.57mm) |
|

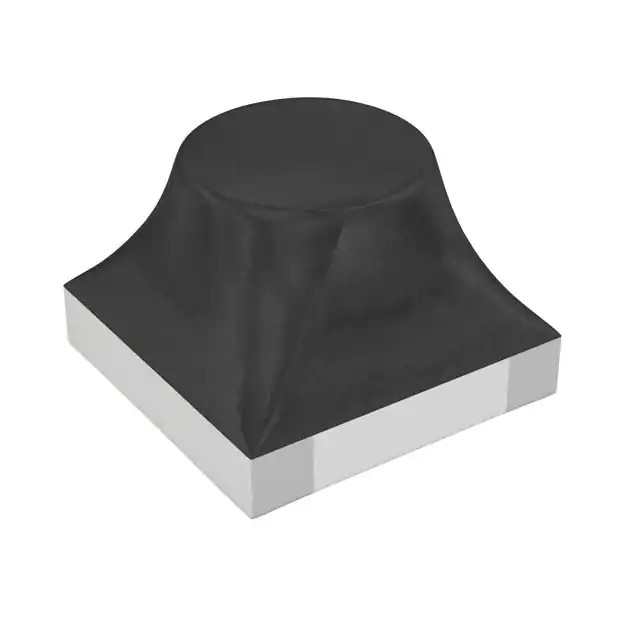

103-102FSFIXED IND 1UH 425MA 540 MOHM SMD |
3,400 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±1% | 425 mA | - | Unshielded | 540mOhm Max | 22 @ 25MHz | 145MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-103FSFIXED IND 10UH 165MA 3.45OHM SMD |
4,898 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±1% | 165 mA | - | Unshielded | 3.45Ohm Max | 24 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-121FSFIXED IND 120NH 880MA 125MOHM SM |
3,285 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±1% | 880 mA | - | Unshielded | 125mOhm Max | 30 @ 25MHz | 750MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
103-122FSFIXED IND 1.2UH 360MA 740MOHM SM |
2,734 |
|
Datasheet |
103 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±1% | 360 mA | - | Unshielded | 740mOhm Max | 22 @ 7.9MHz | 130MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
