Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

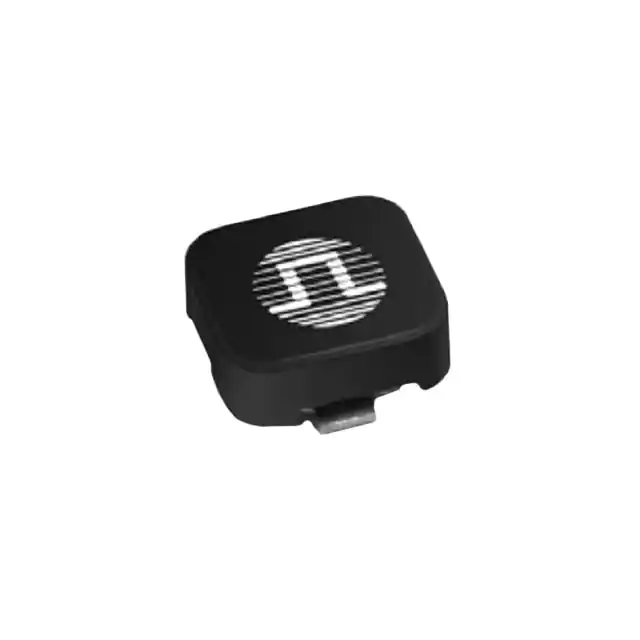

PF0601.183NLTFIXED IND 18UH 800MA 210MOHM SMD |
3,490 |
|
Datasheet |
PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 800 mA | 800mA | Shielded | 210mOhm Max | - | 23MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PF0601.274NLTFIXED IND 270UH 220MA 3 OHM SMD |
4,590 |
|
Datasheet |
PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±20% | 220 mA | 220mA | Shielded | 3Ohm Max | - | 5.8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PF0601.123NLTFIXED IND 12UH 1A 140 MOHM SMD |
4,479 |
|
Datasheet |
PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 1 A | 1A | Shielded | 140mOhm Max | - | 30MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PF0601.103NLTFIXED IND 10UH 1.1A 135 MOHM SMD |
3,626 |
|
Datasheet |
PF0601NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | 1.1A | Shielded | 135mOhm Max | - | 31MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.118" (3.00mm) |
|

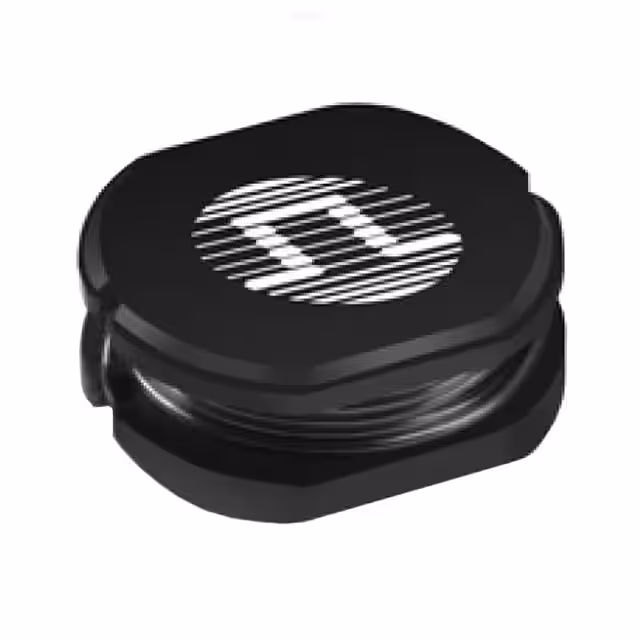

PF0581.123NLTFIXED IND 12UH 2.3A 48 MOHM SMD |
2,692 |
|
Datasheet |
PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±10% | 2.3 A | 2.3A | Unshielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
|
PF0581.823NLTFIXED IND 82UH 850MA 262MOHM SMD |
3,583 |
|
Datasheet |
PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±10% | 850 mA | 850mA | Unshielded | 262mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
PA1294.910NLTFIXED IND 910NH 39A 0.48MOHM SMD |
4,841 |
|
Datasheet |
PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 910 nH | ±15% | 39 A | 46A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PA1294.650NLTFIXED IND 650NH 54A 0.48MOHM SMD |
2,450 |
|
Datasheet |
PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 650 nH | ±15% | 54 A | 63A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
PA1294.132NLTFIXED IND 1.3UH 25A 0.48MOHM SMD |
4,732 |
|
Datasheet |
PA1294NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1.3 µH | ±15% | 25 A | 29A | Shielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
PF0465.104NLTFIXED IND 100UH 650MA 350MOHM SM |
2,305 |
|
Datasheet |
PF0465NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 650 mA | 650mA | Shielded | 350mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.205" (5.20mm) |
|
|
PF0581.184NLTFIXED IND 180UH 560MA 620MOHM SM |
4,335 |
|
Datasheet |
PF0581NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±10% | 560 mA | 560mA | Unshielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.406" L x 0.367" W (10.32mm x 9.32mm) | 0.174" (4.42mm) |
|
PF0580.223NLTFIXED IND 22UH 750MA 280MOHM SMD |
3,757 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±15% | 750 mA | 750mA | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.382NLTFIXED IND 3.8UH 1.7A 68 MOHM SMD |
3,779 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.8 µH | ±15% | 1.7 A | 1.7A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
P0467NLTFIXED IND 422.5UH 300MA 1.185OHM |
2,625 |
|
Datasheet |
Ros 2 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 422.5 µH | ±15% | 300 mA | - | Shielded | 1.185Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|
|
PF0580.683NLTFIXED IND 68UH 410MA 827MOHM SMD |
2,790 |
|
Datasheet |
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±15% | 410 mA | 410mA | Unshielded | 827mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|

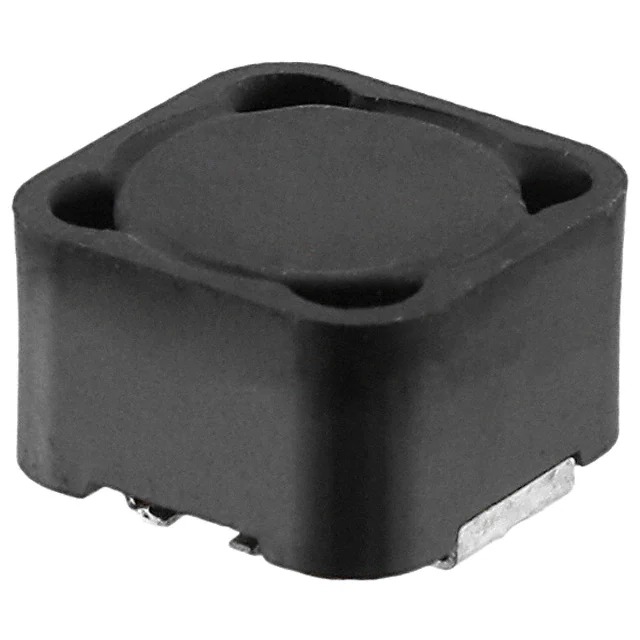

P1172.183NLTFIXED IND 18UH 4A 37 MOHM SMD |
4,075 |
|
Datasheet |
P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 4 A | 4.3A | Shielded | 37mOhm Max | - | 13MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
|
PG0138.472NLTFIXED IND 4.7UH 10.2A 12.4 MOHM |
4,002 |
|
Datasheet |
PG0138NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10.2 A | 10.2A | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.193" (4.90mm) |
|
P1171.334NLTFIXED IND 330UH 820MA 620MOHM SM |
2,786 |
|
Datasheet |
P1171NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 820 mA | 820mA | Shielded | 620mOhm Max | - | 3MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.236" (6.00mm) |
|
|
PG0006.462NLTFIXED IND 4.6UH 9A 10.4 MOHM SMD |
2,923 |
|
Datasheet |
PG0006NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.6 µH | ±20% | 9 A | 9A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.523" W (13.40mm x 13.28mm) | 0.236" (6.00mm) |
|
|
PA2083.121NLTFIXED IND 120NH 27A 0.6 MOHM SMD |
4,261 |
|
Datasheet |
PA2083NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±10% | 27 A | 55A | Shielded | 0.6mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
