Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RFC20-820K-RC82UH 10% RADIAL FLAT COIL |
0 |
|
Datasheet |
- | Radial | Box | Active | Wirewound | - | 82 µH | ±10% | 860 mA | - | Unshielded | 1.45Ohm Max | 50 @ 2.5MHz | - | - | -20°C ~ 100°C | 2.5 MHz | - | Through Hole | Radial | 0.400" L x 0.125" W (10.16mm x 3.18mm) | 0.400" (10.16mm) |
|
ASCH001005059N1JCPINDUCTOR RF |
0 |
|
Datasheet |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 9.1 nH | ±5% | 300 mA | - | Shielded | 260mOhm Max | 8 @ 100MHz | 3.9GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
BSCL00201212220K00INDUCTOR RF |
0 |
|
Datasheet |
BSCL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 5 mA | - | Unshielded | 1.1Ohm Max | 30 @ 1MHz | 16MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
BSCL003216113R3K00INDUCTOR RF |
0 |
|
Datasheet |
BSCL | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±10% | 60 mA | - | Unshielded | 700mOhm Max | 45 @ 10MHz | 41MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
ASCH00100505R22JCPINDUCTOR RF |
0 |
|
Datasheet |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±5% | 100 mA | - | Shielded | 4.2Ohm Max | 8 @ 100MHz | 500MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
BSCL00321611150M00INDUCTOR RF |
0 |
|
Datasheet |
BSCL | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 15 µH | ±20% | 5 mA | - | Unshielded | 700mOhm Max | 35 @ 1MHz | 19MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
ASCH001005057N5JCPINDUCTOR RF |
0 |
|
Datasheet |
ASCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 7.5 nH | ±5% | 300 mA | - | Shielded | 240mOhm Max | 8 @ 100MHz | 4.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
BKPB001608DZ4R7MA6INDUCTOR POWER |
0 |
|
Datasheet |
BKPB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 800 mA | 80mA | Shielded | 440mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

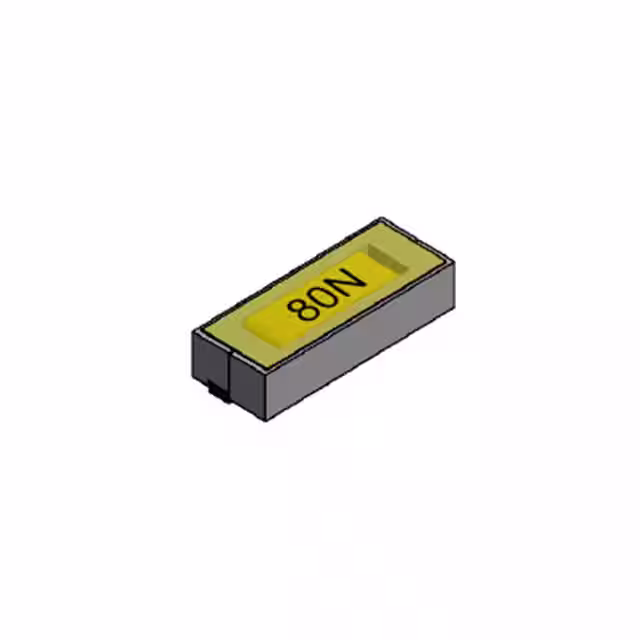

BPED0010042480NK2EINDUCTOR POWER |
0 |
|
Datasheet |
BPED | Nonstandard | Tape & Reel (TR) | Active | - | - | 80 nH | ±10% | 33 A | 80A | Shielded | 1.1mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.150" W (10.00mm x 3.80mm) | 0.094" (2.40mm) |
|
|
BPED0010042480NM2EINDUCTOR POWER |
0 |
|
Datasheet |
BPED | Nonstandard | Tape & Reel (TR) | Active | - | - | 80 nH | ±20% | 33 A | 80A | Shielded | 1.1mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.150" W (10.00mm x 3.80mm) | 0.094" (2.40mm) |
|
|
BSCL001608081R8K00INDUCTOR RF |
0 |
|
Datasheet |
BSCL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.8 µH | ±10% | 25 mA | - | Unshielded | 950mOhm Max | 35 @ 10MHz | 50MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
BSCL001608082R7K00INDUCTOR RF |
0 |
|
Datasheet |
BSCL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±10% | 15 mA | - | Unshielded | 1.15Ohm Max | 35 @ 10MHz | 40MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
BSCL00321611R18K00INDUCTOR RF |
0 |
|
Datasheet |
BSCL | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±10% | 250 mA | - | Unshielded | 400mOhm Max | 25 @ 25MHz | 185MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
BSCL00321611R33K00INDUCTOR RF |
0 |
|
Datasheet |
BSCL | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±10% | 250 mA | - | Unshielded | 600mOhm Max | 25 @ 25MHz | 145MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
|
BKPB002012C533NKA2INDUCTOR POWER |
0 |
|
Datasheet |
BKPB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 33 nH | ±10% | 1.8 A | 2.7A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
BKPA002520101R5T00INDUCTOR POWER |
0 |
|
Datasheet |
BKPA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±30% | 1.1 A | - | Shielded | 130mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
BKPB002012C533NMA2INDUCTOR POWER |
0 |
|
Datasheet |
BKPB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 33 nH | ±20% | 1.8 A | 2.7A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
BSCL0020120922NM00INDUCTOR RF |
0 |
|
Datasheet |
BSCL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 nH | ±20% | 300 mA | - | Unshielded | 200mOhm Max | 20 @ 50MHz | 320MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
RFC20-472K-RC4700UH10% RFC20 RADIAL FLT COIL |
0 |
|
Datasheet |
- | Radial | Tray | Active | Wirewound | - | 4.7 mH | ±10% | 110 mA | - | Unshielded | 28.9Ohm Max | 50 @ 250kHz | - | - | -20°C ~ 100°C | 250 kHz | - | Through Hole | Radial | 0.400" L x 0.150" W (10.16mm x 3.81mm) | 0.400" (10.16mm) |
|
RDC60-393K-RC39000UH 10% RADIAL DRUM CORE |
0 |
|
Datasheet |
RDC60 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 39 mH | ±10% | 1.4 A | 1.4A | Unshielded | 5.56Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 2.000" Dia (50.80mm) | 1.500" (38.10mm) |
