Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

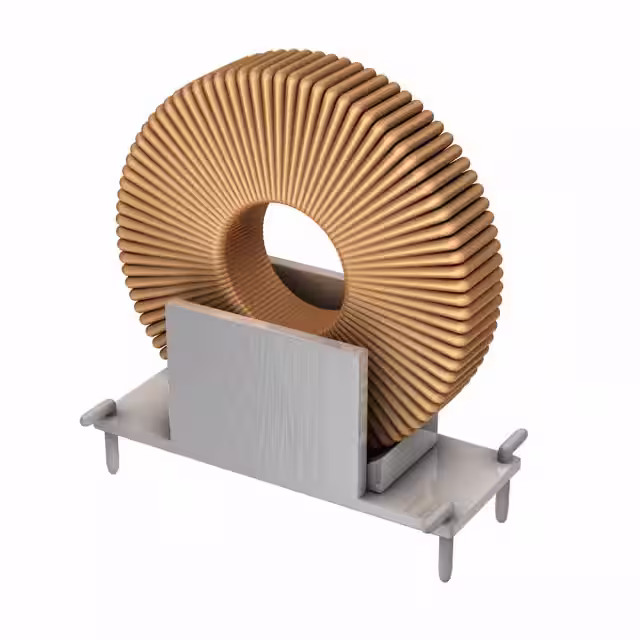

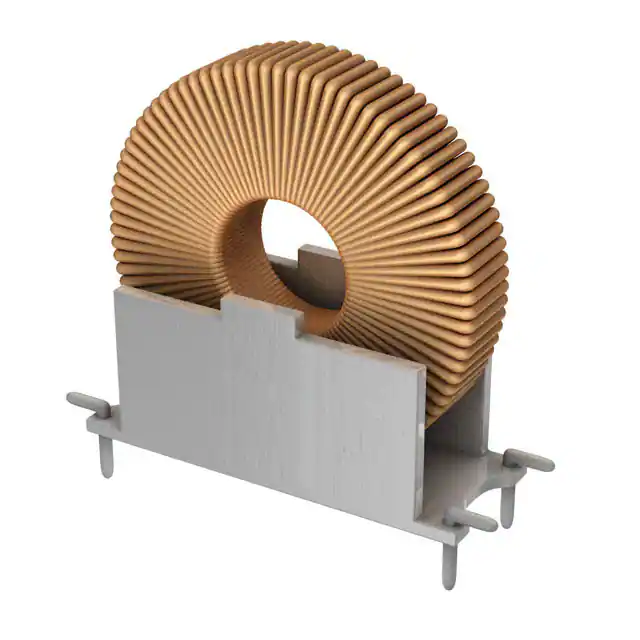

CTX20-5-52M-RFIXED IND 20UH 7.8A 26 MOHM TH Eaton - Electronics Division |
3,177 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 7.8 A | 9.3A | - | Unshielded | 26mOhm Max | 20 µH | - | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | - | -40°C ~ 75°C | 100 kHz | 1.004" (25.50mm) |
|
|
CTX500-1-52M-RFIXED IND 500UH 1.7A 361 MOHM TH Eaton - Electronics Division |
4,520 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 1.7 A | 1.9A | - | Unshielded | 361mOhm Max | 500 µH | - | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | - | -40°C ~ 75°C | 100 kHz | 0.984" (25.00mm) |
|
CTX10-7-52LP-RFIXED IND 10UH 11.4A 8 MOHM TH Eaton - Electronics Division |
4,868 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 11.4 A | 13.5A | - | Unshielded | 8mOhm Max | 10 µH | - | - | Through Hole | - | 1.012" Dia (25.70mm) | - | -40°C ~ 75°C | 100 kHz | 0.709" (18.00mm) |
|
CTX150-2-52M-RFIXED IND 150UH 4.3A 71.9MOHM TH Eaton - Electronics Division |
3,356 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 4.3 A | 4A | - | Unshielded | 71.9mOhm Max | 150 µH | - | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | - | -40°C ~ 75°C | 100 kHz | 1.280" (32.50mm) |
|
CTX10-7-52M-RFIXED IND 10UH 11.4A 8 MOHM TH Eaton - Electronics Division |
3,446 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 11.4 A | 13.5A | - | Unshielded | 8mOhm Max | 10 µH | - | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | - | -40°C ~ 75°C | 100 kHz | 1.051" (26.70mm) |
|
CTX22-15557FIXED IND 1MH 1.3A 470 MOHM SMD Eaton - Electronics Division |
3,435 |
|
Datasheet |
PFC | 10-SMD, Gull Wing | Bulk | Obsolete | Toroidal | Ferrite | - | 1.3 A | - | 10-SMT | Unshielded | 470mOhm Max | 1 mH | - | - | Surface Mount | - | 1.252" L x 1.063" W (31.80mm x 27.00mm) | - | -20°C ~ 105°C | 100 kHz | 0.516" (13.10mm) |
|
|
CTX750-1-52LP-RFIXED IND 750UH 1.8A 434 MOHM TH Eaton - Electronics Division |
2,402 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 1.8 A | 2.4A | - | Unshielded | 434mOhm Max | 750 µH | - | - | Through Hole | - | 1.173" Dia (29.80mm) | - | -40°C ~ 75°C | 100 kHz | 0.685" (17.40mm) |
|
CTX16-18405-RFIXED IND 140UH 3.2A 190 MOHM TH Eaton - Electronics Division |
2,706 |
|
Datasheet |
PFC | Radial, Horizontal, 4 Leads (Open) | Bulk | Obsolete | Toroidal | - | - | 3.2 A | - | - | Unshielded | 190mOhm Max | 140 µH | - | - | Through Hole | - | 0.827" Dia (21.00mm) | - | -20°C ~ 105°C | - | 0.433" (11.00mm) |
|
|
CTX750-1-52-RFIXED IND 750UH 1.8A 434 MOHM TH Eaton - Electronics Division |
2,171 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 1.8 A | 2.4A | - | Unshielded | 434mOhm Max | 750 µH | - | - | Through Hole | - | 1.173" Dia x 0.685" W (29.80mm x 17.40mm) | - | -40°C ~ 75°C | 100 kHz | - |
|
|
CTX1000-1-52LPRFIXED IND 1MH 1.5A 638 MOHM TH Eaton - Electronics Division |
4,252 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 1.5 A | 2.1A | - | Unshielded | 638mOhm Max | 1 mH | - | - | Through Hole | - | 1.173" Dia (29.80mm) | - | -40°C ~ 75°C | 100 kHz | 1.228" (31.20mm) |
