Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR4528A-271MFIXED IND 270UH 340MA 1.612 OHM |
1,765 |
|
Datasheet |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 340 mA | 190mA | - | Shielded | 1.612Ohm Max | 270 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
MWSA0402S-220MTFIXED IND 22UH 1.2A 363MOHM SMD |
1,185 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 1.2 A | 1.4A | - | Shielded | 363mOhm Max | 22 µH | - | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
RL622-563K-RCFIXED IND 56MH 20MA 135 OHM TH |
8,574 |
|
Datasheet |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 20 mA | - | - | Unshielded | 135Ohm Max | 56 mH | 20 @ 79.6kHz | 100kHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 79.6 kHz | 0.433" (11.00mm) |
|
BPSC00101140150M00FIXED IND 15UH 55 MOHM SMD |
6,582 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | - | 3.4A | - | Shielded | 55mOhm Max | 15 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 105°C | 100 kHz | 0.157" (4.00mm) |
|
|
BPSC000303204R7MHPFIXED IND 4.7UH 1.2A 140MOHM SMD |
6,000 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 1.2 A | 1A | - | Shielded | 140mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | - | -30°C ~ 100°C | 100 kHz | 0.079" (2.00mm) |
|
|
BPSC001011406R8M00FIXED IND 6.8UH 31 MOHM SMD |
5,630 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | - | 5A | - | Shielded | 31mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 105°C | 100 kHz | 0.157" (4.00mm) |
|
SPM5030VT-R47M-DFIXED IND 470NH 12.9A 0.0054OHM |
5,535 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 12.9 A | 14.7A | 5030 | Shielded | 5.4mOhm | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
BPSC000505304R7MS0FIXED IND 4.7UH 162 MOHM SMD |
3,869 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | - | 840mA | - | Shielded | 162mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -30°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCDDS-R22MCFIXED IND 220NH 24A 3 MOHM SMD |
2,613 |
|
Datasheet |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 23 A | 40A | SMD | Shielded | 3.2mOhm Max | 220 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCCDS-330MCFIXED IND 33UH 2.1A 258MOHM SMD |
2,039 |
|
Datasheet |
0630CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 2.1 A | 2.3A | - | Shielded | 258mOhm Max | 33 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
BPSC00060630100MS0INDUCTOR POWER |
1,500 |
|
Datasheet |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | - | 950mA | - | Shielded | 65mOhm Max | 10 µH | - | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | - | -30°C ~ 100°C | 10 kHz | 0.118" (3.00mm) |
|
0630CDMCDDS-R20MCFIXED IND 200NH SMD |
1,497 |
|
Datasheet |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 24 A | 41A | SMD | Shielded | 3mOhm Max | 200 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCDDS-2R0MCFIXED IND 2UH SMD |
1,409 |
|
Datasheet |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 9.5 A | 14.8A | SMD | Shielded | 18mOhm Max | 2 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCDDS-R82MCFIXED IND 820NH 14.8A 6MOHM SMD |
1,232 |
|
Datasheet |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 16 A | 20.8A | SMD | Shielded | 8mOhm Max | 820 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCDDS-R56MCFIXED IND 560NH 18.8A 4.5MOHM SM |
1,135 |
|
Datasheet |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 18.8 A | 23.8A | SMD | Shielded | 5mOhm Max | 560 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCDDS-R47MCFIXED IND 470NH 20A 4.1MOHM SMD |
3,176 |
|
Datasheet |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 19.5 A | 24.6A | SMD | Shielded | 4.2mOhm Max | 470 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
ECS-MPI4040R2-4R7-RFIXED IND 4.7UH 2.2A 105MOHM SMD |
2,898 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.2 A | 4.3A | - | Shielded | 105mOhm | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.175" L x 0.160" W (4.45mm x 4.06mm) | - | -55°C ~ 125°C | 100 kHz | 0.059" (1.50mm) |
|
AMDLA3020Q-3R3MTFIXED IND 3.3UH 2.8A 83 MOHM SMD |
2,795 |
|
Datasheet |
AMDLA3020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 2.6 A | 3.7A | - | Shielded | 94mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.134" L x 0.118" W (3.40mm x 3.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.079" (2.00mm) |
|
AIUR-02H-101KFIXED IND 100UH 720MA 210MOHM TH |
2,421 |
|
Datasheet |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 720 mA | 1.4A | - | Unshielded | 210mOhm Max | 100 µH | 20 @ 790kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.472" (12.00mm) |
|

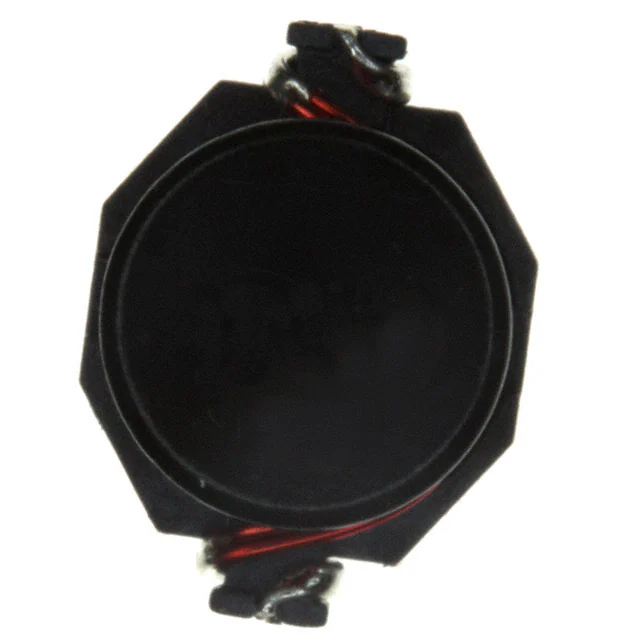

P0751.222NLTFIXED IND 2.2UH 6.1A 15 MOHM SMD |
5,767 |
|
Datasheet |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 6.1 A | 7A | - | Unshielded | 15mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.215" (5.46mm) |
