Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLF2012C180KT000FIXED IND 18UH 5MA 800 MOHM SMD |
2,070 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 18 µH | ±10% | 5 mA | - | Shielded | 800mOhm Max | 30 @ 1MHz | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LQW18AN16NG00DFIXED IND 16NH 550MA 0.16OHM SMD |
2,033 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 16 nH | ±2% | 550 mA | - | Unshielded | 160mOhm Max | 40 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AN5N6C00DFIXED IND 5.6NH 750MA 0.082OHM |
1,858 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.6 nH | ±0.2nH | 750 mA | - | Unshielded | 82mOhm Max | 35 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQNA251818T102KFIXED IND 1MH 75MA 31.2 OHM SMD |
1,747 |
|
Datasheet |
LSQN | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±10% | 25 mA | 25mA | Unshielded | 31.2Ohm Max | - | 2.4MHz | - | -40°C ~ 105°C | 252 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
MLZ2012P220WTD25FIXED IND 22UH 220MA 1.25OHM SMD |
1,670 |
|
Datasheet |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 220 mA | 100mA | Shielded | 1.25Ohm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQW18AS18NG00DFIXED IND 18NH 700MA 170MOHM SMD |
1,334 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 18 nH | ±2% | 700 mA | - | Unshielded | 170mOhm Max | 35 @ 250MHz | 3.1GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18ASR12G00DFIXED IND 120NH 300MA 650MOHM SM |
1,244 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 120 nH | ±2% | 300 mA | - | Unshielded | 650mOhm Max | 32 @ 150MHz | 1.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQW18AS2N0J00DFIXED IND 2.0NH 700MA 0603 5% |
1,223 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 2 nH | ±5% | 700 mA | - | Unshielded | 130mOhm Max | 20 @ 250MHz | 12GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AS8N2G00DFIXED IND |
1,199 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 8.2 nH | ±2% | 700 mA | - | Unshielded | 115mOhm Max | 30 @ 250MHz | 4.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AS47NG00DFIXED IND 47NH 600MA 0.28OHM SMD |
1,099 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 47 nH | ±2% | 600 mA | - | Unshielded | 280mOhm Max | 38 @ 200MHz | 2GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
NRS4018T1R0NDGJFIXED IND 1UH 3.2A 32.4 MOHM SMD |
182,578 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.2 A | 4A | Shielded | 32.4mOhm Max | - | 90MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
NRH3012T2R2MNFIXED IND 2.2UH 1.37A 90MOHM SMD |
140,072 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.37 A | 1.5A | Shielded | 90mOhm Max | - | 78MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
-0,95mm.jpg)
|
LB1608T100MFIXED IND 10UH 60MA 700 MOHM SMD |
132,424 |
|
Datasheet |
LB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 60 mA | - | Unshielded | 700mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|

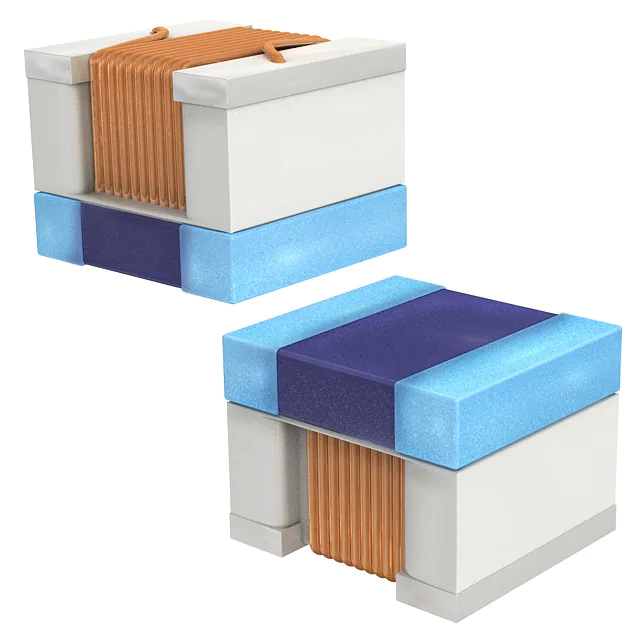

LQW2UASR56J00LFIXED IND 560NH 400MA 1.33OHM SM |
109,469 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 560 nH | ±5% | 400 mA | - | Unshielded | 1.33Ohm Max | 45 @ 100MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UASR15J00LFIXED IND 150NH 580MA 700MOHM SM |
93,293 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 150 nH | ±5% | 580 mA | - | Unshielded | 700mOhm Max | 45 @ 100MHz | 850MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
NRS4018T150MDGJFIXED IND 15UH 850MA 252MOHM SMD |
75,086 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 850 mA | 1.1A | Shielded | 252mOhm Max | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LQP03HQ3N2B02DFIXED IND 3.2NH 500MA 170MOHM SM |
67,832 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.2 nH | ±0.1nH | 500 mA | - | Unshielded | 170mOhm Max | 20 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
LQW15AN3N6C10DFIXED IND 3.6NH 900MA 0.04OHM SM |
56,112 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.6 nH | ±0.2nH | 900 mA | - | Unshielded | 40mOhm Max | 30 @ 250MHz | 9.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQP03HQ2N7B02DFIXED IND 2.7NH 600MA 120MOHM SM |
49,149 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 2.7 nH | ±0.1nH | 600 mA | - | Unshielded | 120mOhm Max | 20 @ 500MHz | 9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ1N2B02DFIXED IND 1.2NH 1.1A 40MOHM SMD |
41,793 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1.2 nH | ±0.1nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 13GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
