Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5500R-106KFIXED IND 10MH 370MA 7.3 OHM SMD |
684 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 370 mA | 170mA | - | Unshielded | 7.3Ohm Max | 10 mH | - | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | - | -55°C ~ 130°C | 1 kHz | 0.520" (13.21mm) |
|
ER1025-14KSFIXED IND 560NH 545MA 500MOHM TH |
362 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | ±10% | 545 mA | - | - | Unshielded | 500mOhm Max | 560 nH | 30 @ 25MHz | 300MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
|
ER1025-04KSFIXED IND 220NH 1.025A 140 MOHM |
325 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | ±10% | 1.025 A | - | - | Unshielded | 140mOhm Max | 220 nH | 33 @ 25MHz | 510MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
|
ER1025-18KSFIXED IND 820NH 415MA 850MOHM TH |
200 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | ±10% | 415 mA | - | - | Unshielded | 850mOhm Max | 820 nH | 28 @ 25MHz | 250MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
|
ER1025-94KSFIXED IND 100NH 1.35A 80 MOHM TH |
140 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | ±10% | 1.35 A | - | - | Unshielded | 80mOhm Max | 100 nH | 40 @ 25MHz | 680MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
DC780R-224KFIXED IND 220UH 2.8A 150 MOHM TH |
485 |
|
Datasheet |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | 7.4A | - | Unshielded | 150mOhm Max | 220 µH | - | - | Through Hole | - | 0.772" Dia (19.60mm) | - | -55°C ~ 125°C | 1 kHz | 0.831" (21.10mm) |
|
M27/367-01FIXED IND 220NH 7A 8 MOHM SMD |
3,110 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 7 A | 7A | - | Unshielded | 8mOhm Max | 220 nH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
|
M27/367-33FIXED IND 100UH 760MA 672MOHM SM |
1,545 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 760 mA | 760mA | - | Unshielded | 672mOhm Max | 100 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
|
M27/367-09FIXED IND 1UH 5.5A 13 MOHM SMD |
1,507 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 5.5 A | 5.5A | - | Unshielded | 13mOhm Max | 1 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
|
M27/367-15FIXED IND 3.3UH 3.23A 38MOHM SMD |
1,413 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 3.23 A | 3.23A | - | Unshielded | 38mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
|
M27/367-11FIXED IND 1.5UH 4.45A 20MOHM SMD |
1,072 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 4.45 A | 4.45A | - | Unshielded | 20mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|

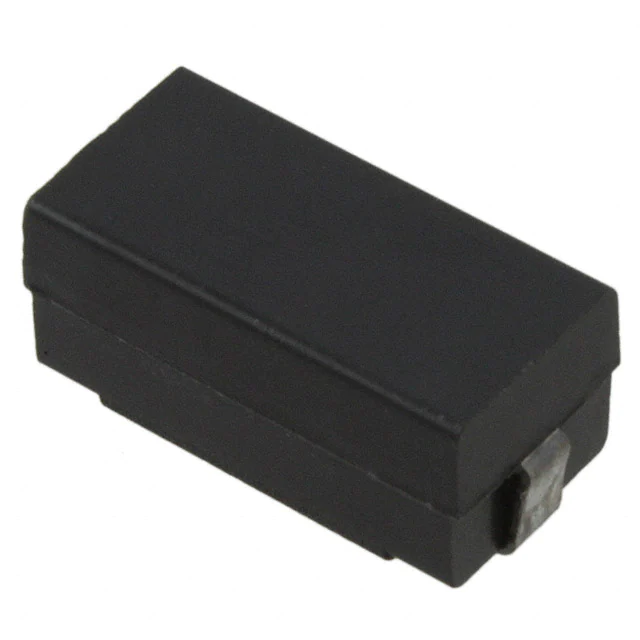

M27/367-27FIXED IND 33UH 1.33A 222MOHM SMD |
949 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 1.33 A | 1.33A | - | Unshielded | 222mOhm Max | 33 µH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
PFC3519QM-451K04E-00CHOKE COMMON MODE |
148 |
|
Datasheet |
PFC | Radial, Horizontal, 8 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 3.7 A | - | - | Unshielded | - | 450 µH | - | - | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | Choke Coils for PFC (Pin Terminal Type) | -30°C ~ 120°C | 50 kHz | 0.827" (21.00mm) |
|
750316867FIXED IND 125UH 39.6 MOHM TH |
146 |
|
Datasheet |
- | 11-DIP Module | Tray | Active | - | - | ±10% | - | 12A | - | Unshielded | 39.6mOhm Max | 125 µH | - | - | Through Hole | - | 1.400" L x 1.470" W (35.56mm x 37.34mm) | - | -40°C ~ 125°C | 10 kHz | 1.350" (34.29mm) |
|
IHLP8787MZER820M51FIXED IND 82UH 10.2A 34.2MOHM SM |
470 |
|
Datasheet |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 10.2 A | 9A | - | Shielded | 34.2mOhm Max | 82 µH | - | 2.07MHz | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.512" (13.00mm) |
|
ER1641-472KRFIXED IND 4.7UH 380MA 550MOHM TH |
556 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | ±10% | 380 mA | - | - | Unshielded | 550mOhm Max | 4.7 µH | 44 @ 7.9MHz | 70MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
ER1641-822KSFIXED IND 8.2UH 245MA 1.32OHM TH |
405 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | ±10% | 245 mA | - | - | Unshielded | 1.32Ohm Max | 8.2 µH | 50 @ 7.9MHz | 50MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
ER1641-562KSFIXED IND 5.6UH 335MA 720MOHM TH |
291 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | ±10% | 335 mA | - | - | Unshielded | 720mOhm Max | 5.6 µH | 44 @ 7.9MHz | 65MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
M27/367-45FIXED IND 1MH 240MA 6.9 OHM SMD |
677 |
|
Datasheet |
Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 240 mA | 240mA | - | Unshielded | 6.9Ohm Max | 1 mH | - | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | - | -55°C ~ 130°C | 1 kHz | 0.230" (5.84mm) |
|
|
ER1641-912JSFIXED IND 9.1UH 220MA 1.62OHM TH |
498 |
|
Datasheet |
Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | ±5% | 220 mA | - | - | Unshielded | 1.62Ohm Max | 9.1 µH | 50 @ 7.9MHz | 46MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
