High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

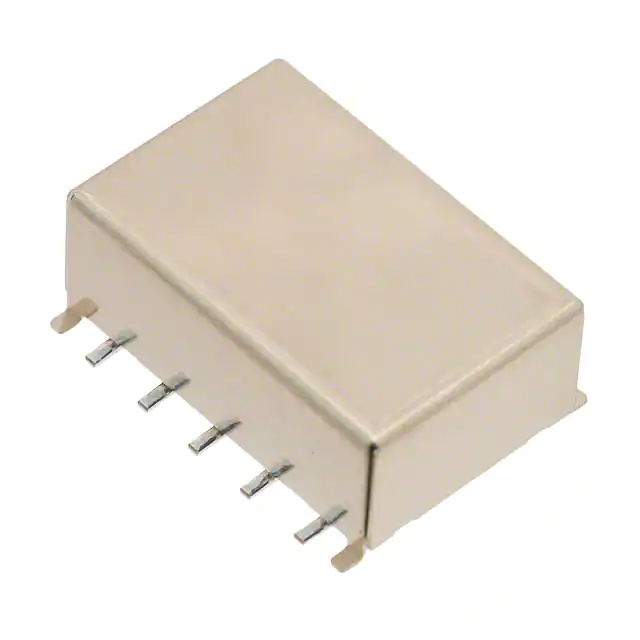

ARA210A03RELAY RF DPDT 1A 3V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Single Coil | 23.3 mA | 3VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 2.25 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARA210A06RELAY RF DPDT 1A 6V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Single Coil | 11.7 mA | 6VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 4.5 VDC | - | - | - | - | Surface Mount | Gull Wing | - |
|
|
ARA210A09RELAY RF DPDT 1A 9V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Single Coil | 7.8 mA | 9VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 6.75 VDC | - | - | - | - | Surface Mount | Gull Wing | - |
|
|
ARA210A1HRELAY RF DPDT 1A 1.5V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Single Coil | 46.9 mA | 1.5VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 1.13 VDC | - | - | - | - | Surface Mount | Gull Wing | - |
|
|
ARA220A03RELAY RF DPDT 1A 3V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Dual Coil | 46.7 mA | 3VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 2.25 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARA220A06RELAY RF DPDT 1A 6V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Dual Coil | 23.3 mA | 6VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 4.5 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARA220A09RELAY RF DPDT 1A 9V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Dual Coil | 15.5 mA | 9VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 6.75 VDC | - | - | - | - | Surface Mount | Gull Wing | - |
|
|
ARA220A1HRELAY RF DPDT 1A 1.5V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Dual Coil | 93.8 mA | 1.5VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 1.13 VDC | - | - | - | - | Surface Mount | Gull Wing | - |
|
|
ARA220A4HRELAY RF DPDT 1A 4.5V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Dual Coil | 31 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 3.38 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
3-1462050-9RELAY RF SPDT 2A 5V |
0 |
|
Datasheet |
HF3, AXICOM | Bulk | Active | Latching, Dual Coil | 28.1 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
ARA210A24RELAY RF DPDT 1A 24V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Single Coil | 4.2 mA | 24VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 18 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARA220A24RELAY RF DPDT 1A 24V |
0 |
|
Datasheet |
ARA | Tube | Active | Latching, Dual Coil | 8.3 mA | 24VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 18 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARA200A48RELAY RF DPDT 1A 48V |
0 |
|
Datasheet |
ARA | Tube | Active | Non Latching | 6.3 mA | 48VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 36 VDC | 4.8 VDC | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
2-1462051-6RELAY RF SPDT 2A 12V |
0 |
|
Datasheet |
HF3S, AXICOM | Bulk | Active | Latching, Dual Coil | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
2920-05-121RELAY RF SPST-NO 1A 5V |
0 |
|
Datasheet |
2900 | Tube | Not For New Designs | Non Latching | 66.7 mA | 5VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 3.8 VDC | 0.4 VDC | 1.5 ms | 1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2920-12-121RELAY RF SPST-NO 1A 12V |
0 |
|
Datasheet |
2900 | Tube | Not For New Designs | Non Latching | 48 mA | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 9 VDC | 1 VDC | 1.5 ms | 1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
G6K-2F-RF-V DC3RELAY RF SMD |
0 |
|
Datasheet |
G6K | Tube | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
MW3-12ARELAY RF 12A 3GHZ HIGH FREQ |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MW3S-12ARELAY RF 12A 3GHZ SENSITIVE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MW3S-12PRELAY RF DPDT 1A 12V |
0 |
|
- |
MW3S, CII | Bulk | Active | Non Latching | 14 mA | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 9 VDC | - | 6 ms | 3 ms | Sealed - Hermetically | Through Hole | PC Pin | -55°C ~ 85°C |
