Industrial, DIN Rail Power Supplies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Input Type | Number of Outputs | AC Voltage - Input | DC Voltage - Input (Min) | DC Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TIB 240-124AC/DC DIN RAIL SUPPLY 24V 240W |
23 |
|
Datasheet |
TIB 240 (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4.25 kV | Industrial, ITE (Commercial) | 94.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|
ML30.102AC/DC DIN RAIL SUPPLY 12V 30W |
24 |
|
Datasheet |
MiniLine (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3A | 30W | - | ITE (Commercial) | 84% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | CSA, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
ML30.101AC/DC DIN RAIL SUPPLY 5V 30W |
15 |
|
Datasheet |
MiniLine (25W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 5A | 30W | - | ITE (Commercial) | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
SDP2-24-100TAC/DC DIN RAIL SUPPLY 24V 50W |
2 |
|
Datasheet |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 2.1A | 50W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus | - |
|
SDP5-5-100TAC/DC DIN RAIL SUPPLY 5V 25W |
14 |
|
Datasheet |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 5V | - | - | - | - | - | 5A | 25W | - | Hazardous Locations, Industrial, ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus | - |
|
CS3.241AC/DC DIN RAIL SUPPLY 24V 80W |
18 |
|
Datasheet |
DIMENSION C (80W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.3A | 80W | - | ITE (Commercial) | 89.8% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
DPX40-24WD15DC/DC DIN RAIL SUPPLY +/-15V 40W |
5 |
|
Datasheet |
DPX (40W) | Bulk | Active | DC | 2 | - | 9.5V | 36V | 15V | -15V | - | - | - | - | 1.333A, 1.333A | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | CE | - |
|
DRS-240-12AC/DC DIN RAIL SUPPLY 12V 240W |
13 |
|
Datasheet |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 12V | - | - | - | - | - | 20A | 240W | 4 kV | ITE (Commercial) | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
|
DRS-240-24AC/DC DIN RAIL SUPPLY 24V 240W |
12 |
|
Datasheet |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|

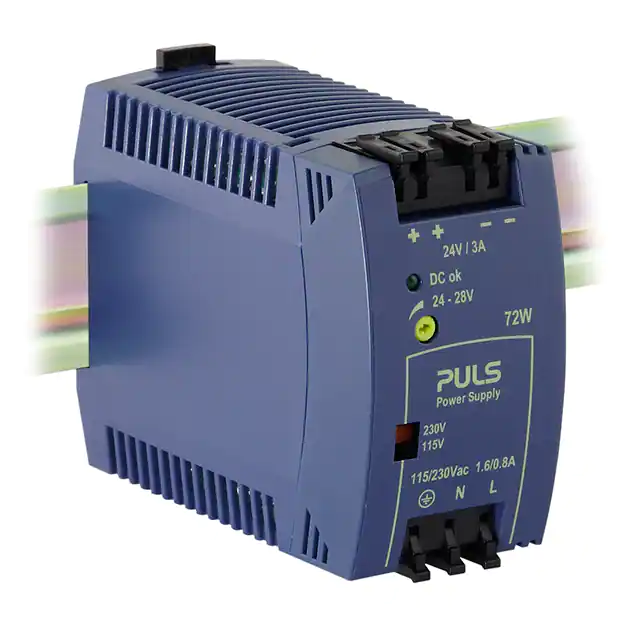

ML70.100AC/DC DIN RAIL SUPPLY 24V 72W |
17 |
|
Datasheet |
MiniLine (72W) | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3A | 72W | - | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
1478180000AC/DC DIN RAIL SUPPLY 24V 240W |
2 |
|
Datasheet |
PRO MAX3 (240W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Industrial, ITE (Commercial) | 91.5% | -25°C ~ 70°C | Adjustable Output, IP20 | CE, cULus, cuRus, EAC, TUV | - |
|
2687-2146POWER SUPPLY; ECO 2; 1-PHASE; 24 |
22 |
|
- |
- | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3.51 kV | Laboratory | 93% | -25°C ~ 70°C | Adjustable Output, PFC, Universal Input | CE, cULus, UKCA | 61010-1 |
|
SDP3-15-100TAC/DC DIN RAIL SUPPLY 15V 51W |
19 |
|
Datasheet |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 15V | - | - | - | - | - | 3.4A | 51W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus | - |
|
ML100.100AC/DC DIN RAIL SUPPLY 24V 100W |
16 |
|
Datasheet |
MiniLine (100W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.2A | 100W | - | ITE (Commercial) | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
DDR-480B-48DC/DC DIN RAIL SUPPLY 48V 480W |
18 |
|
Datasheet |
DDR-480 (480W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial), Railway | 90.5% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|
DDR-480C-12DC/DC DIN RAIL SUPPLY 12V 401W |
7 |
|
Datasheet |
DDR-480 (480W) | Box | Active | DC | 1 | - | 33.6V | 67.2V | 12V | - | - | - | - | - | 33.4A | 401W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|
|
DDR-480B-24DC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Datasheet |
DDR-480 (480W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|
2001800000DC/DC DIN RAIL SUPPLY 24V 120W |
13 |
|
Datasheet |
PRO-DCDC (120W) | Box | Active | DC | 1 | - | 14V | 32V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 92% | -20°C ~ 70°C | - | cULus | - |
|

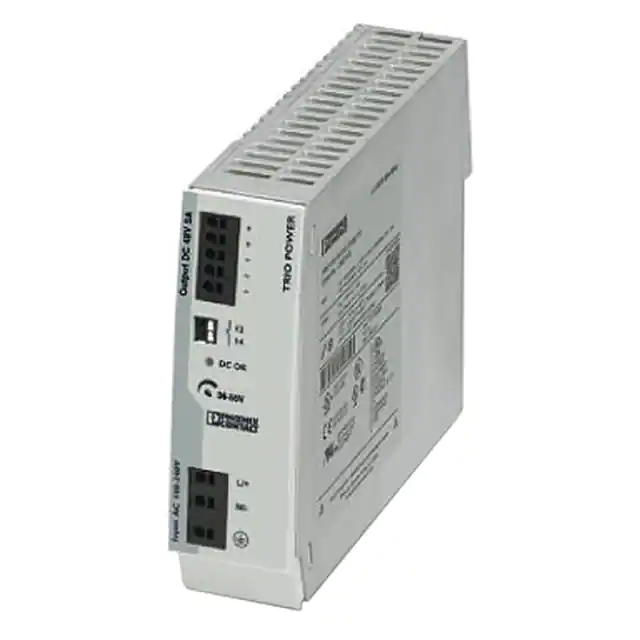

2903159AC/DC DIN RAIL SUPPLY 48V 240W |
18 |
|
Datasheet |
TRIO | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | cUL, UL | - |
|
|
1066708QUINT4-PS/48-110DC/24DC/2.5/PT |
10 |
|
Datasheet |
- | Bulk | Active | DC | 1 | - | 30V | 110V | 24V | - | - | - | - | - | 2.5A | 60W | 1.2 kV | Laboratory | 93.7% | -25°C ~ 70°C (With Derating) | Adjustable Output | CB | 61010-1 |
