Task Lighting

制造商	Series	Packaging	Part Status	Illumination Color	Luminous Flux	Profile (W x H)	Power - Rated	Voltage - Supply	Features	Housing Material	Length	Rated Life	Termination Style	Operating Temperature	Approval Agency	Ingress Protection	Lens Type
Aven Tools Banner Engineering Corporation Beyond LED Technology Bivar Inc. CCEA Technical Lighting ESL Vision Festo Corporation Finder Relays, Inc. IDEC Lumex Opto/Components Inc. Murrelektronik, Inc Patlite U.S.A. Phoenix Contact Weidmuller	* - 7L ADP Bayfront B7100 Coastline C5000 Coastline C5400 Coastline C5500 COMPACT ALPHA CP EF1A Fame FLD GS60 H3 HLS27 HLS28 I9 Jet KP LA6 LB6 LF1A LF1B LF1B-N LF1D LF1E LF2B LF2D LF3D LPT M1 LR LR4 LR6 LR6 USB LSL NE North Star™ Peninsula P3000 Peninsula P3200 Pixel Square PNL POLE RLS27 SKP SL08 SL10 Steel SunBritera Strip VERSA WE WE LAN WEP WIO WL50-2 WL50-3 WL50S WLA WLB32 WLB72 WLB92 WLC60 WLC90 WLH60 WLR95 WLS WLS15 WLS27 WLS28 WLS28-2 Zoho Zoho 4th Gen	- Bag Box Bulk Retail Package Tape & Box (TB) Tube	Active Obsolete	- Amber Amber, Blue Amber, White Black Blue Blue, Green Blue, Green, Red Blue, Green, Red, White Blue, Green, Red, White, Yellow Blue, Red Blue, White Blue, Yellow Bronze Clear (White) Gray Green Green, Red Green, Red, White Green, Red, Yellow Green, White Green, Yellow Infrared Multi-color Multi-color 21 Multi-Color 7 colors Orange, Red, White Red Red, Green, Blue, Yellow, White Red, White Red, White, Cool Red, White, Yellow Red, Yellow Ultraviolet White White, Cool White, Neutral White, Warm White, Yellow Yellow	- 1000lm 1000lm Blue, 3200lm Green, 1480lm Red, 5200lm White, 4560lm Yellow 1000lm Green, 500lm Red 100lm 100lm Blue, 320lm Green, 148lm Red, 520lm White, 456lm Yellow 100lm Blue, 700lm White 100lm Red, 238lm White 1020lm 1025lm 1050lm 1050lm Red, 330lm White 105lm 105lm Green, 55lm Red 1065lm 1070lm 1073lm 1080lm 1080lm Green, 600lm Red 10880lm 10lm 1100lm 1100lm White, 340lm Yellow 110lm 110lm Amber, 350lm White 110lm Blue, 150lm Yellow 110lm Blue, 200lm Red 110lm Blue, 300lm Green 110lm Blue, 475lm White 110lm Red, 350lm White 1115lm 1119lm 1122lm 1150lm 1152lm 115lm 115lm Green, 150lm Red 115lm Green, 40lm Red 115lm Green, 75lm Red 115lm Red, 530lm White 1160lm 1170lm 11896lm 1200lm 1200lm Green, 1900lm White 1200lm Green, 552lm Red, 1940lm White 1200lm Green, 555lm Red, 1710lm Yellow 1200lm Green, 555lm Red, 1950lm White 1200lm Green, 800lm Red 120lm 1210lm 1220lm 1225lm 125lm 125lm Blue, 400lm Green, 185lm Red, 650lm White, 570lm Yellow 12600lm 1260lm 1280lm Green, 296lm Red, 2080lm White 12824lm 1288lm 1295lm 1300lm 1300lm Green, 800lm Red 130lm 130lm Red, 550lm White 1350lm 135lm 13600lm 1360lm 1400lm 1400lm Red, 440lm White 1425lm 1429lm 1430lm 14400lm 1440lm 14500lm 145lm 1492lm 1496lm 1500lm 150lm 150lm Blue, 330lm Red 150lm Green, 100lm Red 150lm Green, 200lm Red 150lm Red, 180lm White 150lm Red, 356lm White 150lm Red, 475lm White 150lm Red, 715lm White 1530lm 1540lm 1545lm 1550lm 155lm 1560lm 1579lm 16000lm 1600lm 1600lm Green, 740lm Red, 1900lm White 1600lm Green, 740lm Red, 2280lm Yellow 1600lm Green, 740lm Red, 2600lm White 1600lm White, 200lm Yellow 160lm 160lm Blue, 220lm Red 160lm Blue, 720lm Green, 220lm Red, 1600lm White, 200lm Yellow 160lm Red, 380lm White 16200lm 1650lm 1650lm White, 510lm Yellow 16527lm 165lm 165lm Amber, 525lm White 165lm Blue, 1425lm White 165lm Red, 525lm White 165lm Red, 975lm White 1700lm 170lm 1720lm 1740lm 175lm 175lm Red, 55lm White 1800lm 1800lm Green, 828lm Red, 2910lm White 180lm 180lm Green, 325lm White 1850lm 185lm 185lm Red, 400lm Green, 125lm Blue, 570lm Yellow, 650lm White 185lm Red, 650lm White 185lm Red, 650lm White, 570lm Yellow 1865lm 186lm Blue, 600lm Green, 276lm Red, 970lm White, 854lm Yellow 1870lm 1890lm 18lm 1900lm 190lm 1920lm 1933lm 19500lm 1950lm 195lm 195lm Red, 690lm White, 605lm Yellow 195lm Red, 825lm White 19630lm 19950lm 2000lm 200lm 200lm Blue, 100lm Red 200lm Blue, 300lm Green 200lm Blue, 640lm Green, 296lm Red, 1040lm White, 912lm Yellow 200lm Green, 93lm Red 200lm Red, 1425lm White 200lm Red, 300lm White 200lm Red, 475lm White 200lm Red, 950lm White 2010lm 2050lm 20793lm 208lm 20950lm 20lm 2100lm 210lm 210lm Green, 110lm Red 210lm Green, 200lm Blue, 110lm Red 210lm Green, 350lm White 2110lm 215lm 2177lm 2200lm 2200lm White, 680lm Yellow 220lm 220lm Amber, 700lm White 220lm Blue, 600lm Green 220lm Blue, 950lm White 220lm Red, 660lm Yellow 22290lm 2238lm 2244lm 2250lm 225lm 225lm Green, 180lm White 22950lm 2300lm 230lm 23100lm 2320lm 235lm 2388lm 24000lm 2400lm 2400lm Green, 1100lm Red, 3900lm White 2400lm Green, 1104lm Red, 3880lm White 240lm 240lm Green, 160lm Red 240lm Green, 380lm White 245lm 2473lm 250lm 250lm Blue, 800lm Green, 370lm Red, 1300lm White, 1140lm Yellow 2520lm 25500lm 25lm Blue, 55lm Red 26000lm 2600lm 260lm 260lm Red, 1100lm White 2611lm 2618lm 2639lm 265lm Red, 1900lm White 2700lm 270lm 2745lm 275lm 279lm Blue, 900lm Green, 414lm Red, 1455lm White, 1281lm Yellow 27lm 2800lm 285lm 2889lm 2898lm 290lm 293lm Red, 1035lm White, 908lm Yellow 295lm 2975lm 3000lm 300lm 300lm Blue, 960lm Green, 444lm Red, 1560lm White, 1368lm Yellow 300lm Green, 138lm Red, 485lm White 300lm Green, 200lm Red 300lm Green, 300lm Red 300lm Green, 475lm White 300lm Green, 650lm White 300lm Red, 200lm Yellow 300lm Red, 715lm White 3075lm 30lm 315lm 315lm Green, 165lm Red 316lm 3200lm 3200lm Green, 1480lm Red, 5200lm White 320lm 320lm Blue, 2600lm White 320lm Red, 760lm White 325lm 330lm 330lm Amber, 1050lm White 330lm Blue, 1425lm White 330lm Red, 2400lm White 340lm 340lm Green, 225lm Red 3432lm 3480lm 350lm 350lm Blue, 50lm White 350lm Red, 110lm White 350lm White, 330lm Yellow 35100lm 3510lm 358lm 3600lm 360lm 360lm Green, 110lm Red 360lm Green, 110lm Red, 800lm White 360lm Green, 800lm White 365lm 36lm 370lm Red, 1300lm White 370lm Red, 800lm Green, 250lm Blue, 1140lm Yellow, 1300lm White 372lm Blue, 1200lm Green, 552lm Red, 1940lm White, 1708lm Yellow 375lm 375lm Blue, 1200lm Green, 555lm Red, 1950lm White, 17100lm Yellow 375lm Blue, 1200lm Green, 555lm Red, 1950lm White, 1710lm Yellow 375lm Red, 1220lm White 3800lm 380lm 384lm 385lm 385lm Red, 2275lm White 3900lm, 7800lm 390lm 390lm Red, 1380lm White, 1210lm Yellow 393lm 395lm 4000lm 400lm 400lm Green, 185lm Red 400lm Green, 185lm Red, 650lm White 400lm Green, 400lm Red, 570lm Yellow 400lm Red, 1900lm White 400lm Red, 950lm White 4050lm 40lm 40lm Blue, 150lm Red 40lm Blue, 180lm White 40lm Blue, 75lm Red 40lm Red, 180lm White 4100lm 410lm 4160lm 4200lm 420lm Green, 220lm Red 4225lm 440lm 440lm Amber, 1400lm White 440lm Blue, 1900lm White 44800lm 450lm 450lm Green, 300lm Red 450lm Green, 715lm White 454lm 455lm Red, 1925lm White 45lm 4640lm 465lm 47430lm 475lm 475lm Green, 200lm Red 4772lm 4800lm 480lm Green, 320lm Red 49280lm 496lm 5000lm 5004lm 500lm 500lm Blue, 1600lm Green, 740lm Red, 2600lm White, 2280lm Yellow 500lm Red, 1625lm White 503lm 5070lm 50lm 50lm Blue, 110lm Red 50lm Blue, 350lm White 50lm Red, 180lm White 51000lm 510lm 5150lm 5200lm 520lm 520lm Red, 2200lm White 525lm 525lm Red, 165lm White 530lm 5400lm 550lm 550lm White, 170lm Yellow 555lm Red, 1200lm Green, 470lm Blue, 1710lm Yellow, 1950lm White 555lm Red, 1950lm White 555lm Red, 1950lm White, 1710lm Yellow 558lm Blue, 1800lm Green, 828lm Red, 2600lm White, 2562lm Yellow 55lm 55lm Amber, 175lm White 55lm Amber, 25lm Blue 55lm Blue, 100lm Red 55lm Blue, 225lm White 55lm Red, 165lm Yellow 55lm Red, 175lm White 55lm Red, 325lm White 560lm 560lm Green, 375lm Red 5750lm 5800lm 580lm 600lm 600lm Green, 276lm Red, 970lm White 600lm Green, 400lm Red 600lm Green, 450lm Red 600lm Green, 950lm White 600lm Red, 1425lm White 60lm 60lm Green, 75lm Red 618lm 625lm 630lm 630lm Green, 330lm Red 6400lm 640lm 640lm Green, 296lm Red, 912lm Yellow 6450lm 650lm 65lm 65lm Red, 275lm White 663lm Red, 713lm White 675lm Green, 450lm Red 6800lm 680lm 700lm 700lm Red, 220lm White 7020lm 70lm 711lm 7150lm 715lm 72000lm 720lm 720lm Green, 480lm Red 725lm 7296lm 740lm Red, 16000lm Green, 500lm Blue, 2280lm Yellow, 2600lm White 740lm Red, 2600lm White 7412lm 744lm Blue, 2400lm Green, 1104lm Red, 3880lm White, 3416lm Yellow 745lm 746lm 750lm 750lm Blue, 2400lm Green, 1100lm Red, 3900lm White, 3420lm Yellow 750lm Green, 200lm Red 750lm Green, 500lm Red 75lm 75lm Blue, 525lm White 75lm Red, 135lm Yellow 75lm Red, 178lm White 75lm Red, 180lm White 7600lm 760lm 7800lm 780lm 780lm Red, 2760lm White, 2420lm Yellow 800lm 800lm Green, 370lm Red, 1300lm White 800lm Green, 950lm White 800lm Red, 1900lm White 80lm 80lm Blue, 110lm Red 80lm Blue, 360lm Green, 110lm Red, 800lm White, 100lm Yellow 8100lm 815lm 8350lm 8400lm 840lm 840lm Green, 440lm Red 850lm 85lm 85lm Blue, 180lm White 9000lm 900lm 900lm Green, 414lm Red, 1455lm White 900lm Green, 600lm Red 90lm 926lm 93lm Blue, 300lm Green, 138lm Red, 485lm White, 427lm Yellow 950lm 950lm White, 300lm Yellow 958lm 95lm 960lm 960lm Green, 1520lm White 960lm Green, 640lm Red 975lm 975lm Red, 340lm White 98lm 990lm 995lm 9lm	- 0.59" (15.0mm) Dia 0.61" x 1.20" (15.5mm x 30.5mm) 0.62" x 0.89" (15.7mm x 22.6mm) 0.77" x 0.52" (19.5mm x 13.3mm) 0.83" x 0.30" (21.0mm x 7.6mm) 0.83" x 0.47" (21.0mm x 12.0mm) 0.83" x 0.60" (21.1mm x 15.2mm) 0.87" x 0.59" (22.2mm x 14.9mm) 0.94" W x 1.02" H (23.9mm x 25.9mm) 0.94" x 1.34" (24.0mm x 34.0mm) 0.98" x 1.04" (25.0mm x 26.5mm) 1.03" x 1.38" (26.2mm x 35.1mm) 1.06" (27.0mm) Dia 1.08" x 0.63" (27.5mm x 16.0mm) 1.10" x 0.82" (28.0mm x 20.9mm) 1.10" x 0.83" (28.0mm x 21.0mm) 1.10" x 0.98" (28.0mm x 25.0mm) 1.10" x 1.27" (28.0mm x 32.2mm) 1.10" x 1.41" (27.9mm x 35.9mm) 1.10" x 1.45" (27.9mm x 36.8mm) 1.18" x 1.24" (30.0mm x 31.5mm) 1.19" W x 1.30" H (30.2mm x 33.0mm) 1.20" x 0.61" (30.6mm x 15.5mm) 1.26" x 1.40" (32.0mm x 35.5mm) 1.26" x 1.81" (32.0mm x 46.0mm) 1.26" x 1.89" (32.0mm x 48.0mm) 1.26" x 1.97" (32.0mm x 50.0mm) 1.26" x 1.98" (32.0mm x 50.3mm) 1.35" (34.3mm) Dia 1.42" x 0.74" (36.0mm x 18.8mm) 1.46" x 1.57" (37.0mm x 40.0mm) 1.50" (38.1mm) Dia 1.51" x 1.89" (38.4mm x 48.0mm) 1.51" x 1.98" (38.4mm x 50.3mm) 1.57" x 0.32" (40.0mm x 8.0mm) 1.57" x 1.14" (40.0mm x 29.0mm) 1.58" x 0.37" (40.0mm x 9.5mm) 1.77" (45.0mm) Dia 1.81" Dia (46.0mm) 1.93" x 0.67" (49.0mm x 17.0mm) 1.95" (50.0mm) Dia 1.96" x 1.17" (49.8mm x 29.8mm) 1.97" x 0.98" (50.0mm x 25.0mm) 10.04" (255.0mm) Dia 10.23" x 3.40" (259.8mm x 86.4mm) 10.33" x 3.03" (262.4mm x 77.0mm) 10.80" W x 5.40" H (274.3mm x 137.2mm) 10.98" W x 2.36" H (278.9mm x 59.9mm) 11.02" (279.9mm) Dia 11.61" x 0.83" (295.0mm x 21.0mm) 11.80" W x 3.20" H (299.7mm x 81.3mm) 11.81" W x 2.44" H (300.0mm x 62.0mm) 12.00" (304.8mm) Dia 12.20" x 8.66" (310.0mm x 220.0mm) 12.60" W x 2.46" H (320.0mm x 62.5mm) 13.11" W x 6.30" H (333.0mm x 160.0mm) 13.11" x 6.30" (333.0mm x 160.0mm) 13.24" x 3.03" (336.3mm x 77.0mm) 13.81" W x 4.58" H (350.8mm x 116.3mm) 13.89" W x 2.83" H (352.8mm x 71.9mm) 14.69" x 1.09" (373.0mm x 27.8mm) 14.96" x 6.10" (380.0mm x 155.0mm) 15.15" W x 3.30" H (384.8mm x 83.8mm) 15.75" x 12.20" (400.0mm x 310.0mm) 17.79" W x 4.56" H (451.9mm x 115.8mm) 2.17" x 0.87" (55.0mm x 22.0mm) 2.20" (56.0mm) Dia 2.20" x 0.69" (55.8mm x 17.5mm) 2.20" x 1.20" (55.8mm x 30.5mm) 2.36" (60.0mm) Dia 2.40" x 1.21" (60.9mm x 30.7mm) 2.40" x 1.23" (60.9mm x 31.3mm) 2.70" (68.5mm) Dia 2.75" W x 48.00" H (69.9mm x 1219.2mm) 2.76" Dia (70.0mm) 2.83" x 2.68" (71.9mm x 68.1mm) 2.83" x 3.23" (72.0mm x 82.0mm) 2.83" x 3.70" (72.0mm x 94.0mm) 2.94" x 1.02" (74.7mm x 25.9mm) 20.50" W x 2.10" H (520.7mm x 53.3mm) 21.40" x 1.90" (543.6mm x 48.3mm) 23.74" W x 1.85" H (603.0mm x 47.0mm) 23.74" x 1.38" (603.0mm x 35.1mm) 23.74" x 1.85" (603.0mm x 47.0mm) 23.82" x 1.85" (605.0mm x 47.0mm) 25.79" x 1.09" (655.0mm x 27.8mm) 3.00" W x 8.50" H (76.2mm x 215.9mm) 3.15" x 1.15" (80.0mm x 29.2mm) 3.15" x 1.33" (80.0mm x 33.7mm) 3.25" W x 14.00" H (82.6mm x 355.6mm) 3.50" x 1.11" (88.9mm x 28.2mm) 3.54" x 1.48" (90.0mm x 37.5mm) 3.58" x 1.11" (91.0mm x 28.2mm) 3.60" W x 9.56" H (91.4mm x 242.8mm) 3.80" x 4.10" (96.5mm x 104.1mm) 3.82" x 4.09" (97.0mm x 104.0mm) 36.00" x 1.25" (914.4mm x 31.8mm) 36.89" x 1.09" (937.0mm x 27.8mm) 4.09" x 3.23" (104.0mm x 82.0mm) 4.09" x 3.23" (104.0mm x 82.1mm) 4.09" x 3.92" (104.0mm x 99.6mm) 4.13" x 1.00" (105.0mm x 25.3mm) 4.33" W x 4.02" H (110.0mm x 102.1mm) 4.99" x 4.62" (126.7mm x 117.4mm) 47.80" W x 1.80" H (1214.1mm x 45.7mm) 47.99" x 1.09" (1219.0mm x 27.8mm) 5.00" W x 3.60" H (127.0mm x 91.4mm) 5.00" x 3.00" (127.0mm x 76.2mm) 5.43" W x 3.58" H (138.0mm x 90.9mm) 5.47" W x 5.86" H (139.0mm x 148.8mm) 5.50" W x 15.00" H (139.7mm x 381.0mm) 6.00" W x 10.00" H (152.4mm x 254.0mm) 6.00" W x 4.00" H (152.4mm x 101.6mm) 6.10" W x 1.96" H (154.9mm x 49.8mm) 6.53" W x 3.78" H (165.9mm x 96.0mm) 7.00" x 3.00" (177.8mm x 76.2mm) 7.09" x 1.02" (180.0mm x 25.8mm) 7.12" x 1.92" (180.8mm x 48.8mm) 7.32" (185.9mm) Dia 7.48" W x 4.76" H (190.0mm x 120.9mm) 7.49" W x 4.26" H (190.2mm x 108.2mm) 70.20" x 1.09" (1783.0mm x 27.8mm) 8.27" W x 5.91" H (210.1mm x 150.1mm) 8.50" W x 7.30" H (215.9mm x 185.4mm) 9.00" x 3.25" (228.6mm x 82.6mm) 9.50" W x 14.50" H (241.3mm x 368.3mm) 9.60" x 5.87" (243.8mm x 149.1mm) 92.40" x 1.09" (2347.0mm x 27.8mm)	- 0.8W 1.0W 1.1W 1.5W 1.6W 1.8W 10.0W 10.6W 100.0W 100W 11.0W 11.1W 11.3W 11.6W 12.0W 12.2W 12.5W 12.6W 13.0W 14.0W 14.8W 15.0W 15.9W 150.0W 150W 15W 16.0W 16.5W 16.8W 17.0W 17.3W 18.0W 18.5W 18.8W 19.0W 19.5W 2.0W 2.2W 2.5W 2.6W 2.9W 20.0W 20.5W 20W 22.2W 22.5W 24.0W 240.0W 25.0W 25.9W 26.4W 28.0W 28.5W 29.0W 29.1W 3.3W 3.6W 3.8W 3.9W 30.0W 300.0W 32.5W 320.0W 320W 32W 35.0W 36W 39.0W 4.0W 4.4W 4.6W 4.9W 40.0W 40W 450W 480.0W 49.0W 5.0W 5.8W 6.0W 6.6W 60.0W 60W 6W 7.0W 7.2W 7.3W 7.4W 7.5W 7.6W 7.8W 720.0W 73.9W 75.0W 8.0W 8.4W 8.5W 8.7W 80W 9.0W 9.2W 90.0W 90W 9W	- 10 ~ 30VDC 100 ~ 120VAC 100 ~ 240VAC 100 ~ 277VAC 110 ~ 240VAC/DC 110VAC 12 ~ 24VDC 12 ~ 30VDC 12 ~ 48VAC/DC 12/24VDC 120 ~ 277VAC 120 ~ 347VAC 120VAC 12VDC 18 ~ 30VDC 18 ~ 48VDC 200 ~ 528VAC 21 ~ 28VDC 21.6 ~ 26.4VDC 24 VDC 24 ~ 120VDC 24 ~ 265VAC/DC 24VAC/DC 24VDC 277 ~ 480VAC 42.5 ~ 57VDC 90 ~ 264 VAC 90 ~ 264VAC POE or 24 VDC	- Alarm Module Amber LED Module Blue LED Module Cable Length 1.5m Cable Length 3m Cable Length 5m Cascadable Cascadable, Dimmable Cascadable, Dimmable, High/Low/Off Switching Cascadable, Dimmable, On/Off Switch Cascadable, High/Low/Off Switching Cascadable, High/Low/Off Switching, Motion Detection Cascadable, High/Low/Off Switching, Shield Cascadable, IO-Link Cascadable, Motion Detection Cascadable, Motion Detection, Shield Cascadable, On/Off Switching Cascadable, Shield Clear LED Module Dimmable Dimmable, High/Low/Off Switching Dimmable, On/Off Switch Ethernet Controlled Green LED Module High/Low/Off Switching High/Low/Off Switching, Motion Detection IO-Link IP69K Motion Detection Motion Detection, Shield Multi-color LED Module On/Off Switching Red LED Module Wireless Bluetooth	- Aluminum (Al) Aluminum (Al), Nickel Plated Aluminum (Al), Polycarbonate (PC) Aluminum (Al), Steel Galvanized Steel Plastic Poly-Vinyl Chloride (PVC) Polybutylene Terephthalate (PBT) Polycarbonate (PC) Stainless Steel Steel Thermoplastic Polyurethane (TPU)	- 0.04" (1.1mm) 0.05" (1.2mm) 10.00" (254.0mm) 10.23" (259.8mm) 10.24" (260.1mm) 10.39" (263.9mm) 10.47" (266.0mm) 10.50" (266.7mm) 10.63" (270.0mm) 10.67" (271.0mm) 10.71" (272.0mm) 10.83" (275.0mm) 10.91" (277.0mm) 11.02" (280.0mm) 11.22" (285.0mm) 11.50" (292.1mm) 11.81" (300.0mm) 11.97" (304.0mm) 12.00" (304.8mm) 12.13" (308.0mm) 12.16" (308.9mm) 12.20" (310.0mm) 12.23" (310.6mm) 12.71" (322.8mm) 12.99" (330.0mm) 13.03" (331.0mm) 13.39" (340.0mm) 13.78" (350.0mm) 14.00" (355.6mm) 14.07" (357.4mm) 14.09" (358.0mm) 14.17" (360.0mm) 15.15" (384.8mm) 15.31" (389.0mm) 15.35" (390.0mm) 15.55" (395.0mm) 16.02" (406.9mm) 16.14" (410.0mm) 16.69" (424.0mm) 16.93" (430.0mm) 17.20" (436.9mm) 17.72" (450.0mm) 18.00" (457.2mm) 19.57" (497.1mm) 19.60" (497.8mm) 19.69" (500.0mm) 2.27" (57.7mm) 2.50" (63.5mm) 20.49" (520.4mm) 21.50" (546.1mm) 21.65" (550.0mm) 21.85" (555.0mm) 22.40" (569.0mm) 22.44" (570.0mm) 22.83" (580.0mm) 23.03" (585.0mm) 23.62" (600.0mm) 23.70" (602.0mm) 23.74" (603.0mm) 23.78" (604.0mm) 24.00" (609.6mm) 24.02" (610.0mm) 24.45" (621.0mm) 25.12" (638.0mm) 25.20" (640.0mm) 25.79" (655.0mm) 27.64" (702.0mm) 27.95" (710.0mm) 29.10" (739.1mm) 29.92" (760.0mm) 3.50" (89.0mm) 3.62" (91.9mm) 3.70" (94.0mm) 3.71' (1.1m) 3.94" (100.0mm) 30.00" (762.0mm) 30.12" (765.0mm) 31.81" (808.0mm) 32.68" (830.1mm) 33.46" (850.0mm) 33.86" (860.0mm) 35.24" (895.0mm) 35.43" (900.0mm) 36.00" (914.4mm) 36.14" (918.0mm) 36.22" (920.0mm) 37.40" (950.0mm) 38.98" (990.0mm) 4.13" (105.0mm) 4.41" (112.0mm) 43.31" (1100.0mm) 44.49" (1130.0mm) 47.19" (1198.6mm) 47.24" (1200.0mm) 48.00" (1219.2mm) 49.80" (1264.9mm) 5.12" (130.0mm) 5.28" (134.0mm) 5.50" (139.7mm) 5.71" (145.0mm) 5.91" (150.1mm) 5.98" (151.9mm) 6.06" (154.0mm) 66.93" (1700.0mm) 7.00" (177.8mm) 7.09" (180.0mm) 7.48" (190.0mm) 7.50" (190.5mm) 7.87" (200.0mm) 7.87' (2.4m) 73.60" (1869.4mm) 8.00" (203.2mm) 8.19" (208.0mm) 8.27" (210.0mm) 8.46" (214.9mm) 8.58" (218.0mm) 8.66" (220.0mm) 8.84" (224.5mm) 85.40" (2169.2mm) 89.37" (2270.0mm) 9.25" (235.0mm) 9.45" (240.0mm) 9.56" (242.8mm) 9.57" (243.1mm) 93.83" (2383.3mm)	- 100,000 Hours 120,000 Hours 125,000 Hours 20,000 Hours 26,298 Hours 35,000 Hours 36,000 Hours 40,000 Hours 50,000 Hours 60,000 Hours 70,000 Hours 75,000 Hours	- Cable Leads Cable with Connector Cable with Connector (12V Plug) Cable with Connector (Deutsch DTM) Cable with Connector (M12) Connector Connector (M12) Connector (M8) RJ45 RJ45 and POE USB Wire Leads	- -10°C ~ 40°C -10°C ~ 60°C -20°C ~ 40°C -20°C ~ 45°C -20°C ~ 50°C -20°C ~ 60°C -25°C ~ 45°C -25°C ~ 50°C -30°C ~ 40°C -30°C ~ 45°C -30°C ~ 50°C -30°C ~ 55°C -30°C ~ 60°C -35°C ~ 50°C -40°C ~ 100°C -40°C ~ 40°C -40°C ~ 45°C -40°C ~ 50°C -40°C ~ 55°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 85°C 0°C ~ 40°C	- CE CE, cULus CE, cULus, UKCA CE, cULus, UL CE, DLC, ETL, UL CE, ETL, FCC CE, UL cUL, DLC, UL cULus DLC, ETL DLC, UL EAC ES, ETL ES, UL ETL UL	- IP20 IP22 IP23 IP40 IP44 IP50 - Dust Protected IP54 - Dust Protected, Water Resistant IP64 IP65 IP65 - Dust Tight, Water Resistant IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof IP65/IP67G/IP69K - Dust Tight, Water Resistant, Waterproof IP66 IP66 - Dust Tight, Water Resistant IP66, Nema 4X, 13 IP66/IP67 - Dust Tight, Water Resistant, Waterproof IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof IP67 IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof, NEMA 4X IP67/IP68/IP68G/IP69 - Dust Tight, Oil and Water Resistant, Waterproof IP67/IP68/IP69K - Dust Tight, Oil and Water Resistant, Waterproof IP67/IP68G/IP69 - Dust Tight, Oil and Water Resistant, Waterproof IP67/IP68G/IP69K - Dust Tight, Oil and Water Resistant, Waterproof IP67/IP69K - Dust Tight, Water Resistant, Waterproof IP67F - Dust Tight, Oil Resistant, Waterproof IP67F/IP69K - Dust Tight, Oil and Water Resistant, Waterproof IP67G - Dust Tight, Oil Resistant, Waterproof IP68, Nema 4X, 13	- Domed, Clear Domed, Diffused Flat Flat, Clear Flat, Diffused Tubular Tubular, Clear Tubular, Diffused

全部重置

应用所有

结果:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Illumination Color	Luminous Flux	Profile (W x H)	Power - Rated	Voltage - Supply	Features	Housing Material	Length	Rated Life	Termination Style	Operating Temperature	Approval Agency	Ingress Protection	Lens Type
WLS27XWGRYB5-1130DS24Q MULTICOLOR LIGHT STRIP 1130MM Banner Engineering Corporation	2,621	-	RFQ	Datasheet	WLS27	Box	Active	Red, Green, Blue, Yellow, White	740lm Red, 16000lm Green, 500lm Blue, 2280lm Yellow, 2600lm White	1.06" (27.0mm) Dia	-	12 ~ 30VDC	-	Aluminum (Al)	44.49" (1130.0mm)	-	Connector (M12)	-40°C ~ 70°C	CE, cULus	IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof	Tubular, Diffused

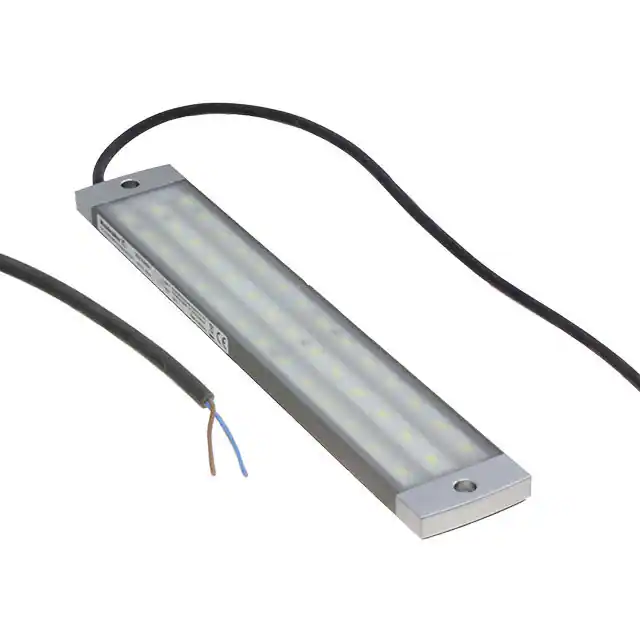

2436210000 LED CABINET/ENCLOSURE LIGHTING, Weidmüller	3,330	-	RFQ	Datasheet	-	Box	Active	White, Cool	711lm	1.57" x 0.32" (40.0mm x 8.0mm)	8.5W	24VDC	-	Aluminum (Al)	9.45" (240.0mm)	60,000 Hours	Cable with Connector (M12)	-20°C ~ 60°C	CE, cULus	IP67 - Dust Tight, Waterproof	Flat, Clear
WLS15XDW0500DSC2 WORK LIGHT STRIP 500MM Banner Engineering Corporation	3,788	-	RFQ	Datasheet	WLS15	Box	Active	White, Cool	525lm	1.20" x 0.61" (30.6mm x 15.5mm)	-	12 ~ 24VDC	Dimmable	Aluminum (Al)	19.69" (500.0mm)	-	Cable Leads	-40°C ~ 60°C	CE, cULus	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	Flat, Diffused
WLR95WQ COMPACT AREA LIGHT 12-30VDC Banner Engineering Corporation	1	-	RFQ	Datasheet	WLR95	Box	Active	White, Cool	-	1.93" x 0.67" (49.0mm x 17.0mm)	-	12 ~ 30VDC	-	Thermoplastic Polyurethane (TPU)	3.70" (94.0mm)	70,000 Hours	Connector (M12)	-40°C ~ 50°C	CE, cULus, UL	IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof	Flat
WLB32C570MQ WORK LIGHT STRIP 570MM Banner Engineering Corporation	3,950	-	RFQ	Datasheet	WLB32	Box	Active	White, Cool	1500lm	1.26" x 1.81" (32.0mm x 46.0mm)	-	12 ~ 30VDC	Motion Detection	Aluminum (Al)	22.44" (570.0mm)	50,000 Hours	Connector (M12)	-40°C ~ 70°C	CE, cULus	IP50 - Dust Protected	Tubular, Diffused
WLS28-2XW285S WLS28-2 WORK LIGHT STRIP; LENGTH Banner Engineering Corporation	1	-	RFQ	Datasheet	WLS28-2	Box	Active	White, Cool	800lm	1.10" x 0.83" (28.0mm x 21.0mm)	-	12 ~ 30VDC	Cascadable	Aluminum (Al)	11.22" (285.0mm)	75,000 Hours	Cable Leads	-40°C ~ 70°C	CE, cULus	IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof	Flat, Clear
WLS15XDW1200DSQP WORK LIGHT STRIP 1200MM Banner Engineering Corporation	1	-	RFQ	Datasheet	WLS15	Box	Active	White, Cool	1400lm	1.20" x 0.61" (30.6mm x 15.5mm)	-	12 ~ 24VDC	Dimmable	Aluminum (Al)	47.24" (1200.0mm)	-	Cable with Connector (M12)	-40°C ~ 60°C	CE, cULus	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	Flat, Diffused
WLC90WL30Q WORK LIGHT 90 X 90MM Banner Engineering Corporation	3,387	-	RFQ	Datasheet	WLC90	Box	Active	White, Cool	700lm	3.58" x 1.11" (91.0mm x 28.2mm)	-	12 ~ 30VDC	-	Aluminum (Al), Nickel Plated	3.50" (89.0mm)	-	Connector (M12)	-40°C ~ 70°C	CE, cULus	IP67/IP68G/IP69K - Dust Tight, Oil and Water Resistant, Waterproof	Flat, Clear
WLS27XW850DSQ WORK LIGHT STRIP 850MM Banner Engineering Corporation	3,082	-	RFQ	Datasheet	WLS27	Box	Active	White, Cool	2400lm	1.06" (27.0mm) Dia	-	12 ~ 30VDC	-	Aluminum (Al)	33.46" (850.0mm)	-	Connector (M12)	-40°C ~ 70°C	CE, cULus	IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof	Tubular, Diffused
WLS28PXRGBW570DXKQ STRIP LIGHT, 570MM, RGBW, QD Banner Engineering Corporation	1	-	RFQ	Datasheet	WLS28	Box	Active	Blue, Green, Red, White	-	1.18" x 1.24" (30.0mm x 31.5mm)	-	18 ~ 30VDC	IO-Link	Aluminum (Al)	22.44" (570.0mm)	-	Connector (M12)	-40°C ~ 50°C	cULus	IP50 - Dust Protected	Flat, Diffused
WLS28-2CW990DXQ WLS28-2 WORK LIGHT STRIP; DIFFUS Banner Engineering Corporation	1	-	RFQ	Datasheet	WLS28-2	Box	Active	White, Cool	2800lm	1.10" x 0.83" (28.0mm x 21.0mm)	-	12 ~ 30VDC	Cascadable	Aluminum (Al)	38.98" (990.0mm)	75,000 Hours	Connector (M12)	-40°C ~ 70°C	CE, cULus	IP50 - Dust Protected	Flat, Diffused
S15WLWQ S15WL 1 CLR IN-LINE ILLUMINATOR Banner Engineering Corporation	1	-	RFQ	Datasheet	-	Bag	Active	White	-	-	-	24VDC	-	Poly-Vinyl Chloride (PVC)	2.27" (57.7mm)	-	Connector (M12)	-40°C ~ 45°C	CE, cULus	IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof	Tubular, Clear
7L.43.0.230.1100 LED CABINET LIGHT 110-240 VAC/DC Finder Relays, Inc.	1	-	RFQ	Datasheet	7L	Box	Active	White	600lm	1.77" (45.0mm) Dia	6W	110 ~ 240VAC/DC	On/Off Switching	Plastic	12.23" (310.6mm)	60,000 Hours	Connector	-30°C ~ 55°C	CE	IP20	Tubular
7L.46.0.230.1100 LED CABINET LIGHT 110-240 VAC/DC Finder Relays, Inc.	1	-	RFQ	Datasheet	7L	Box	Active	White	1200lm	1.77" (45.0mm) Dia	9W	110 ~ 240VAC/DC	On/Off Switching	Plastic	12.23" (310.6mm)	60,000 Hours	Connector	-30°C ~ 55°C	CE	IP20	Tubular

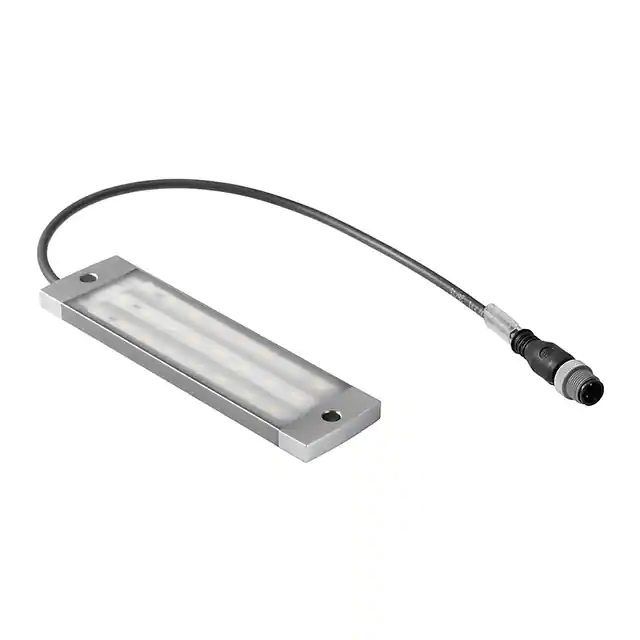

2535770000 ENCLOSURE/CABINET LIGHTING WITH Weidmüller	3,251	-	RFQ	Datasheet	-	Box	Active	White, Cool	340lm	1.57" x 0.32" (40.0mm x 8.0mm)	5.0W	24VDC	-	Aluminum (Al)	5.71" (145.0mm)	60,000 Hours	Cable with Connector (M12)	-20°C ~ 60°C	CE, cULus	IP67 - Dust Tight, Waterproof	Flat, Clear
7L.46.0.230.2100 LED CABINET LIGHT 110-240 VAC/DC Finder Relays, Inc.	1	-	RFQ	Datasheet	7L	Box	Active	White	1200lm	1.77" (45.0mm) Dia	9W	110 ~ 240VAC/DC	Motion Detection	Plastic	12.23" (310.6mm)	60,000 Hours	Connector	-30°C ~ 55°C	CE	IP20	Tubular
7L.46.0.024.2200 LED CABINET LIGHT 12-48 V AC/DC Finder Relays, Inc.	1	-	RFQ	Datasheet	7L	Box	Active	White	1200lm	1.77" (45.0mm) Dia	9W	12 ~ 48VAC/DC	Motion Detection	Plastic	12.23" (310.6mm)	60,000 Hours	Connector	-30°C ~ 55°C	CE	IP20	Tubular
LF2B-C3P-BTHWW2-1M LED BAR IP65 330MM 12V 24VDC IDEC	2,008	-	RFQ	Datasheet	LF2B	Bulk	Active	White, Cool	360lm	1.57" x 1.14" (40.0mm x 29.0mm)	4.9W	12/24VDC	-	Polycarbonate (PC)	12.99" (330.0mm)	40,000 Hours	Cable Leads	-30°C ~ 55°C	CE, cULus	IP65 - Dust Tight, Water Resistant	Flat, Clear
WLS15XGR0220DSQP DUAL COLOR LIGHT STRIP 220MM Banner Engineering Corporation	1	-	RFQ	Datasheet	WLS15	Box	Active	Green, Red	105lm Green, 55lm Red	1.20" x 0.61" (30.6mm x 15.5mm)	-	12 ~ 24VDC	-	Aluminum (Al)	8.66" (220.0mm)	-	Cable with Connector (M12)	-40°C ~ 60°C	CE, cULus	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	Flat, Diffused
WLS15XWR0220DSQP DUAL COLOR LIGHT STRIP 220MM Banner Engineering Corporation	1	-	RFQ	Datasheet	WLS15	Box	Active	Red, White	175lm Red, 55lm White	1.20" x 0.61" (30.6mm x 15.5mm)	-	12 ~ 24VDC	-	Aluminum (Al)	8.66" (220.0mm)	-	Cable with Connector (M12)	-40°C ~ 60°C	CE, cULus	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	Flat, Diffused

Total 3102 Record«Prev 1... 24 25 26 272829 30 31...156 Next»
