Force Sensors, Load Cells - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Operating Force | Output | Accuracy | Voltage - Supply | Actuator Type | Actuator Style/Size | Includes | Sensor Type | Operating Temperature | Compensated Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FX293X-040B-0100-LFORCE SENSOR |
8 |
|
- |
50.00kgf (110lbs) | 0.5 V ~ 4.5 V | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | - | Load Cell | Sensor | 0°C ~ 85°C | |
|

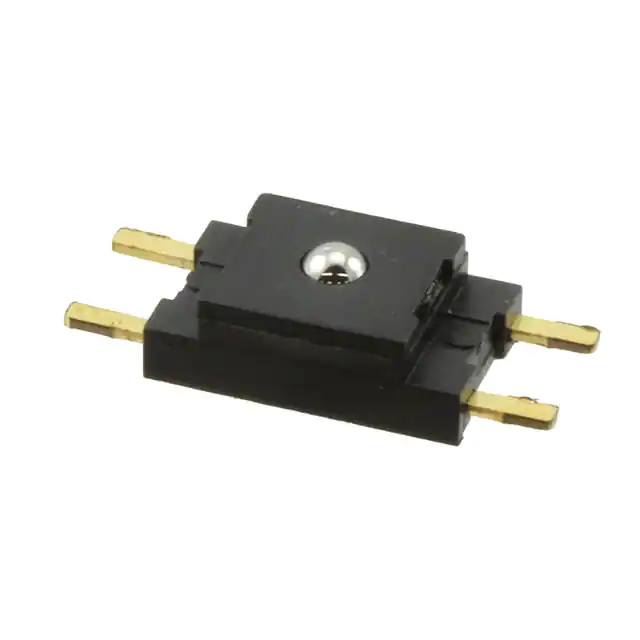

FSS010WNSBSENSOR FORCE SURF MOUNT 2.248LBS |
25 |
|
- |
0 ~ 10N | Analog, Ratiometric | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Resistive | Sensor | -40°C ~ 85°C | |
|
060-1432-04SENSOR FORCE LOAD CELL 250LBS |
2 |
|
- |
113.4kgf (250lbs) | Voltage | ±0.15% | 15°C ~ 71°C | 5V | Diaphragm | Stud, 1/4-28 UNF | Load Cell | Sensor | -54°C to 121°C | |
|
|
FX293X-040B-0050-LFORCE SENSOR |
37 |
|
- |
25.00kgf (55lbs) | 0.5 V ~ 4.5 V | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | - | Load Cell | Sensor | 0°C ~ 85°C | |
|
|
FX292X-100B-0200-LCOMPACT COMPRESSION LOAD CELL |
81 |
|
- |
90.72kgf (200lbs) | Analog Voltage | - | 50°C | 1V ~ 6V | Pushbutton | - | Load Cell | Sensor | 0°C ~ 50°C | |
|
|
FC2211-0000-0025-LMID RANGE COMPRESSION SENSOR |
8 |
|
- |
11.34kgf (25lbs) | 100mV | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | Round, 6mm | Load Cell | Sensor | -40°C ~ 85°C | |
|
FSS1500NGRSENSOR FORCE UNCOMPENSATED 1.5KG |
12 |
|
- |
1.5kgf (3.3lbs) | Analog, Ratiometric | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Resistive | Sensor | -40°C ~ 85°C | |
|
FX292X-040B-0100-LFORCE SENSOR |
35 |
|
- |
50.00kgf (110lbs) | Analog Voltage | ±1% | 0°C ~ 50°C | 1V ~ 6V | Pushbutton | - | Load Cell | Sensor | 0°C ~ 85°C | |
|
|
FX29K0-040B-0025-LFORCE SENSOR |
4 |
|
- |
12.50kgf (28lbs) | Digital | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Load Cell | Sensor | 0°C ~ 85°C | |
|
FSS1500NSTSENSOR FORCE SURF MOUNT 3.3LBS |
12 |
|
- |
1.5kgf (3.3lbs) | 180mV | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Resistive | Sensor | -40°C ~ 85°C | |
|
|

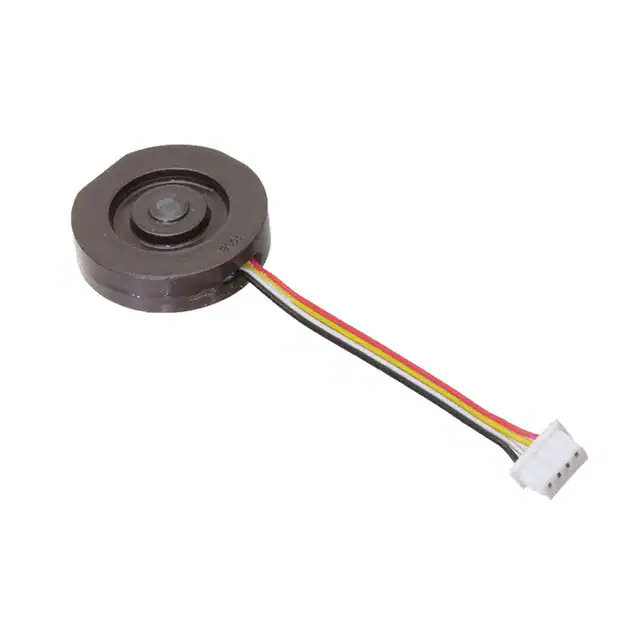

FX292X-040B-0010-LFORCE SENSOR |
16 |
|
- |
5.00kgf (11lbs) | Analog Voltage | ±1% | 0°C ~ 50°C | 1V ~ 6V | Pushbutton | - | Load Cell | Sensor | 0°C ~ 85°C | |
|

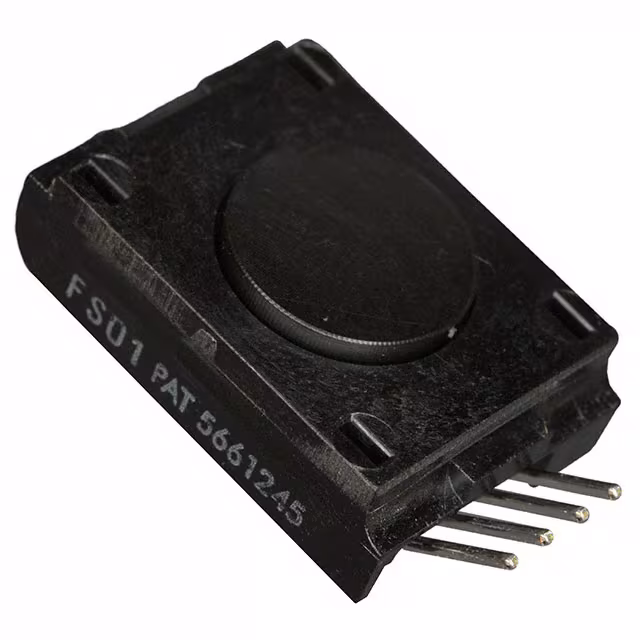

FS01SENSOR FORCE SURF MOUNT 1.5LBS |
4,112 |
|
- |
0.68kgf (1.5lbs) | 1V | - | 5°C ~ 50°C | 5V | Pushbutton | Round, 12.2mm | Resistive | Sensor | 0°C ~ 70°C | |
|
|
DBBSM-10kg-003-0000-10kg Universal S-Beam Force Se |
4 |
|
- |
10.00kgf (22lbs) | 2.7mV | ±0.03% | 0°C ~ 70°C | 2V ~ 15V | S-Beam | Internal Thread, M8 x 1.25 | Load Cell | Sensor | -20°C ~ 80°C | |
|
|
DBBSM-2kg-003-0000-2kg Universal S-Beam Force Sen |
4 |
|
- |
2.00kgf (4lbs) | 2.7mV | ±0.03% | 0°C ~ 70°C | 2V ~ 15V | S-Beam | Internal Thread, M8 x 1.25 | Load Cell | Sensor | -20°C ~ 80°C | |
|

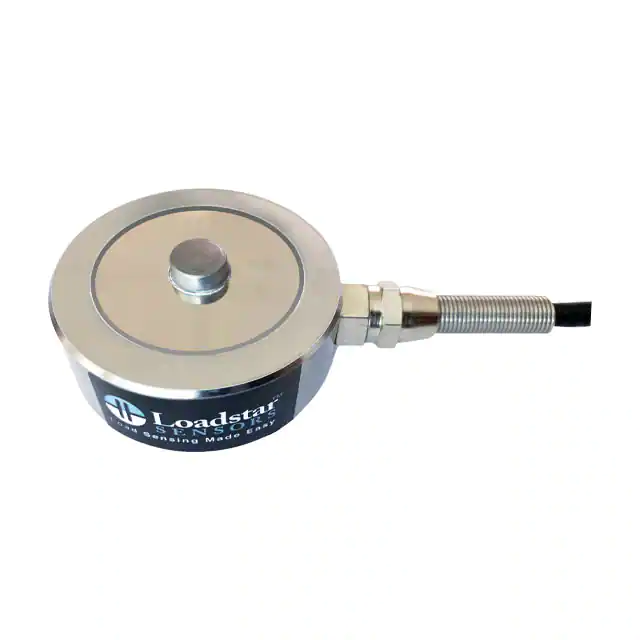

RSB2-25M-S25 KGF BUTTON LOAD CELL |
10 |
|
- |
25.00kgf (55lbs) | Analog Voltage mV/V (millivolts) | ±0.05% | -10°C ~ 40°C | 5V ~ 10V | Pushbutton | - | Load Cell | Sensor | -20°C ~ 60°C | |
|
|
RSB2-250M-S250 KGF BUTTON LOAD CELL |
10 |
|
- |
250.00kgf (551lbs) | Analog Voltage mV/V (millivolts) | ±0.05% | -10°C ~ 40°C | 5V ~ 10V | Pushbutton | - | Load Cell | Sensor | -20°C ~ 60°C | |
|
|
RSB2-50M-S50 KGF BUTTON LOAD CELL |
10 |
|
- |
50.00kgf (110lbs) | Analog Voltage mV/V (millivolts) | ±0.05% | -10°C ~ 40°C | 5V ~ 10V | Pushbutton | - | Load Cell | Sensor | -20°C ~ 60°C | |
|
|
RSB2-100M-S100 KGF BUTTON LOAD CELL |
10 |
|
- |
100.00kgf (220lbs) | Analog Voltage mV/V (millivolts) | ±0.05% | -10°C ~ 40°C | 5V ~ 10V | Pushbutton | - | Load Cell | Sensor | -20°C ~ 60°C | |
|
RAS1-250S-S250 LB S-BEAM LOAD CELL |
9 |
|
- |
113.40kgf (250lbs) | Analog Voltage mV/V (millivolts) | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Load Cell | Sensor | -20°C ~ 60°C | |
|
|
RAS1-100S-S100 LB S-BEAM LOAD CELL |
9 |
|
- |
45.36kgf (100lbs) | Analog Voltage mV/V (millivolts) | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Load Cell | Sensor | -20°C ~ 60°C |
