Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Current Rating (Amps) | Features | Must Operate | Approval Agency | Must Release | Ingress Protection | Conduit Thread Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1202570008INTERLOCK MAGNETIC DPST |
1 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | Non-Contact | Cable Leads | 200mA (DC) | - | 8mm | TUV, UL | 18mm | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -25°C ~ 80°C |
|
1202570011INTERLOCK MAGNETIC DPST |
1 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | 200mA (DC) | - | 8mm | TUV, UL | 18mm | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -25°C ~ 80°C |
|
1202570010INTERLOCK MAGNETIC DPST |
1 |
|
- |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | Non-Contact | Cable Leads | 200mA (DC) | - | 8mm | TUV, UL | 18mm | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -25°C ~ 80°C |
|
6025100INTERLOCK NON-LOCKING DPST |
1 |
|
Datasheet |
i12S | Bulk | Active | Non-Locking | DPST-NC | 240VAC, 24VDC | - | 612gf | Panel Disconnect | Screw Terminal | 3A (AC), 2A (DC) | - | - | CCC, CE, cULus | - | IP67 - Dust Tight, Waterproof | M16 | -20°C ~ 80°C |
|

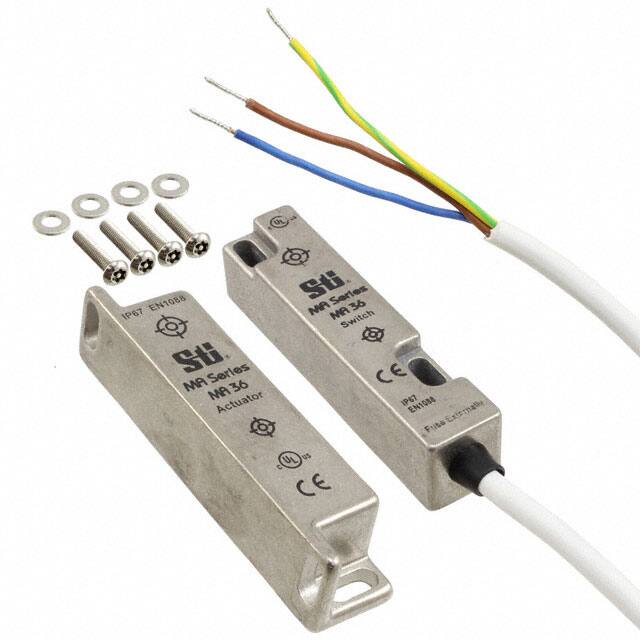

MA-36AS10C3INTERLOCK MAGNETIC SPST |
1 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 230VAC | - | - | Non-Contact | Cable Leads | 2A (AC) | - | 7 ~ 12mm | CE, cULus | 12 ~ 25mm | IP67 - Dust Tight, Waterproof | - | -10°C ~ 55°C |
|
|
1058850INTERLOCK NON-LOCKING 3PST |
1 |
|
- |
i17S | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC, 24VDC | - | 1kgf | Panel Disconnect | Connector (M12) | 3A (AC), 2A (DC) | - | - | CCC, CE, cULus | - | IP67 - Dust Tight, Waterproof | M20 x3 | -20°C ~ 80°C |
|

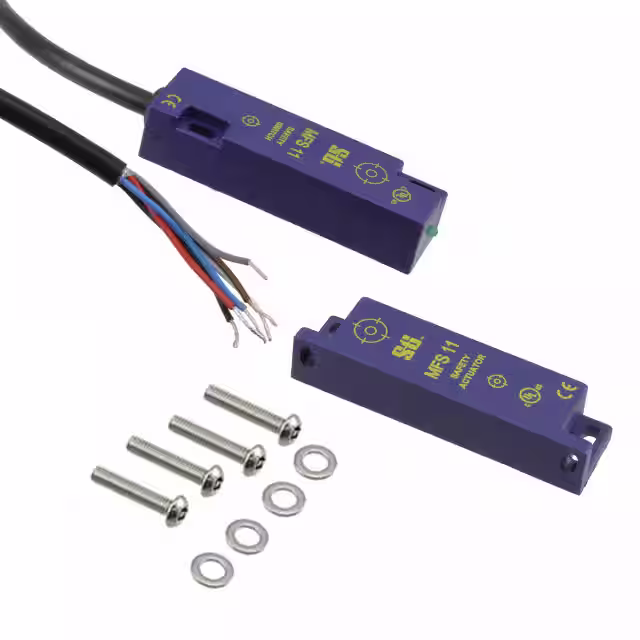

MFS-11P20C10INTERLOCK MAGNETIC DPST |
1 |
|
Datasheet |
MFS-STI | Bulk | Active | Magnetic | DPST-NC | 230VAC, 30VDC | 24VDC | - | Non-Contact | Cable Leads | 2A (AC/DC) | Status Indicator | 6 ~ 9mm | CE, cULus | 10 ~ 12mm | IP67 - Dust Tight, Waterproof | - | -10°C ~ 55°C |
|

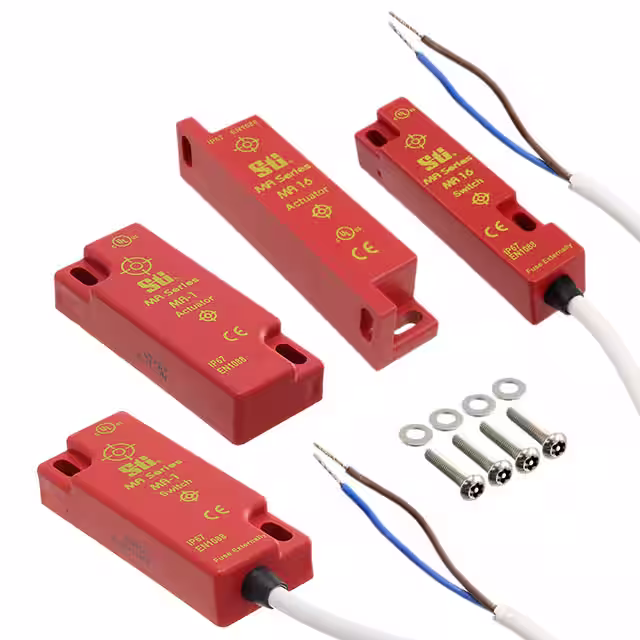

MA-1APC8INTERLOCK MAGNETIC SPST |
1 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 230VAC | - | - | Non-Contact | Cable Leads | 2A (AC) | - | 7 ~ 12mm | CE, cULus | 12 ~ 25mm | IP67 - Dust Tight, Waterproof | - | -10°C ~ 55°C |
|

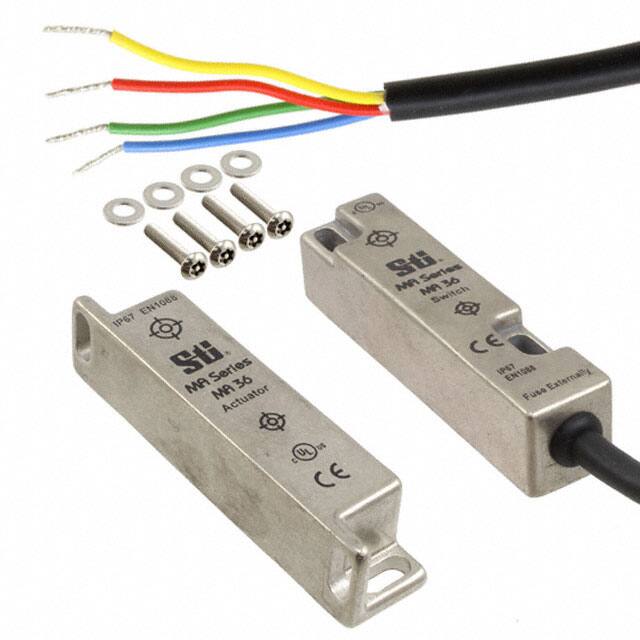

MA-36DS11C3INTERLOCK MAGNETIC DPST |
1 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 30VDC | - | - | Non-Contact | Cable Leads | 1A (DC) | - | 7 ~ 12mm | CE, cULus | 12 ~ 25mm | IP67 - Dust Tight, Waterproof | - | -10°C ~ 55°C |
|
601.8119.045INTERLOCK SOLENOID RELEASE 4PST |
1 |
|
Datasheet |
SLK | Box | Active | Solenoid Release | 4PST-2NO/2NC | 230VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | 2.5A (AC) | Manual Override | - | - | - | IP67 - Dust Tight, Waterproof | M20 x3 | -25°C ~ 70°C |
|

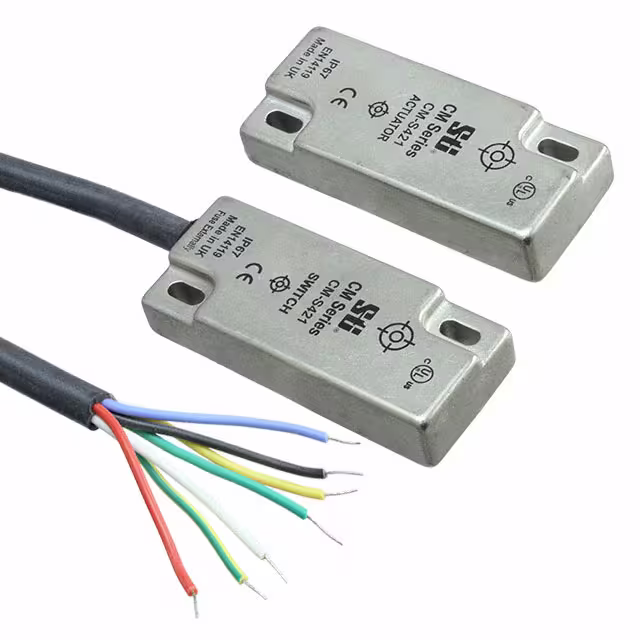

CM-S421SC5INTERLOCK MAGNETIC 3PST |
1 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | Non-Contact | Cable Leads | 500mA (DC) | - | 7mm | CE, cULus, TUV | 10mm | IP67 - Dust Tight, Waterproof | - | -10°C ~ 55°C |
|
SI-LS42DMMHINTERLOCK SOLENOID LOCKING DPST |
2,353 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | 1A (AC) | Manual Override | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | M20 | -25°C ~ 70°C |
|

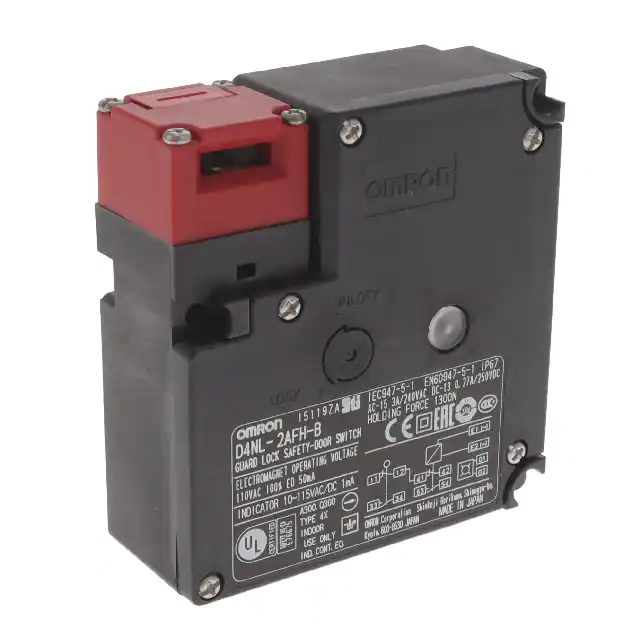

D4NL-2AFH-BINTERLOCK SOLENOID LOCKING DPST |
1 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Locking | DPST-NO/NC (DB/DM) x 2 | 240VAC, 250VDC | 110VAC | 133kgf | Panel Disconnect | Screw Terminal | 3A (AC), 270mA (DC) | Status Indicator | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | G1/2 | -10°C ~ 55°C |
|
T4016-031SMINTERLOCK NON-LOCKING 3PST |
1 |
|
Datasheet |
T4016 | Bulk | Active | Non-Locking | 3PST-NC + SPST-NO | 230VAC, 24VDC | - | 5kgf | Panel Disconnect | Screw Terminal | 4A (AC/DC) | - | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | 1/2" NPT x3 | -20°C ~ 80°C |
|
SI-LS42DMSHFINTERLOCK SOLENOID RELEASE DPST |
1 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | 1A (AC) | Manual Override | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | M20 | -25°C ~ 70°C |
|
|
SI-LS42WMGINTERLOCK SOLENOID LOCKING DPST |
3,269 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | 1A (AC) | Manual Override | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | M20 | -25°C ~ 70°C |
|
SI-LS42WMHINTERLOCK SOLENOID LOCKING DPST |
4,286 |
|
Datasheet |
SI-LS42 | Box | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | 1A (AC) | Manual Override | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | M20 | -25°C ~ 70°C |
|
|
6026140INTERLOCK SOLENOID LOCKING 5PST |
1 |
|
Datasheet |
i200 Lock | Bulk | Active | Solenoid Locking | 5PST-3NC/2NO | 240VAC, 24VDC | 20.4 ~ 26.4VDC | 265kgf | Panel Disconnect | Screw Terminal | 3A (AC/DC) | - | - | CCC, CE, cULus | - | IP65 - Dust Tight, Water Resistant | M20 x3 | -20°C ~ 60°C |
|
SI-LS42DMMJFINTERLOCK SOLENOID LOCKING 3PST |
1 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-NC + SPST-NC | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | 1A (AC) | Manual Override | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | M20 | -25°C ~ 70°C |
|
|
SI-LS42WMMHINTERLOCK SOLENOID LOCKING DPST |
3,621 |
|
Datasheet |
SI-LS42 | Box | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | 1A (AC) | Manual Override | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | M20 | -25°C ~ 70°C |
