Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Technology | Number of Channels | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Mounting Style | Rise / Fall Time (Typ) | Current - Output High, Low | Voltage - Isolation | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Operating Temperature | Current - DC Forward (If) (Max) | Supplier Device Package | Qualification | Voltage - Output Supply | Grade | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

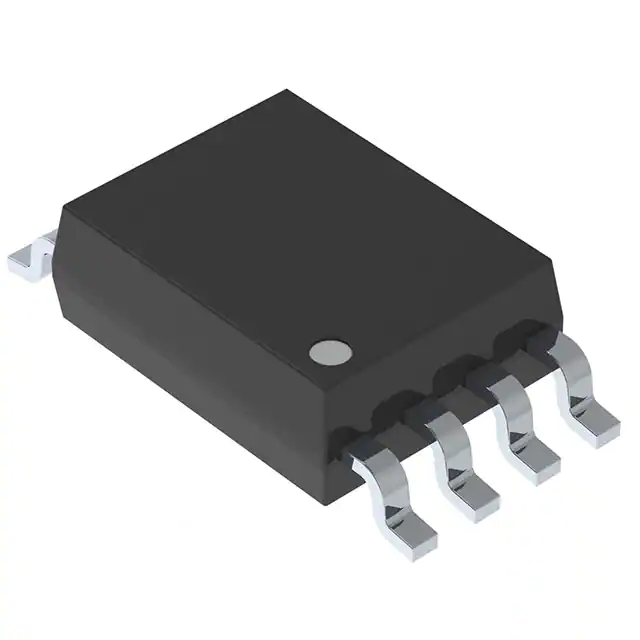

NCD57090FDWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC onsemi |
739 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 100kV/µs | 90ns, 90ns | 30ns | Surface Mount | 13ns, 13ns | 6.5A, 6.5A | 5000Vrms | 6.5A | - | -40°C ~ 125°C | - | 8-SOIC | - | 0V ~ 32V | - | VDE |
|
NCD57081BDR2GISOLATED DRIVER IN A COMPACT 8-P onsemi |
2,482 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 100kV/µs | 90ns, 90ns | 25ns | Surface Mount | 13ns, 13ns | 6.5A, 6.5A | 3750Vrms | 6.5A | - | -40°C ~ 150°C (TJ) | - | 8-SOIC | - | 0V ~ 32V | - | UL, VDE |
|
|
NCD57081CDR2GISOLATED DRIVER IN A COMPACT 8-P onsemi |
2,392 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 100kV/µs | 90ns, 90ns | 25ns | Surface Mount | 13ns, 13ns | 6.5A, 6.5A | 3750Vrms | 6.5A | - | -40°C ~ 150°C (TJ) | - | 8-SOIC | - | 0V ~ 32V | - | UL, VDE |
|
|
NCD57081ADR2GISOLATED DRIVER IN A COMPACT 8-P onsemi |
2,199 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 100kV/µs | 90ns, 90ns | 25ns | Surface Mount | 13ns, 13ns | 6.5A, 6.5A | 3750Vrms | 6.5A | - | -40°C ~ 150°C (TJ) | - | 8-SOIC | - | 0V ~ 32V | - | UL, VDE |
.jpg)
|
FOD8320OPTOISO 5KV 1CH GATE DVR 5SOP onsemi |
2,000 |
|
Datasheet |
- | 6-SOIC (0.362", 9.20mm Width), 5 Leads | Tube | Active | Optical Coupling | 1 | 35kV/µs | 400ns, 400ns | 100ns | Surface Mount | 60ns, 60ns | 2A, 2A | 5000Vrms | 3A | 1.5V | -40°C ~ 100°C | 25 mA | 5-SOP | - | 16V ~ 30V | - | UL |
|
|
FOD8383OPTOISO 5KV 1CH GATE DVR 5SOP onsemi |
2,000 |
|
Datasheet |
- | 6-SOIC (0.362", 9.20mm Width), 5 Leads | Tube | Active | Optical Coupling | 1 | 35kV/µs | 210ns, 210ns | 65ns | Surface Mount | 35ns, 25ns | 2.5A, 2.5A | 5000Vrms | 3A | 1.43V | -40°C ~ 100°C | 25 mA | 5-SOP | - | 15V ~ 30V | - | UL |
|
|
FOD8383VOPTOISO 5KV 1CH GATE DVR 5SOP onsemi |
2,000 |
|
Datasheet |
- | 6-SOIC (0.362", 9.20mm Width), 5 Leads | Tube | Active | Optical Coupling | 1 | 35kV/µs | 210ns, 210ns | 65ns | Surface Mount | 35ns, 25ns | 2.5A, 2.5A | 5000Vrms | 3A | 1.43V | -40°C ~ 100°C | 25 mA | 5-SOP | - | 15V ~ 30V | - | IEC/EN/DIN, UL |
|
|
NCP51563BBDWR2G5 KVRMS ISOLATED DUAL CHANNEL 4. onsemi |
935 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width), 14 Leads | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 200V/ns | 58ns, 58ns | 5ns | Surface Mount | 11ns, 10ns | 2.6A, 7A | 5000Vrms | 4.5A, 9A | - | -40°C ~ 125°C | - | 16-SOIC | - | 9.5V ~ 30V | - | CQC, UL, VDE |
|
|
NCP51563CADWR2G5 KVRMS ISOLATED DUAL CHANNEL 4. onsemi |
833 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width), 14 Leads | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 200V/ns | 58ns, 58ns | 5ns | Surface Mount | 11ns, 10ns | 2.6A, 7A | 5000Vrms | 4.5A, 9A | - | -40°C ~ 125°C | - | 16-SOIC | - | 14.5V ~ 30V | - | CQC, UL, VDE |
|
|
NCV51563BBDWR2G5 KVRMS ISOLATED DUAL CHANNEL 4. onsemi |
810 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width), 14 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 200V/ns | 58ns, 58ns | 5ns | Surface Mount | 11ns, 10ns | 2.6A, 7A | 5000Vrms | 4.5A, 9A | - | -40°C ~ 125°C | - | 16-SOIC | AEC-Q100 | 9.5V ~ 30V | Automotive | CQC, UL, VDE |
