Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Technology | Number of Channels | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Mounting Style | Rise / Fall Time (Typ) | Current - Output High, Low | Voltage - Isolation | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Operating Temperature | Current - DC Forward (If) (Max) | Supplier Device Package | Qualification | Voltage - Output Supply | Grade | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

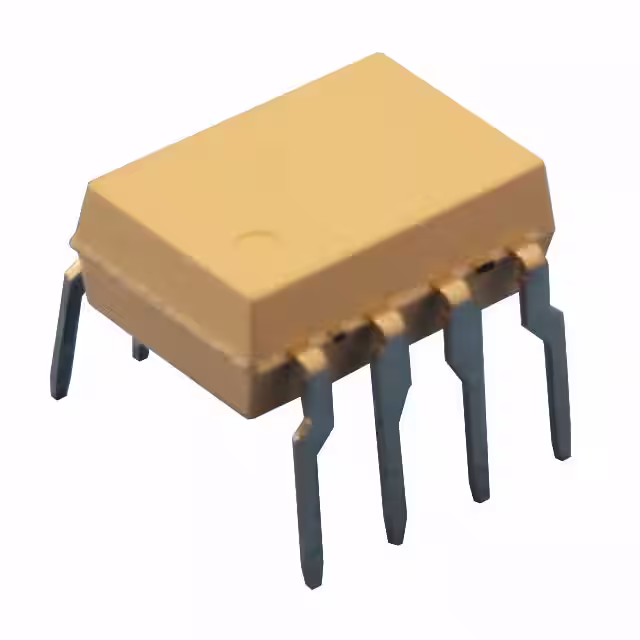

PS9505-AXOPTOISO 5KV 1CH GATE DVR 8DIP Renesas Electronics Corporation |
3,941 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Strip | Not For New Designs | Optical Coupling | 1 | 25kV/µs | 250ns, 250ns | 100ns | Through Hole | 50ns, 50ns | 2A, 2A | 5000Vrms | 2.5A | 1.56V | -40°C ~ 110°C | 25 mA | 8-DIP | - | - | - | CSA, SEMKO, UL |
|
PS9306L-AXOPTOISO 5KV 1CH GATE DVR 6SDIP Renesas Electronics Corporation |
3,082 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Strip | Not For New Designs | Optical Coupling | 1 | 25kV/µs | 400ns, 400ns | 250ns | Surface Mount | 50ns, 50ns | 400mA, 400mA | 5000Vrms | 600mA | 1.56V | -40°C ~ 110°C | 25 mA | 6-SDIP Gull Wing | - | 10V ~ 30V | - | CSA, SEMKO, UL |
|
PS9505-V-AXOPTOISO 5KV 1CH GATE DVR 8DIP Renesas Electronics Corporation |
4,589 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Strip | Not For New Designs | Optical Coupling | 1 | 25kV/µs | 250ns, 250ns | 100ns | Through Hole | 50ns, 50ns | 2A, 2A | 5000Vrms | 2.5A | 1.56V | -40°C ~ 110°C | 25 mA | 8-DIP | - | 15V ~ 30V | - | CSA, SEMKO, UL, VDE |
|
PS9505L1-AXOPTOISO 5KV 1CH GATE DVR 8DIP Renesas Electronics Corporation |
2,460 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Not For New Designs | Optical Coupling | 1 | 25kV/µs | 250ns, 250ns | 100ns | Through Hole | 50ns, 50ns | 2A, 2A | 5000Vrms | 2.5A | 1.56V | -40°C ~ 110°C | 25 mA | 8-DIP | - | 15V ~ 30V | - | CSA, SEMKO, UL |
|
PS9505L2-AXOPTOISO 5KV 1CH GATE DVR 8DIP GW Renesas Electronics Corporation |
3,557 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Not For New Designs | Optical Coupling | 1 | 25kV/µs | 250ns, 250ns | 100ns | Surface Mount | 50ns, 50ns | 2A, 2A | 5000Vrms | 2.5A | 1.56V | -40°C ~ 110°C | 25 mA | 8-DIP Gull Wing | - | 15V ~ 30V | - | CSA, SEMKO, UL |
|
|
PS9307L2-E3-AXOPTOISO 5KV 1CH GATE DRIVER 6SMD Renesas Electronics Corporation |
2,356 |
|
Datasheet |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Not For New Designs | Optical Coupling | 1 | 50kV/µs | 175ns, 175ns | 90ns | Surface Mount | 30ns, 30ns | 400mA, 400mA | 5000Vrms | 600mA | 1.56V | -40°C ~ 125°C | 25 mA | - | - | 10V ~ 30V | - | CSA, SEMKO, UL |
|
|
PS9307L-V-E3-AXOPTOISO 5KV 1CH GATE DVR 6SDIP Renesas Electronics Corporation |
3,762 |
|
Datasheet |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Not For New Designs | Optical Coupling | 1 | 50kV/µs | 175ns, 175ns | 90ns | Surface Mount | 30ns, 30ns | 400mA, 400mA | 5000Vrms | 600mA | 1.56V | -40°C ~ 125°C | 25 mA | 6-SDIP | - | 10V ~ 30V | - | CSA, SEMKO, UL, VDE |
|
|
PS9505L2-E3-AXOPTOISO 5KV 1CH GATE DVR 8DIP GW Renesas Electronics Corporation |
3,109 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Not For New Designs | Optical Coupling | 1 | 25kV/µs | 250ns, 250ns | 100ns | Surface Mount | 50ns, 50ns | 2A, 2A | 5000Vrms | 2.5A | 1.56V | -40°C ~ 110°C | 25 mA | 8-DIP Gull Wing | - | 15V ~ 30V | - | CSA, SEMKO, UL |
|
PS9305L-E3-AXOPTOISO 5KV 1CH GATE DVR 8SDIP Renesas Electronics Corporation |
2,837 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Not For New Designs | Optical Coupling | 1 | 25kV/µs | 250ns, 250ns | 100ns | Surface Mount | 50ns, 50ns | 2A, 2A | 5000Vrms | 2.5A | 1.56V | -40°C ~ 110°C | 25 mA | 8-SDIP Gull Wing | - | 15V ~ 30V | - | CSA, SEMKO, UL |
|
|
PS9307L-AXOPTOISO 5KV 1CH GATE DVR 6SDIP Renesas Electronics Corporation |
2,982 |
|
Datasheet |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Bag | Not For New Designs | Optical Coupling | 1 | 50kV/µs | 175ns, 175ns | 90ns | Surface Mount | 30ns, 30ns | 400mA, 400mA | 5000Vrms | 600mA | 1.56V | -40°C ~ 125°C | 25 mA | 6-SDIP | - | 10V ~ 30V | - | CSA, SEMKO, UL |
