Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STGAP2GSNCTRDIGITAL ISO 4KV 1CH GATE DVR 8SO STMicroelectronics |
1,355 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 4000Vrms | 100V/ns | 50ns, 50ns | 8ns | 30ns, 30ns | 3A, 3A | 3A | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 150°C | Surface Mount | 8-SO | VDE |
|
|
STGAP2SICSANCTRDGTL ISO 2.83KV 1CH GATE DVR 8SO STMicroelectronics |
2,758 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 2830Vrms | 100V/ns | - | 20ns | 30ns, 30ns | - | 4A | - | - | 3.1V ~ 5.25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
|
STGAP2GSCTRDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
401 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 50ns, 50ns | 8ns | 30ns, 30ns | 3A, 3A | 3A | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 150°C | Surface Mount | 8-SO | VDE |
|
|
STGAP2SICSACTRDGTL ISO 3.53KV 1CH GATE DVR 8SO STMicroelectronics |
1,235 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3530Vrms | 100V/ns | - | 20ns | 30ns, 30ns | - | 4A | - | - | 3.1V ~ 5.25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
|
STGAP2SICSNCTRDGTL ISO 4.8KV 1CH GATE DVR 8SO STMicroelectronics |
2,429 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 4800Vpk | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, - | - | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | UL, VDE |
|
|
STGAP2SICSNCDIGITAL ISO 4KV 1CH GATE DVR 8SO STMicroelectronics |
1,000 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Capacitive Coupling | 1 | 4000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, - | 4A | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | UL, VDE |
|
|
STGAP2SICSTRDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
950 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
|
STGAP2SICSCTRDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
855 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|

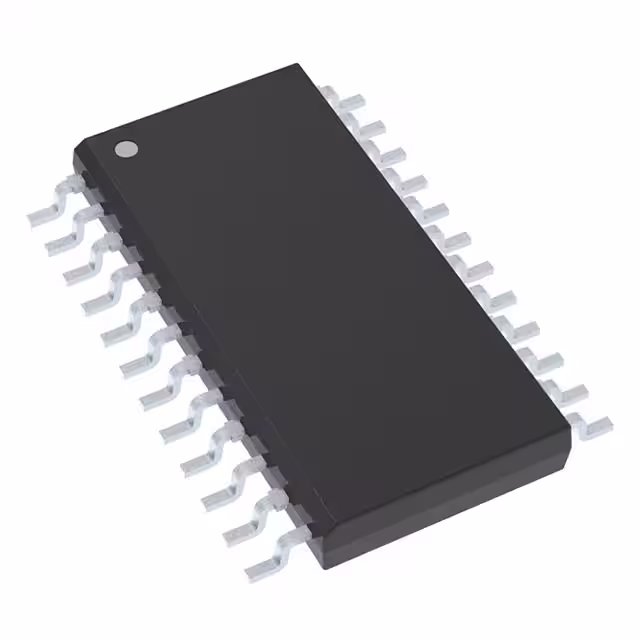

STGAP1BSTRSNGL ISOLATED GATE DRIVER 24SO STMicroelectronics |
981 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 24-SO | - |
|

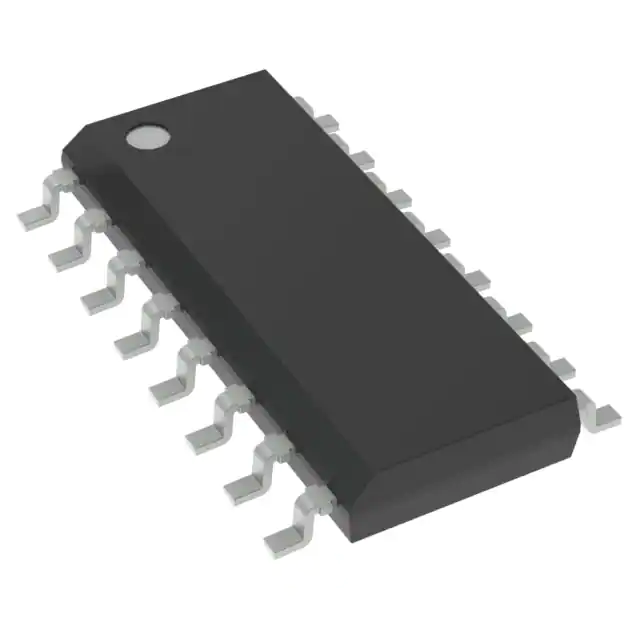

STGAP2DMTRDGTL ISO 1.7KV 2CH GATE DVR 16SO STMicroelectronics |
2,845 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | 16-SO | - |
