Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-K342-560EOPTOISO 5KV 1CH GATE DVR 8SO Broadcom Limited |
4,124 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 350ns, 250ns | - | 22ns, 18ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
ACPL-H312-500EOPTOISO 3.75KV 1CH GATE DVR 8SO Broadcom Limited |
2,890 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
ACPL-W347-000EOPTOISO 5KV 1CH GATE DRIVER 6SO Broadcom Limited |
2,485 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 110ns, 110ns | 40ns | 8ns, 8ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|

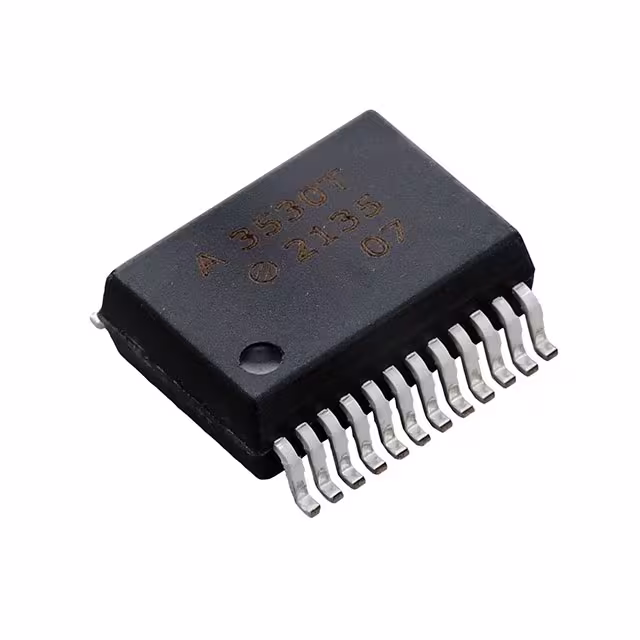

ACFJ-3530T-000EOPTOISO 5KV 1CH GATE DVR 24SOIC Broadcom Limited |
1,173 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 100ns | 15ns, 15ns | 1.5A, 1.5A | 2.5A | 1.55V | - | 15.2V ~ 16.8V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CSA, UL, VDE |
|
|
ACPL-W349-000EOPTOISO 5KV 1CH GATE DVR 6SO Broadcom Limited |
1,170 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 110ns, 110ns | 40ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO | CSA, UR |
|
ACPL-330J-500EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
3,374 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
ACPL-344JT-000EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
1,097 |
|
Datasheet |
R²Coupler™ | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 250ns, 250ns | 100ns | 70ns, 50ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 15V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
ACNT-H313-500EOPTOISO 7.5KV 1CH GATE DVR 8SO Broadcom Limited |
4,970 |
|
Datasheet |
- | 8-SOIC (0.535", 13.60mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.45V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
ACPL-P340-060EOPTOISO 3.75KV 1CH GATE DRVR 6SO Broadcom Limited |
3,300 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
ACPL-W302-000EOPTOISO 5KV 1CH GATE DVR 6SO Broadcom Limited |
3,588 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO | CSA, UR |
