Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Technology | Number of Channels | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Mounting Style | Rise / Fall Time (Typ) | Current - Output High, Low | Voltage - Isolation | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Operating Temperature | Current - DC Forward (If) (Max) | Supplier Device Package | Qualification | Voltage - Output Supply | Grade | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACFJ-3531T-500EAUTOMOTIVE OPTOCOUPLER, LF Broadcom Limited |
3,379 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 50kV/µs | 200ns, 200ns | 100ns | Surface Mount | 15ns, 15ns | 1.5A, 1.5A | 5000Vrms | 1.5A | 1.55V | -40°C ~ 125°C | 20 mA | 24-SOIC | AEC-Q100 | 17.4V ~ 19.2V | Automotive | CSA, IEC/EN/DIN, UR, VDE |
|
ACPL-31JT-500EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
2,100 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 50kV/µs | 250ns, 250ns | 100ns | Surface Mount | 60ns, 50ns | - | 5000Vrms | 2.5A | 1.55V | -40°C ~ 125°C | 20 mA | 16-SO | AEC-Q100 | 12V ~ 20V | Automotive | CSA, IEC/EN/DIN, UR |
.jpg)
|
HCNW3120OPTOISO 5KV 1CH GATE DVR 8DIP Broadcom Limited |
2,763 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 25kV/µs | 500ns, 500ns | 300ns | Through Hole | 100ns, 100ns | 2A, 2A | 5000Vrms | 2.5A | 1.6V | -40°C ~ 100°C | 25 mA | 8-DIP | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
HCNW3120#300OPTOISO 5KV 1CH GATE DVR 8DIP GW Broadcom Limited |
3,343 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 25kV/µs | 500ns, 500ns | 300ns | Surface Mount | 100ns, 100ns | 2A, 2A | 5000Vrms | 2.5A | 1.6V | -40°C ~ 100°C | 25 mA | 8-DIP Gull Wing | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
|
ACPL-335J-000EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
2,986 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 50kV/µs | 250ns, 250ns | 100ns | Surface Mount | 60ns, 50ns | - | 5000Vrms | 2.5A | 1.55V | -40°C ~ 105°C | 20 mA | 16-SO | - | 12V ~ 20V | - | CSA, IEC/EN/DIN, UR |
|

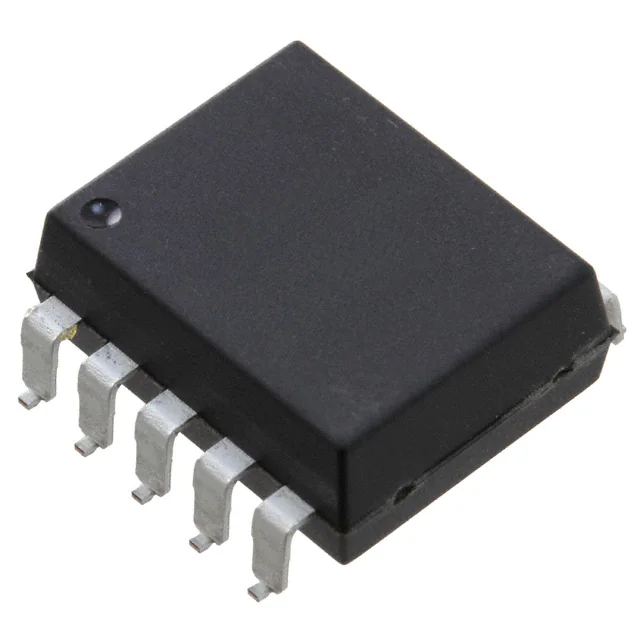

ACNV3130-300EOPTOISO 7.5KV 1CH GT DVR 10DIP Broadcom Limited |
3,573 |
|
Datasheet |
- | 10-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 40kV/µs | 500ns, 500ns | 300ns | Surface Mount | 100ns, 100ns | 2A, 2A | 7500Vrms | 2.5A | 1.6V | -40°C ~ 105°C | 25 mA | 10-DIP Gull Wing | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
|
ACNT-H343-500EOPTOISO 7.5KV 1CH GATE DVR 8SO Broadcom Limited |
3,845 |
|
Datasheet |
- | 8-SOIC (0.535", 13.60mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 100kV/µs | 150ns, 150ns | 80ns | Surface Mount | 26ns, 7.5ns | 4A, 4A | 7500Vrms | 5A, 5A | 1.5V | -40°C ~ 110°C | 25 mA | 8-SO Stretched | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
|
ACPL-302J-500EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
4,587 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 30kV/µs | 250ns, 250ns | 140ns | Surface Mount | 70ns, 35ns | 750mA, 1A | 5000Vrms | 2.5A | 1.55V | -40°C ~ 105°C | 20 mA | 16-SO | - | 18V ~ 22V | - | CSA, IEC/EN/DIN, UR |
|
|
ACPL-36JV-000EOPTOISO 3.75KV 1CH GATE DVR 16SO Broadcom Limited |
4,142 |
|
Datasheet |
R²Coupler™ | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 15kV/µs | 500ns, 500ns | 300ns | Surface Mount | 100ns, 100ns | 2A, 2A | 3750Vrms | 2.5A | - | -40°C ~ 105°C | - | 16-SO | AEC-Q100 | 15V ~ 30V | Automotive | - |
|
|
ACPL-3130-500EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
2,537 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 40kV/µs | 500ns, 500ns | 300ns | Surface Mount | 100ns, 100ns | 2A, 2A | 3750Vrms | 2.5A | 1.5V | -40°C ~ 100°C | 25 mA | 8-DIP Gull Wing | - | 15V ~ 30V | - | CSA, UR |
